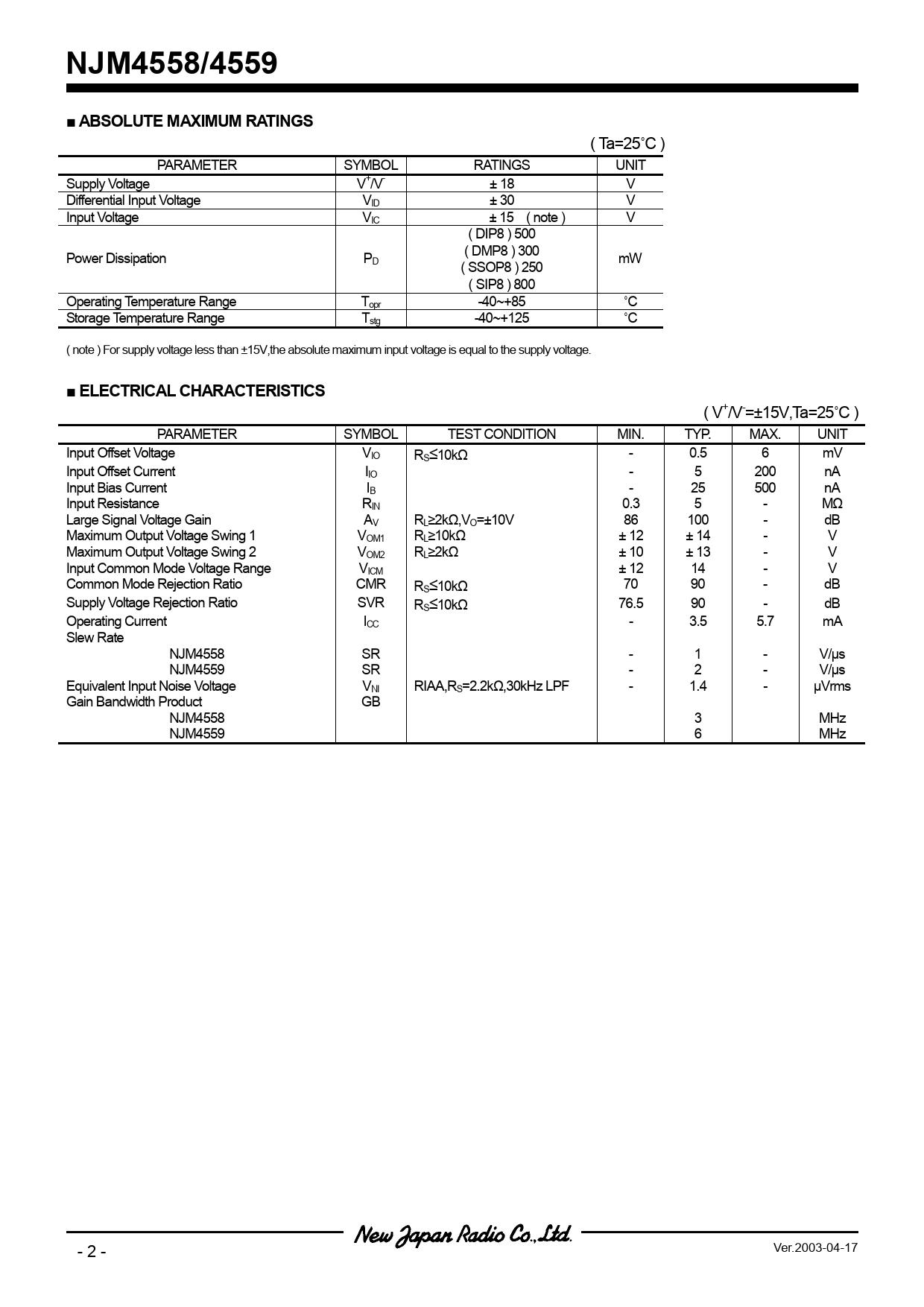

NJM4558/4559 ■ ABSOLUTE MAXIMUM RATINGS
( Ta=25˚C ) PARAMETER SYMBOL RATINGS UNIT Supply Voltage V+/V- ± 18 V Dif erential Input Voltage VID ± 30 V Input Voltage VIC ± 15 ( note ) V ( DIP8 ) 500 ( DMP8 ) 300 Power Dissipation PD mW ( SSOP8 ) 250 ( SIP8 ) 800 Operating Temperature Range Topr -40~+85 ˚C Storage Temperature Range Tstg -40~+125 ˚C ( note ) For supply voltage less than ±15V,the absolute maximum input voltage is equal to the supply voltage.
■ ELECTRICAL CHARACTERISTICS
( V+/V-=±15V,Ta=25˚C ) PARAMETER SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT Input Offset Voltage VIO RS≤10kΩ - 0.5 6 mV Input Offset Current IIO - 5 200 nA Input Bias Current IB - 25 500 nA Input Resistance RIN 0.3 5 - MΩ Large Signal Voltage Gain AV RL≥2kΩ,VO=±10V 86 100 - dB Maximum Output Voltage Swing 1 VOM1 RL≥10kΩ ± 12 ± 14 - V Maximum Output Voltage Swing 2 VOM2 RL≥2kΩ ± 10 ± 13 - V Input Common Mode Voltage Range VICM ± 12 14 - V Common Mode Rejection Ratio CMR RS≤10kΩ 70 90 - dB Supply Voltage Rejection Ratio SVR RS≤10kΩ 76.5 90 - dB Operating Current ICC - 3.5 5.7 mA Slew Rate NJM4558 SR - 1 - V/µs NJM4559 SR - 2 - V/µs Equivalent Input Noise Voltage VNI RIAA,RS=2.2kΩ,30kHz LPF - 1.4 - µVrms Gain Bandwidth Product GB NJM4558 3 MHz NJM4559 6 MHz - 2 - Ver.2003-04-17
