Datasheet NJM4558, NJM4559 (New Japan Radio)
| Fabricante | New Japan Radio |
| Descripción | Dual Operational Amplifier |
| Páginas / Página | 4 / 1 — NJM4558/4559. DUAL OPERATIONAL AMPLIFIER. ■ GENERAL DESCRIPTION ■ PACKAGE … |
| Formato / tamaño de archivo | PDF / 152 Kb |
| Idioma del documento | Inglés |
NJM4558/4559. DUAL OPERATIONAL AMPLIFIER. ■ GENERAL DESCRIPTION ■ PACKAGE OUTLINE. NJM4558D. NJM4558M. NJM4559D. NJM4559M. ■ FEATURES
Línea de modelo para esta hoja de datos
Versión de texto del documento

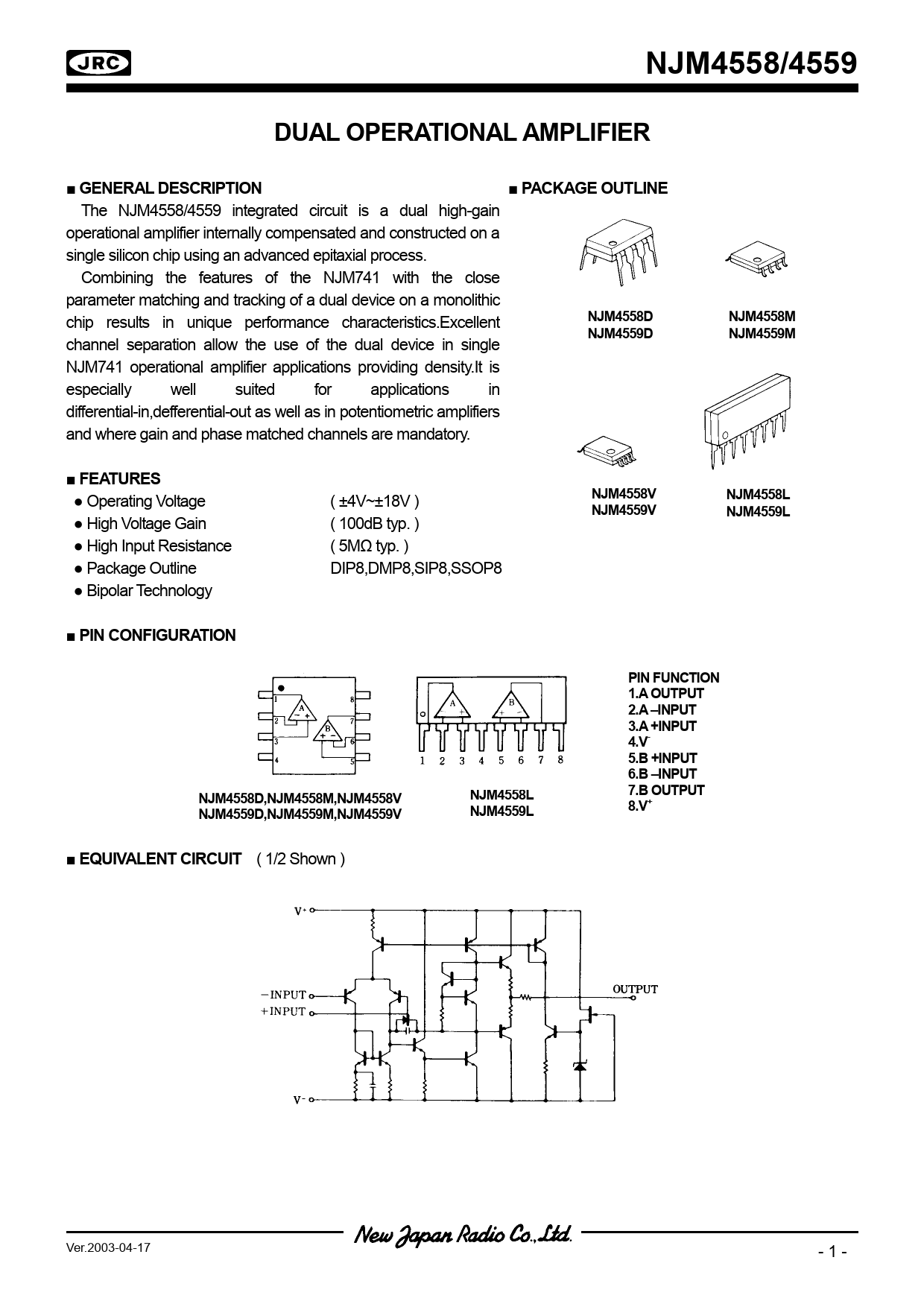

NJM4558/4559 DUAL OPERATIONAL AMPLIFIER ■ GENERAL DESCRIPTION ■ PACKAGE OUTLINE
The NJM4558/4559 integrated circuit is a dual high-gain operational amplifier internally compensated and constructed on a single silicon chip using an advanced epitaxial process. Combining the features of the NJM741 with the close parameter matching and tracking of a dual device on a monolithic chip results in unique performance characteristics.Excellent
NJM4558D NJM4558M NJM4559D NJM4559M
channel separation allow the use of the dual device in single NJM741 operational amplifier applications providing density.It is especially well suited for applications in differential-in,defferential-out as well as in potentiometric amplifiers and where gain and phase matched channels are mandatory.
■ FEATURES
● Operating Voltage ( ±4V~±18V )
NJM4558V NJM4558L NJM4559V NJM4559L
● High Voltage Gain ( 100dB typ. ) ● High Input Resistance ( 5MΩ typ. ) ● Package Outline DIP8,DMP8,SIP8,SSOP8 ● Bipolar Technology
■ PIN CONFIGURATION PIN FUNCTION 1.A OUTPUT 2.A –INPUT 3.A +INPUT 4.V- 5.B +INPUT 6.B –INPUT 7.B OUTPUT NJM4558D,NJM4558M,NJM4558V NJM4558L 8.V+ NJM4559D,NJM4559M,NJM4559V NJM4559L ■ EQUIVALENT CIRCUIT
( 1/2 Shown ) Ver.2003-04-17 - 1 -
