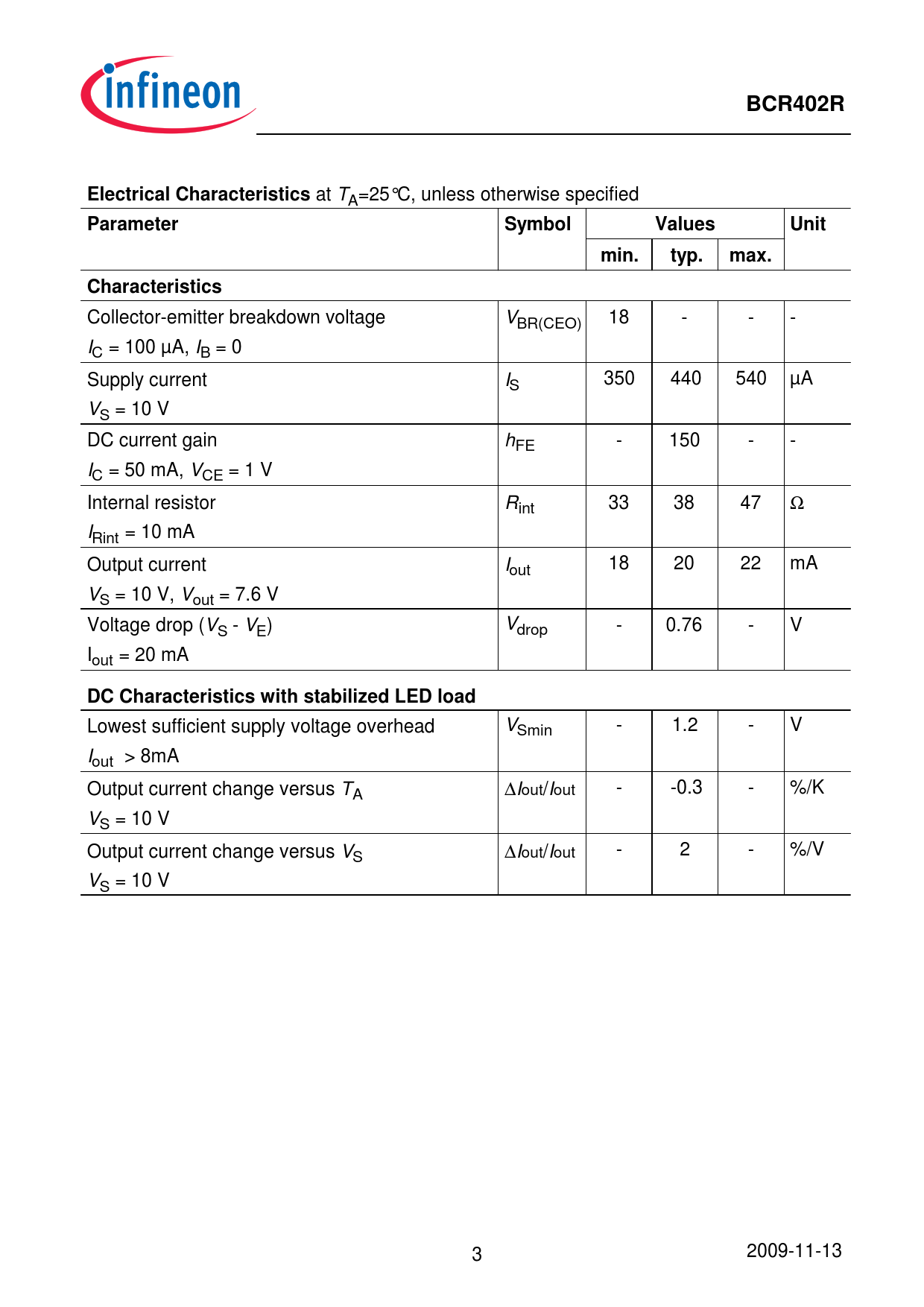

BCR402R. Electrical Characteristics. Parameter. Symbol. Values. Unit. min. typ. max. Characteristics
Línea de modelo para esta hoja de datos
Versión de texto del documento
BCR402R Electrical Characteristics
at TA=25°C, unless otherwise specified
Parameter Symbol Values Unit min. typ. max. Characteristics
Collector-emitter breakdown voltage VBR(CEO) 18 - - - IC = 100 µA, IB = 0 Supply current IS 350 440 540 µA VS = 10 V DC current gain hFE - 150 - - IC = 50 mA, VCE = 1 V Internal resistor Rint 33 38 47 Ω IRint = 10 mA Output current Iout 18 20 22 mA VS = 10 V, Vout = 7.6 V Voltage drop (VS - VE) Vdrop - 0.76 - V Iout = 20 mA
DC Characteristics with stabilized LED load
Lowest sufficient supply voltage overhead VSmin - 1.2 - V Iout > 8mA Output current change versus T ∆ A Iout/Iout - -0.3 - %/K VS = 10 V Output current change versus V ∆ S Iout/Iout - 2 - %/V VS = 10 V 2009-11-13 3
at TA=25°C, unless otherwise specified
Parameter Symbol Values Unit min. typ. max. Characteristics
Collector-emitter breakdown voltage VBR(CEO) 18 - - - IC = 100 µA, IB = 0 Supply current IS 350 440 540 µA VS = 10 V DC current gain hFE - 150 - - IC = 50 mA, VCE = 1 V Internal resistor Rint 33 38 47 Ω IRint = 10 mA Output current Iout 18 20 22 mA VS = 10 V, Vout = 7.6 V Voltage drop (VS - VE) Vdrop - 0.76 - V Iout = 20 mA
DC Characteristics with stabilized LED load
Lowest sufficient supply voltage overhead VSmin - 1.2 - V Iout > 8mA Output current change versus T ∆ A Iout/Iout - -0.3 - %/K VS = 10 V Output current change versus V ∆ S Iout/Iout - 2 - %/V VS = 10 V 2009-11-13 3
