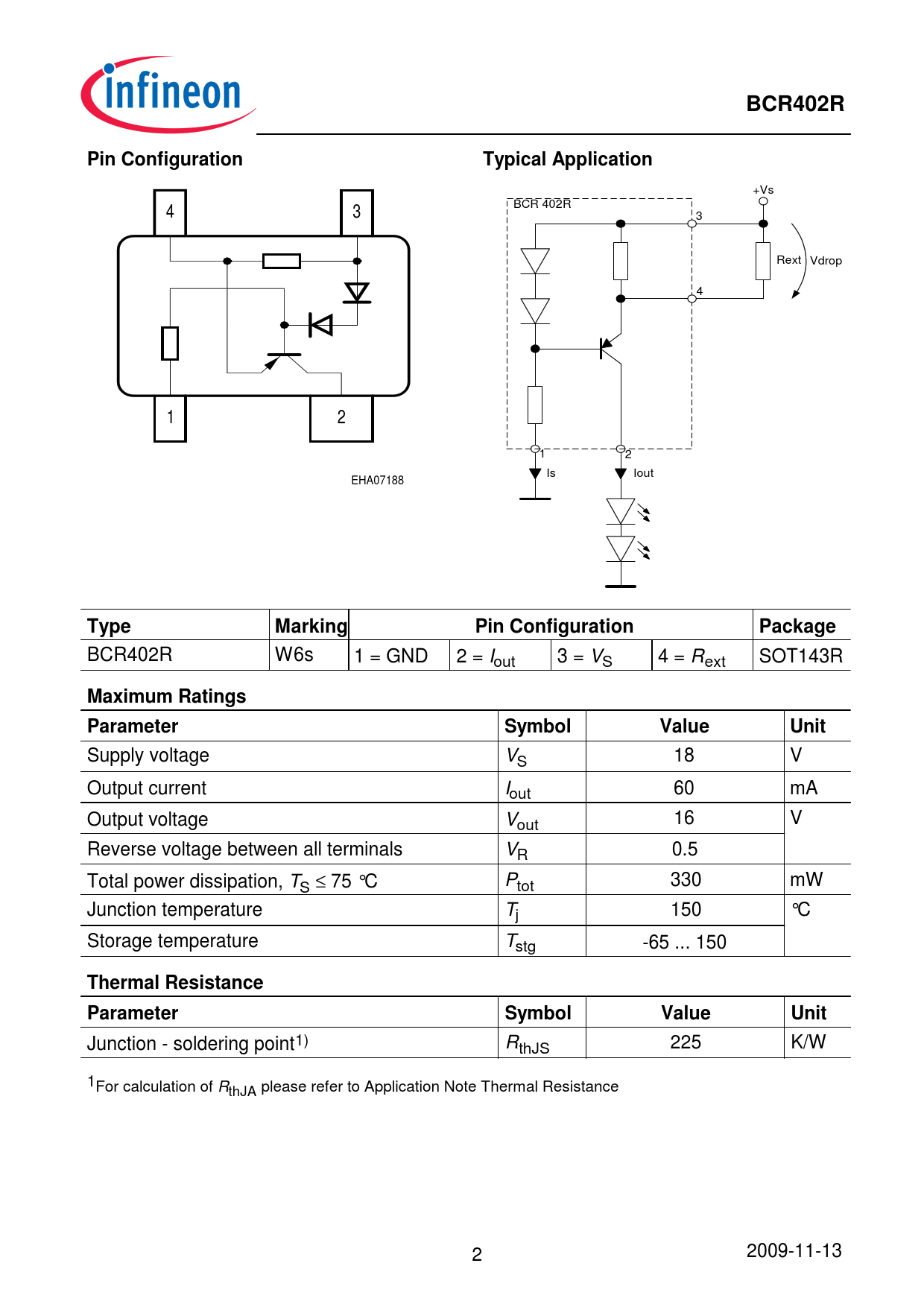

BCR402R Pin Configuration Typical Application
+Vs BCR 402R 4 3 3 Rext Vdrop 4 1 2 1 2 Is Iout EHA07188
Type Marking Pin Configuration Package
BCR402R W6s 1 = GND 2 = Iout 3 = VS 4 = Rext SOT143R
Maximum Ratings Parameter Symbol Value Unit
Supply voltage VS 18 V Output current Iout 60 mA Output voltage Vout 16 V Reverse voltage between all terminals VR 0.5 Total power dissipation, TS ≤ 75 °C Ptot 330 mW Junction temperature Tj 150 °C Storage temperature Tstg -65 ... 150
Thermal Resistance Parameter Symbol Value Unit
Junction - soldering point1) RthJS 225 K/W 1For calculation of RthJA please refer to Application Note Thermal Resistance 2009-11-13 2
+Vs BCR 402R 4 3 3 Rext Vdrop 4 1 2 1 2 Is Iout EHA07188
Type Marking Pin Configuration Package
BCR402R W6s 1 = GND 2 = Iout 3 = VS 4 = Rext SOT143R
Maximum Ratings Parameter Symbol Value Unit
Supply voltage VS 18 V Output current Iout 60 mA Output voltage Vout 16 V Reverse voltage between all terminals VR 0.5 Total power dissipation, TS ≤ 75 °C Ptot 330 mW Junction temperature Tj 150 °C Storage temperature Tstg -65 ... 150
Thermal Resistance Parameter Symbol Value Unit
Junction - soldering point1) RthJS 225 K/W 1For calculation of RthJA please refer to Application Note Thermal Resistance 2009-11-13 2
