| Fabricante | ON Semiconductor |
| Descripción | Ambient Light Sensor with Dark Current Compensation |
| Páginas / Página | 9 / 6 — NOA1212. TYPICAL CHARACTERISTICS. Figure 15. Output Current at 100 lux … |
| Formato / tamaño de archivo | PDF / 171 Kb |
| Idioma del documento | Inglés |

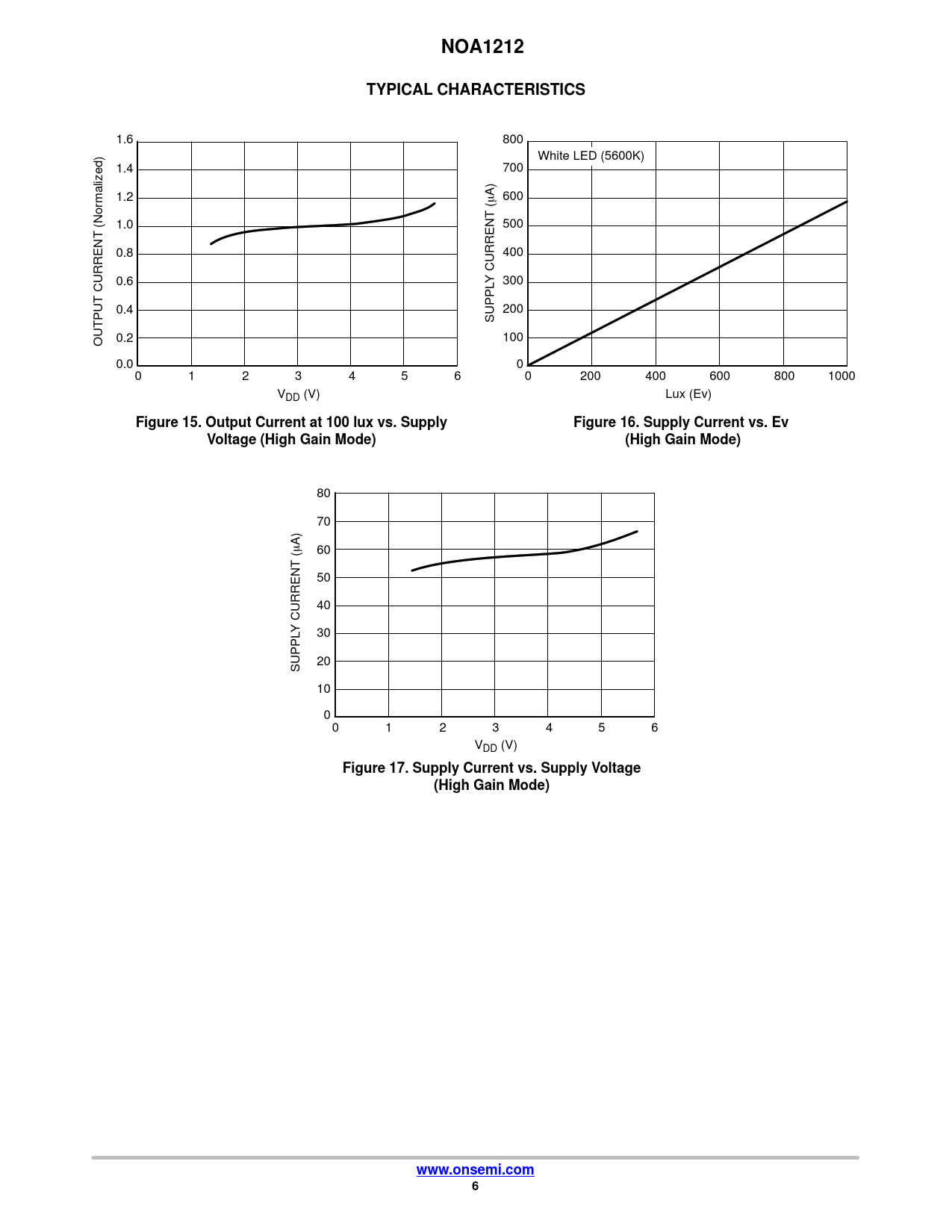

NOA1212. TYPICAL CHARACTERISTICS. Figure 15. Output Current at 100 lux vs. Supply. Figure 16. Supply Current vs. Ev
Línea de modelo para esta hoja de datos
Versión de texto del documento
NOA1212 TYPICAL CHARACTERISTICS
1.6 800 White LED (5600K) 1.4 700 1.2 mA) 600 1.0 500 0.8 400 0.6 Y CURRENT ( 300 0.4 200 SUPPL OUTPUT CURRENT (Normalized) 0.2 100 0.0 0 0 1 2 3 4 5 6 0 200 400 600 800 1000 VDD (V) Lux (Ev)
Figure 15. Output Current at 100 lux vs. Supply Figure 16. Supply Current vs. Ev Voltage (High Gain Mode) (High Gain Mode)
80 70 mA) 60 50 40 Y CURRENT ( 30 20 SUPPL 10 0 0 1 2 3 4 5 6 VDD (V)
Figure 17. Supply Current vs. Supply Voltage (High Gain Mode) www.onsemi.com 6
