Datasheet STLQ015 (STMicroelectronics) - 7
| Fabricante | STMicroelectronics |
| Descripción | 150 mA, ultra low quiescent current linear voltage regulator |
| Páginas / Página | 19 / 7 — STLQ015. Electrical characteristics. Symbol. Parameter. Test conditions. … |
| Formato / tamaño de archivo | PDF / 528 Kb |
| Idioma del documento | Inglés |

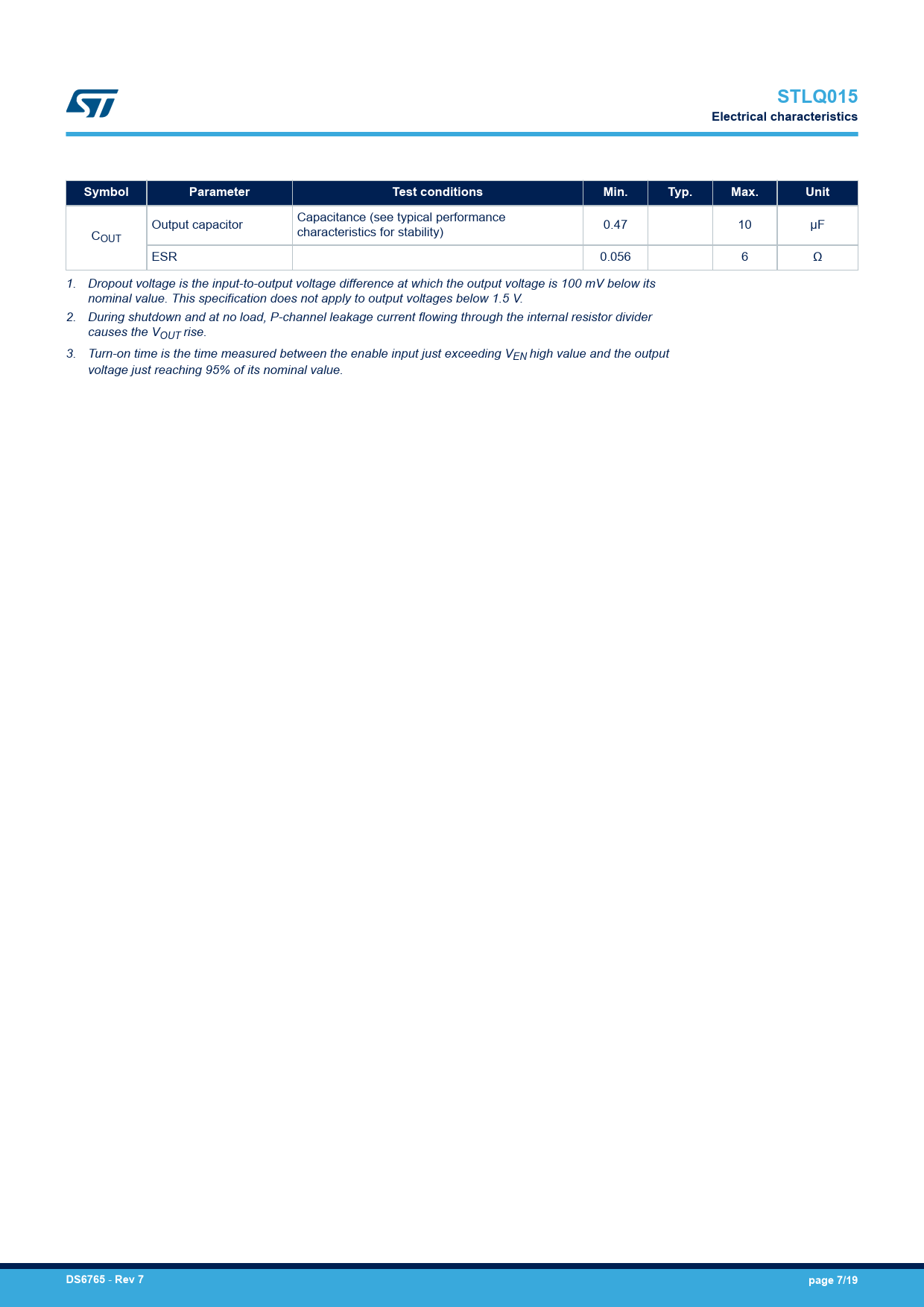

STLQ015. Electrical characteristics. Symbol. Parameter. Test conditions. Min. Typ. Max. Unit. DS6765. Rev 7. page 7/19
Línea de modelo para esta hoja de datos
Versión de texto del documento
STLQ015 Electrical characteristics Symbol Parameter Test conditions Min. Typ. Max. Unit
Capacitance (see typical performance Output capacitor 0.47 10 µF C characteristics for stability) OUT ESR 0.056 6 Ω 1. Dropout voltage is the input-to-output voltage difference at which the output voltage is 100 mV below its nominal value. This specification does not apply to output voltages below 1.5 V. 2. During shutdown and at no load, P-channel leakage current flowing through the internal resistor divider causes the VOUT rise. 3. Turn-on time is the time measured between the enable input just exceeding VEN high value and the output voltage just reaching 95% of its nominal value.
