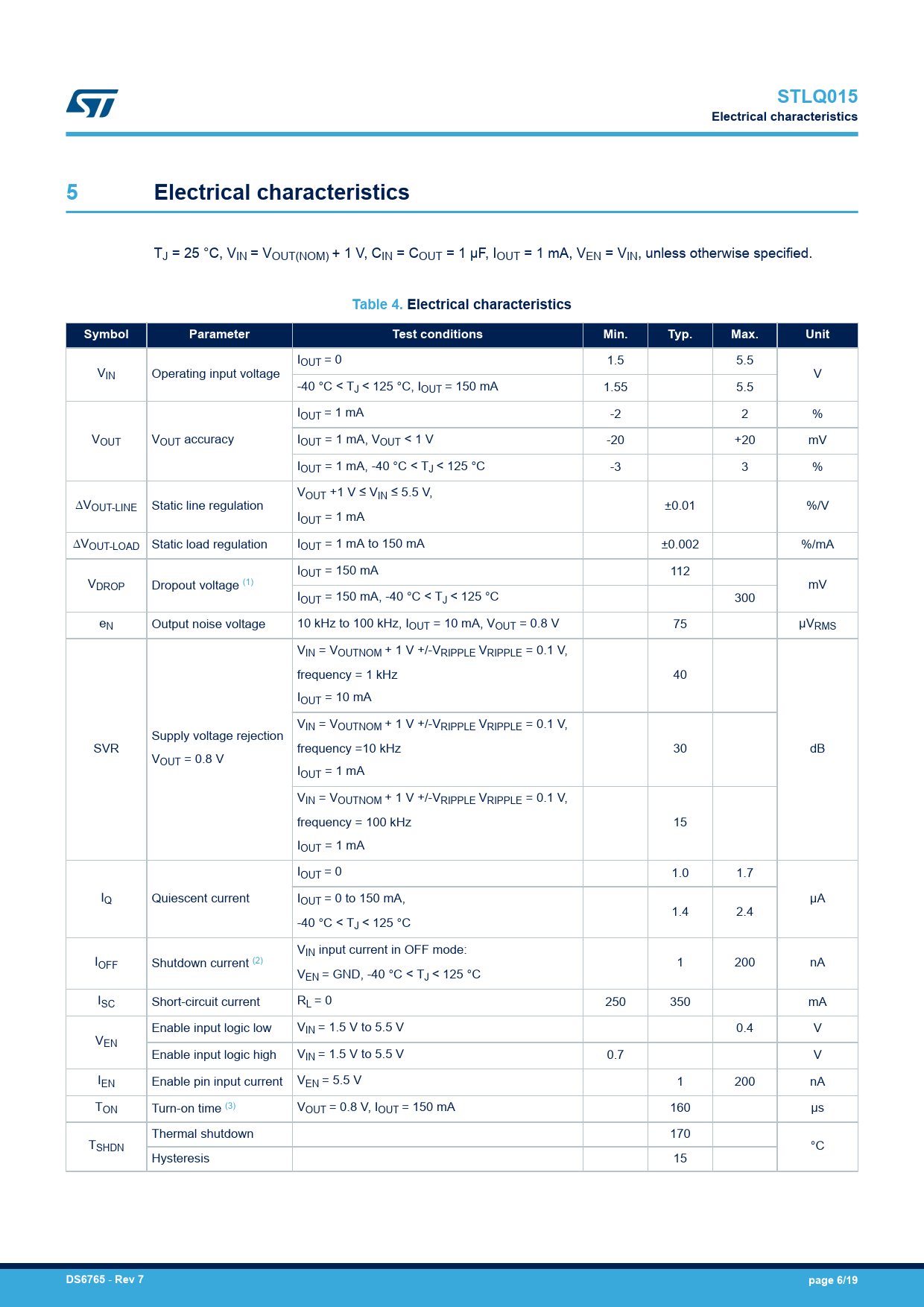

STLQ015 Electrical characteristics 5 Electrical characteristics
TJ = 25 °C, VIN = VOUT(NOM) + 1 V, CIN = COUT = 1 µF, IOUT = 1 mA, VEN = VIN, unless otherwise specified.
Table 4. Electrical characteristics Symbol Parameter Test conditions Min. Typ. Max. Unit
IOUT = 0 1.5 5.5 VIN Operating input voltage V -40 °C < TJ < 125 °C, IOUT = 150 mA 1.55 5.5 IOUT = 1 mA -2 2 % VOUT VOUT accuracy IOUT = 1 mA, VOUT < 1 V -20 +20 mV IOUT = 1 mA, -40 °C < TJ < 125 °C -3 3 % VOUT +1 V ≤ VIN ≤ 5.5 V, ∆VOUT-LINE Static line regulation ±0.01 %/V IOUT = 1 mA ∆VOUT-LOAD Static load regulation IOUT = 1 mA to 150 mA ±0.002 %/mA IOUT = 150 mA 112 VDROP Dropout voltage (1) mV IOUT = 150 mA, -40 °C < TJ < 125 °C 300 eN Output noise voltage 10 kHz to 100 kHz, IOUT = 10 mA, VOUT = 0.8 V 75 µVRMS VIN = VOUTNOM + 1 V +/-VRIPPLE VRIPPLE = 0.1 V, frequency = 1 kHz 40 IOUT = 10 mA VIN = VOUTNOM + 1 V +/-VRIPPLE VRIPPLE = 0.1 V, Supply voltage rejection SVR frequency =10 kHz 30 dB VOUT = 0.8 V IOUT = 1 mA VIN = VOUTNOM + 1 V +/-VRIPPLE VRIPPLE = 0.1 V, frequency = 100 kHz 15 IOUT = 1 mA IOUT = 0 1.0 1.7 IQ Quiescent current IOUT = 0 to 150 mA, µA 1.4 2.4 -40 °C < TJ < 125 °C VIN input current in OFF mode: IOFF Shutdown current (2) 1 200 nA VEN = GND, -40 °C < TJ < 125 °C ISC Short-circuit current RL = 0 250 350 mA Enable input logic low VIN = 1.5 V to 5.5 V 0.4 V VEN Enable input logic high VIN = 1.5 V to 5.5 V 0.7 V IEN Enable pin input current VEN = 5.5 V 1 200 nA TON Turn-on time (3) VOUT = 0.8 V, IOUT = 150 mA 160 µs Thermal shutdown 170 TSHDN °C Hysteresis 15
