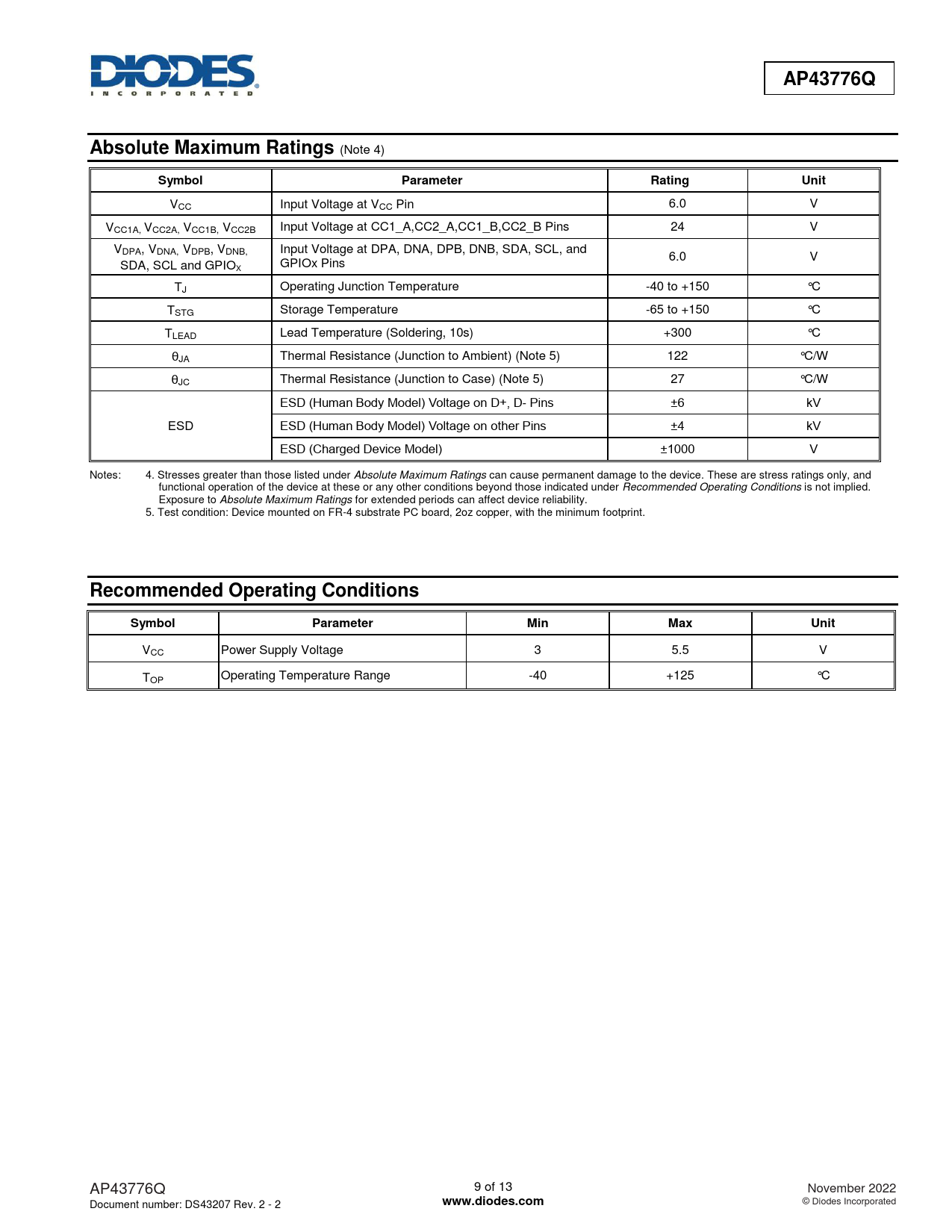

AP43776Q Absolute Maximum Ratings
(Note 4)
Symbol Parameter Rating Unit
VCC Input Voltage at VCC Pin 6.0 V VCC1A, VCC2A, VCC1B, VCC2B Input Voltage at CC1_A,CC2_A,CC1_B,CC2_B Pins 24 V VDPA, VDNA, VDPB, VDNB, Input Voltage at DPA, DNA, DPB, DNB, SDA, SCL, and 6.0 V SDA, SCL and GPIO GPIOx Pins X TJ Operating Junction Temperature -40 to +150 °C TSTG Storage Temperature -65 to +150 °C TLEAD Lead Temperature (Soldering, 10s) +300 °C θJA Thermal Resistance (Junction to Ambient) (Note 5) 122 °C/W θJC Thermal Resistance (Junction to Case) (Note 5) 27 °C/W ESD (Human Body Model) Voltage on D+, D- Pins ±6 kV ESD ESD (Human Body Model) Voltage on other Pins ±4 kV ESD (Charged Device Model) ±1000 V Notes: 4. Stresses greater than those listed under Absolute Maximum Ratings can cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to Absolute Maximum Ratings for extended periods can affect device reliability. 5. Test condition: Device mounted on FR-4 substrate PC board, 2oz copper, with the minimum footprint.
Recommended Operating Conditions Symbol Parameter Min Max Unit
VCC Power Supply Voltage 3 5.5 V TOP Operating Temperature Range -40 +125 °C AP43776Q 9 of 13 November 2022 Document number: DS43207 Rev. 2 - 2
