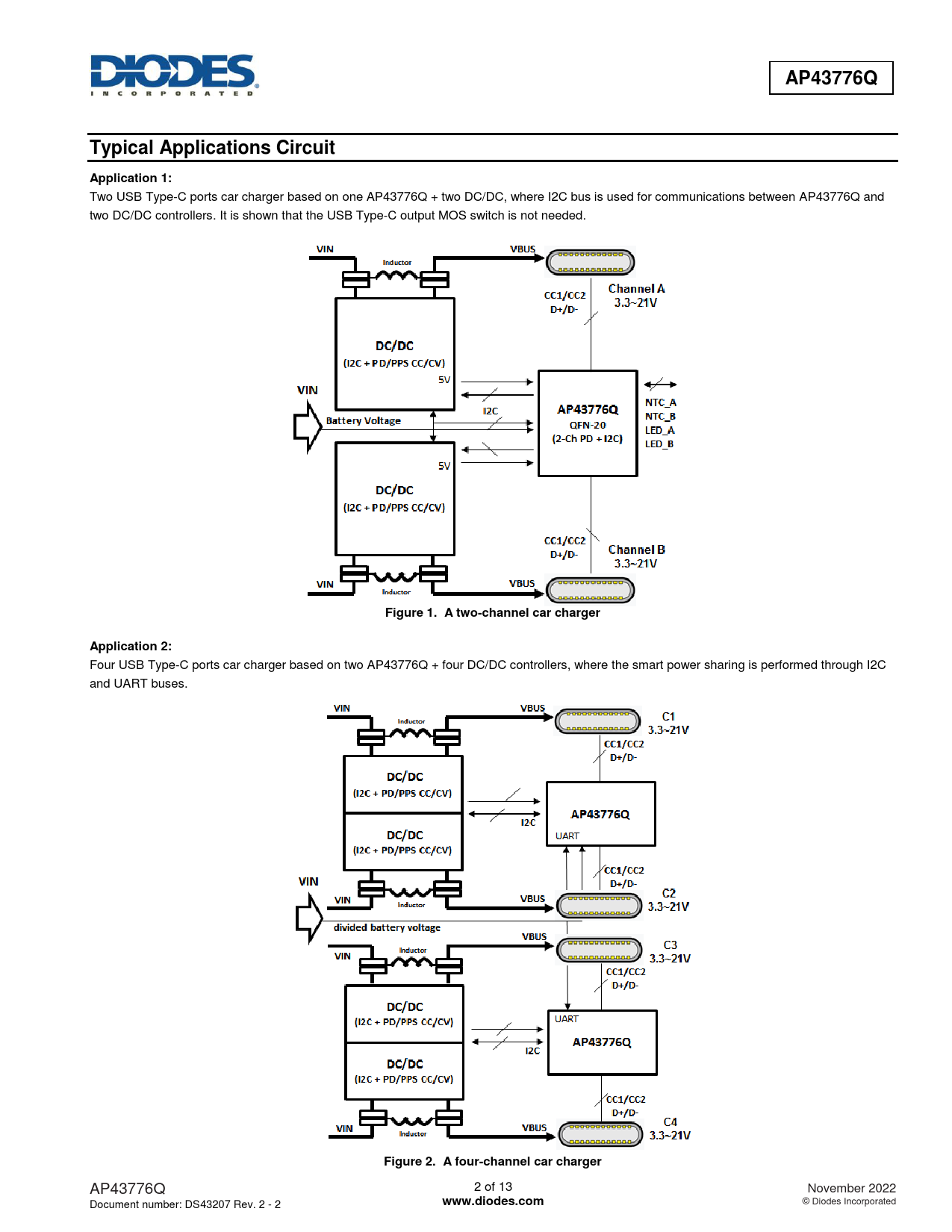

AP43776Q. Typical Applications Circuit. Application 1:. Figure 1. A two-channel car charger. Application 2:
Línea de modelo para esta hoja de datos
Versión de texto del documento
AP43776Q Typical Applications Circuit Application 1:
Two USB Type-C ports car charger based on one AP43776Q + two DC/DC, where I2C bus is used for communications between AP43776Q and two DC/DC controllers. It is shown that the USB Type-C output MOS switch is not needed.
Figure 1. A two-channel car charger Application 2:
Four USB Type-C ports car charger based on two AP43776Q + four DC/DC controllers, where the smart power sharing is performed through I2C and UART buses.
Figure 2. A four-channel car charger
AP43776Q 2 of 13 November 2022 Document number: DS43207 Rev. 2 - 2
