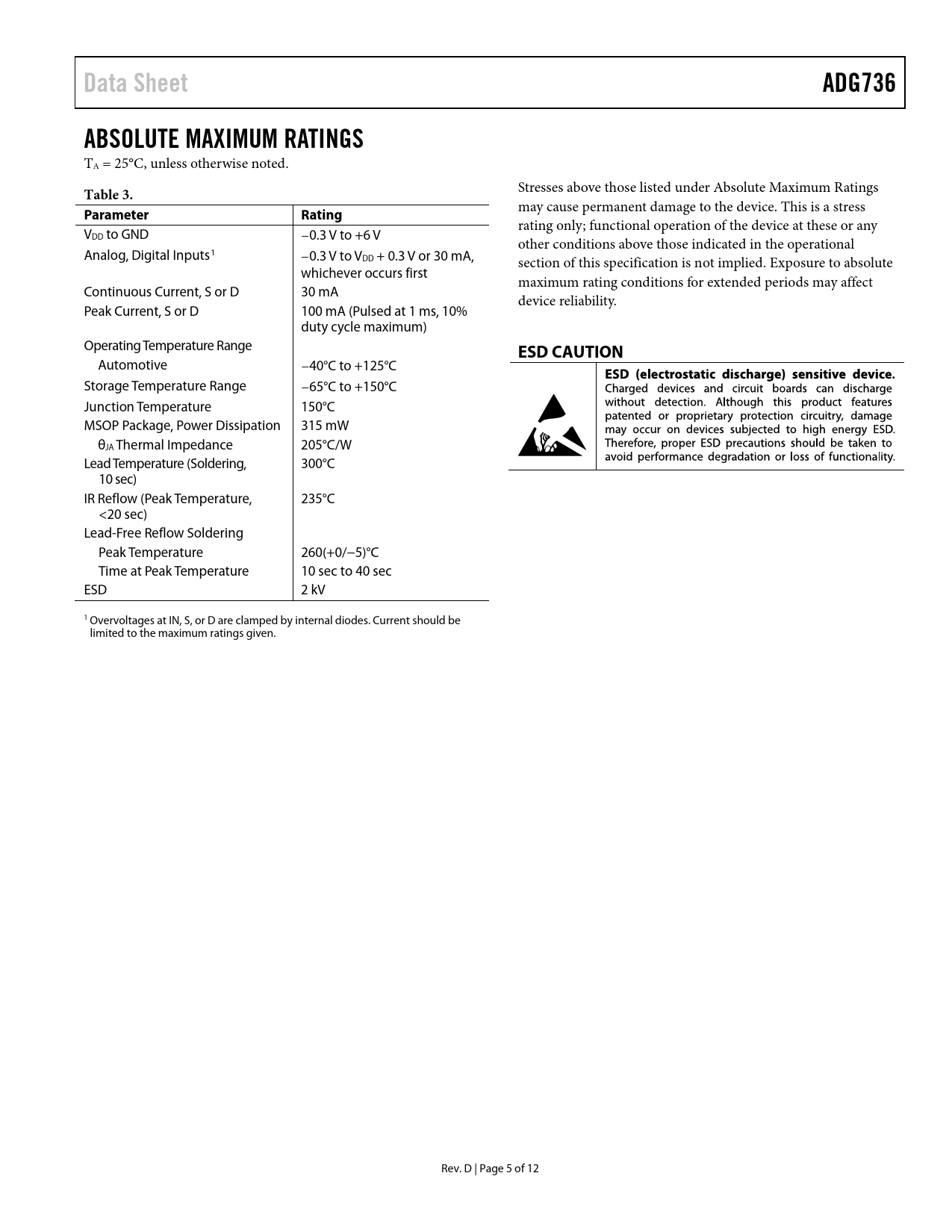

Data Sheet ADG736 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any VDD to GND −0.3 V to +6 V other conditions above those indicated in the operational Analog, Digital Inputs1 −0.3 V to VDD + 0.3 V or 30 mA, section of this specification is not implied. Exposure to absolute whichever occurs first maximum rating conditions for extended periods may affect Continuous Current, S or D 30 mA device reliability. Peak Current, S or D 100 mA (Pulsed at 1 ms, 10% duty cycle maximum) Operating Temperature Range
ESD CAUTION
Automotive −40°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C MSOP Package, Power Dissipation 315 mW θJA Thermal Impedance 205°C/W Lead Temperature (Soldering, 300°C 10 sec) IR Reflow (Peak Temperature, 235°C <20 sec) Lead-Free Reflow Soldering Peak Temperature 260(+0/−5)°C Time at Peak Temperature 10 sec to 40 sec ESD 2 kV 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. D | Page 5 of 12 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Applications Information Outline Dimensions Ordering Guide Automotive Products
