Datasheet ADG736 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | CMOS Low Voltage 2.5 Ω Dual SPDT Switch |
| Páginas / Página | 12 / 1 — CMOS Low Voltage. 2.5 Ω Dual SPDT Switch. Data Sheet. ADG736. FEATURES. … |
| Formato / tamaño de archivo | PDF / 249 Kb |
| Idioma del documento | Inglés |
CMOS Low Voltage. 2.5 Ω Dual SPDT Switch. Data Sheet. ADG736. FEATURES. FUNCTIONAL BLOCK DIAGRAM. 1.8 V to 5.5 V single supply
Línea de modelo para esta hoja de datos
Versión de texto del documento

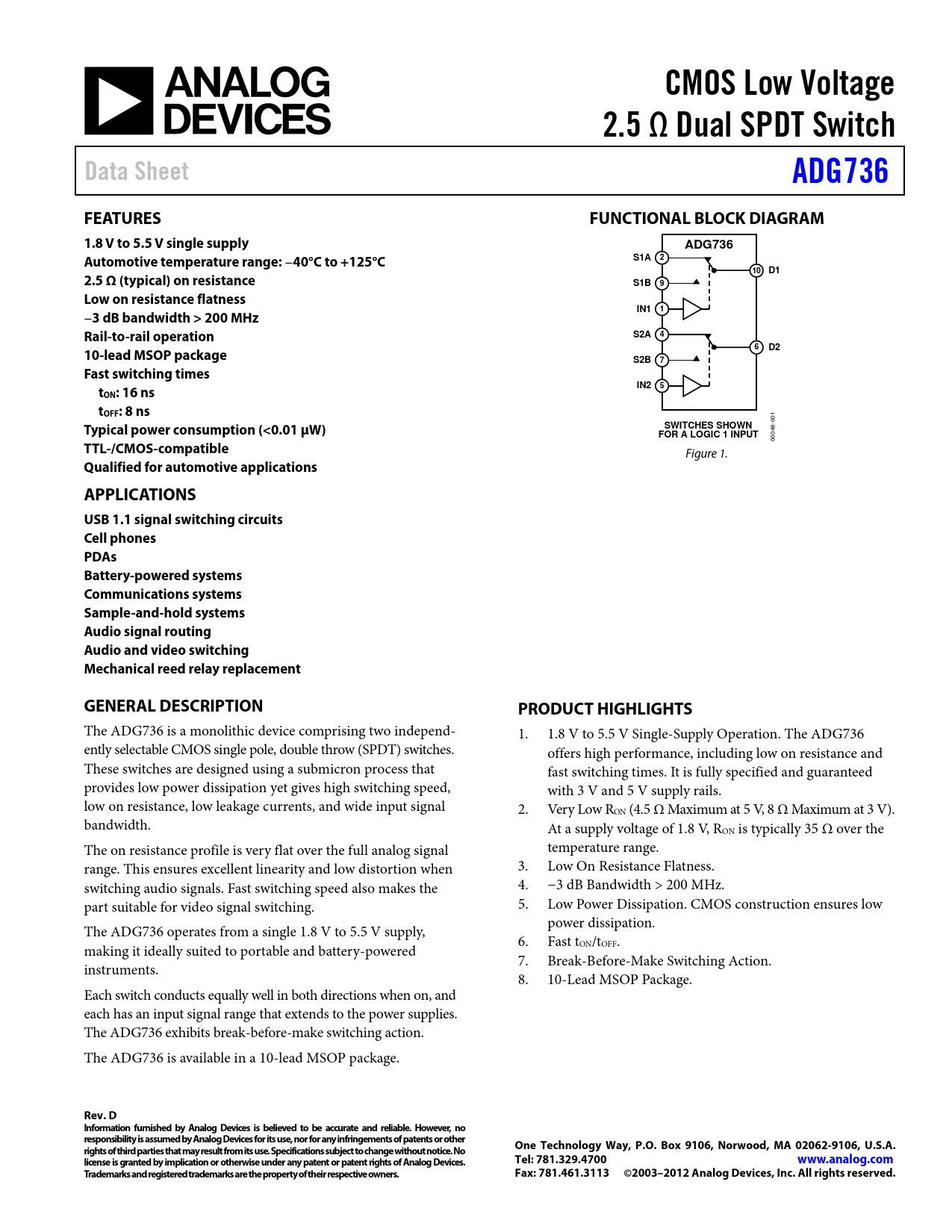

CMOS Low Voltage 2.5 Ω Dual SPDT Switch Data Sheet ADG736 FEATURES FUNCTIONAL BLOCK DIAGRAM 1.8 V to 5.5 V single supply ADG736 Automotive temperature range: −40°C to +125°C S1A 2 10 D1 2.5 Ω (typical) on resistance S1B 9 Low on resistance flatness IN1 1 −3 dB bandwidth > 200 MHz Rail-to-rail operation S2A 4 6 D2 10-lead MSOP package S2B 7 Fast switching times IN2 5 tON: 16 ns tOFF: 8 ns
1 -00
Typical power consumption (<0.01 μW) SWITCHES SHOWN
046
FOR A LOGIC 1 INPUT
00
TTL-/CMOS-compatible
Figure 1.
Qualified for automotive applications APPLICATIONS USB 1.1 signal switching circuits Cell phones PDAs Battery-powered systems Communications systems Sample-and-hold systems Audio signal routing Audio and video switching Mechanical reed relay replacement GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG736 is a monolithic device comprising two independ- 1. 1.8 V to 5.5 V Single-Supply Operation. The ADG736 ently selectable CMOS single pole, double throw (SPDT) switches. offers high performance, including low on resistance and These switches are designed using a submicron process that fast switching times. It is fully specified and guaranteed provides low power dissipation yet gives high switching speed, with 3 V and 5 V supply rails. low on resistance, low leakage currents, and wide input signal 2. Very Low RON (4.5 Ω Maximum at 5 V, 8 Ω Maximum at 3 V). bandwidth. At a supply voltage of 1.8 V, RON is typically 35 Ω over the The on resistance profile is very flat over the full analog signal temperature range. range. This ensures excellent linearity and low distortion when 3. Low On Resistance Flatness. switching audio signals. Fast switching speed also makes the 4. −3 dB Bandwidth > 200 MHz. part suitable for video signal switching. 5. Low Power Dissipation. CMOS construction ensures low power dissipation. The ADG736 operates from a single 1.8 V to 5.5 V supply, 6. Fast t making it ideally suited to portable and battery-powered ON/tOFF. 7. Break-Before-Make Switching Action. instruments. 8. 10-Lead MSOP Package. Each switch conducts equally well in both directions when on, and each has an input signal range that extends to the power supplies. The ADG736 exhibits break-before-make switching action. The ADG736 is available in a 10-lead MSOP package.
Rev. D Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2003–2012 Analog Devices, Inc. All rights reserved.
Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Applications Information Outline Dimensions Ordering Guide Automotive Products
