Datasheet BAV99 (Nexperia) - 6
| Fabricante | Nexperia |
| Descripción | High-speed switching diode |
| Páginas / Página | 10 / 6 — Nexperia. BAV99. High-speed switching diode. 12. Package outline. Fig. 7. … |
| Revisión | 01072022 |
| Formato / tamaño de archivo | PDF / 203 Kb |
| Idioma del documento | Inglés |

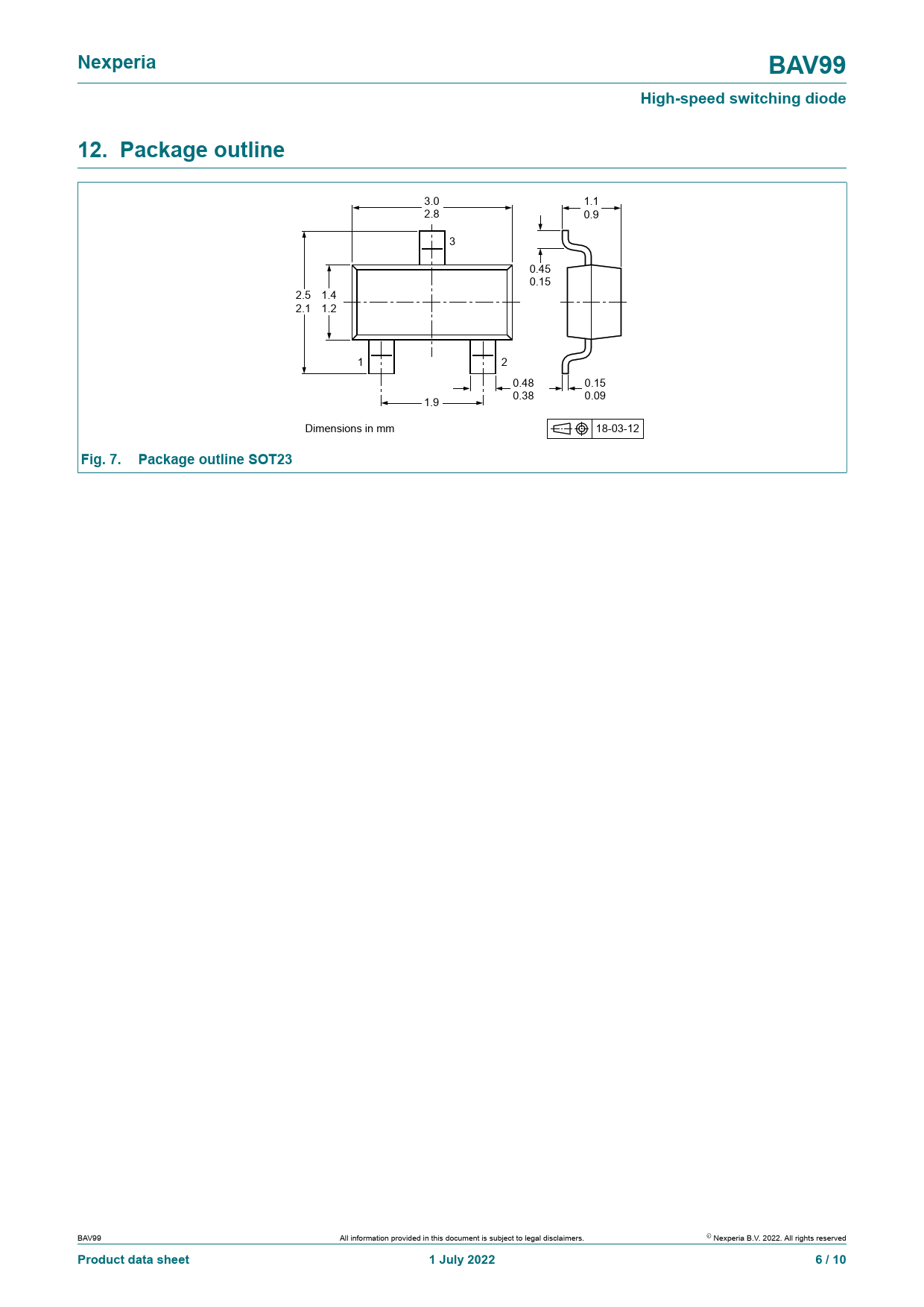

Nexperia. BAV99. High-speed switching diode. 12. Package outline. Fig. 7. Package outline SOT23. Product data sheet. 1 July 2022
Línea de modelo para esta hoja de datos
Versión de texto del documento
Nexperia BAV99 High-speed switching diode 12. Package outline
3.0 1.1 2.8 0.9 3 0.45 0.15 2.5 1.4 2.1 1.2 1 2 0.48 0.15 1.9 0.38 0.09 Dimensions in mm 18-03-12
Fig. 7. Package outline SOT23
