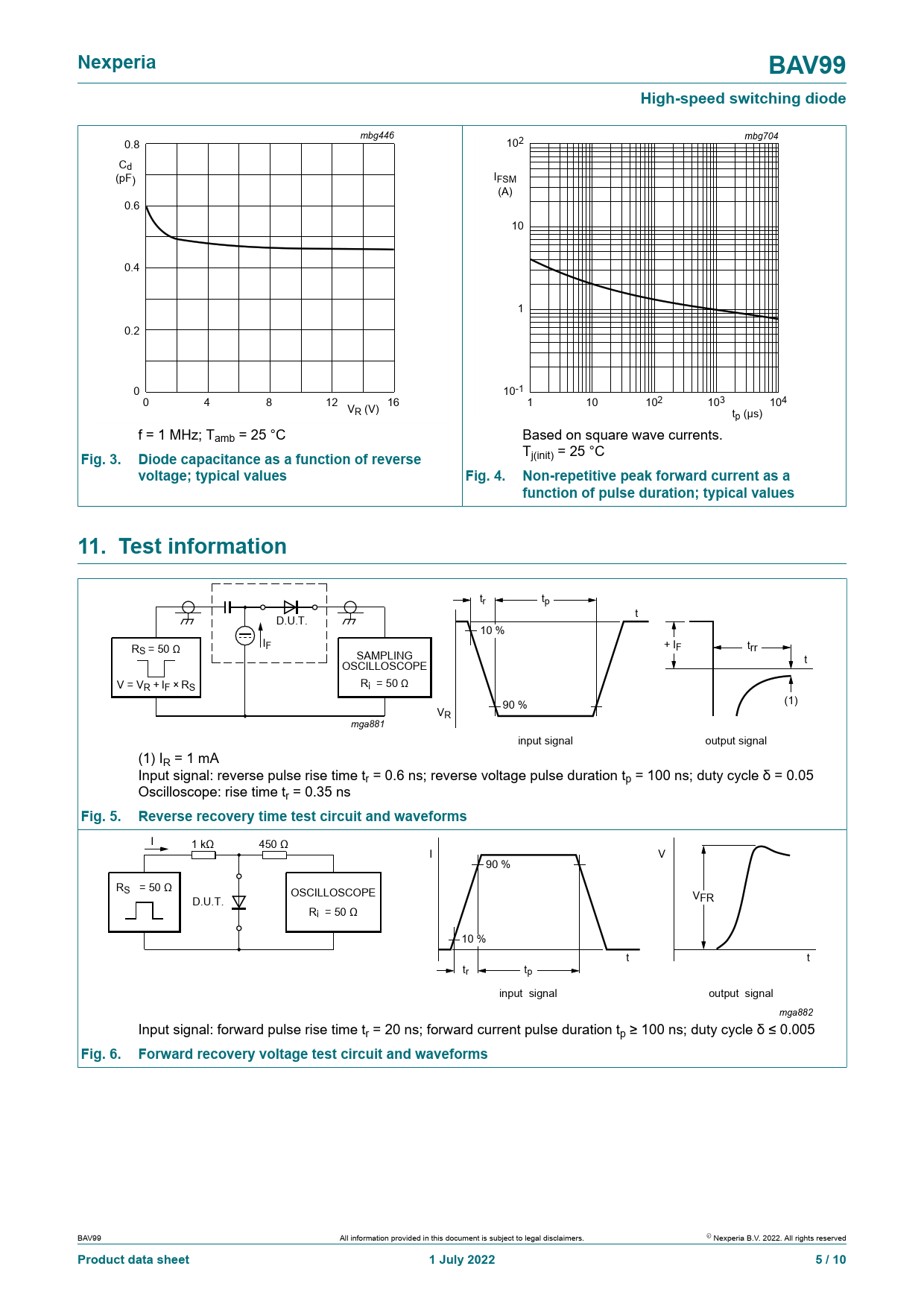

Nexperia. BAV99. High-speed switching diode. Fig. 3. Diode capacitance as a function of reverse. voltage; typical values
Línea de modelo para esta hoja de datos
Versión de texto del documento
Nexperia BAV99 High-speed switching diode
mbg446 mbg704 0.8 102 Cd (pF) IFSM (A) 0.6 10 0.4 1 0.2 0 10-1 0 4 8 12 16 V 1 104 103 10 102 R (V) tp (µs) f = 1 MHz; Tamb = 25 °C Based on square wave currents.
Fig. 3. Diode capacitance as a function of reverse
Tj(init) = 25 °C
voltage; typical values Fig. 4. Non-repetitive peak forward current as a function of pulse duration; typical values 11. Test information
tr tp t D.U.T. 10 % + I R F trr S = 50 Ω IF SAMPLING t OSCILLOSCOPE V = VR + IF × RS Ri = 50 Ω (1) 90 % VR mga881 input signal output signal (1) IR = 1 mA Input signal: reverse pulse rise time tr = 0.6 ns; reverse voltage pulse duration tp = 100 ns; duty cycle δ = 0.05 Oscilloscope: rise time tr = 0.35 ns
Fig. 5. Reverse recovery time test circuit and waveforms
I 1 kΩ 450 Ω I V 90 % RS = 50 Ω OSCILLOSCOPE D.U.T. VFR Ri = 50 Ω 10 % t t tr tp input signal output signal mga882 Input signal: forward pulse rise time tr = 20 ns; forward current pulse duration tp ≥ 100 ns; duty cycle δ ≤ 0.005
Fig. 6. Forward recovery voltage test circuit and waveforms
BAV99 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet 1 July 2022 5 / 10
