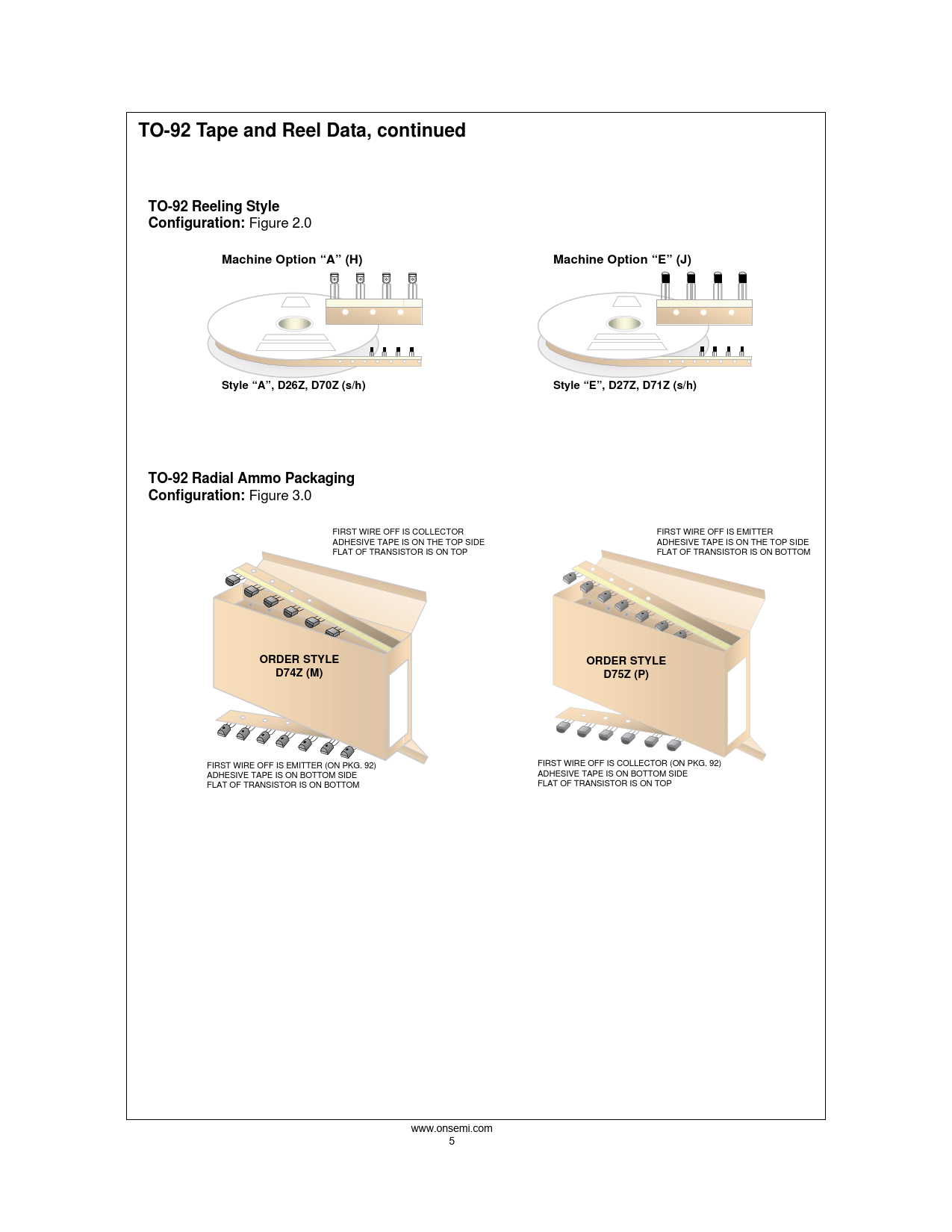

TO-92 Tape and Reel Data, continued. TO-92 Reeling Style Configuration:. Machine Option “A” (H). Machine Option “E” (J)
Línea de modelo para esta hoja de datos
Versión de texto del documento
TO-92 Tape and Reel Data, continued TO-92 Reeling Style Configuration:
Figure 2.0
Machine Option “A” (H) Machine Option “E” (J) Style “A”, D26Z, D70Z (s/h) Style “E”, D27Z, D71Z (s/h) TO-92 Radial Ammo Packaging Configuration:
Figure 3.0 FIRST WIRE OFF IS COLLECTOR FIRST WIRE OFF IS EMITTER ADHESIVE TAPE IS ON THE TOP SIDE ADHESIVE TAPE IS ON THE TOP SIDE FLAT OF TRANSISTOR IS ON TOP FLAT OF TRANSISTOR IS ON BOTTOM
ORDER STYLE ORDER STYLE D74Z (M) D75Z (P)
FIRST WIRE OFF IS EMITTER (ON PKG. 92) FIRST WIRE OFF IS COLLECTOR (ON PKG. 92) ADHESIVE TAPE IS ON BOTTOM SIDE ADHESIVE TAPE IS ON BOTTOM SIDE FLAT OF TRANSISTOR IS ON BOTTOM FLAT OF TRANSISTOR IS ON TOP www.onsemi.com 5
