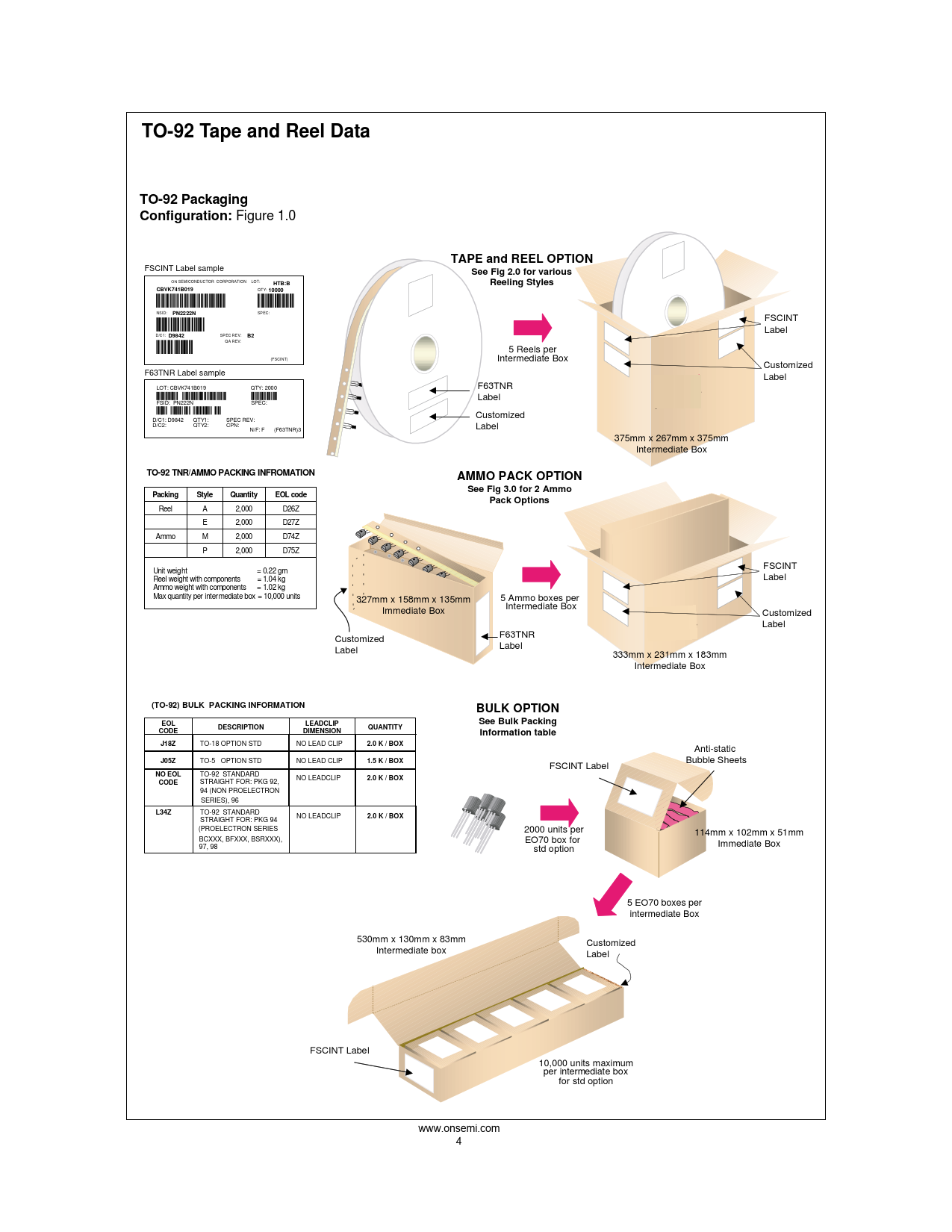

TO-92 Tape and Reel Data TO-92 Packaging Configuration:
Figure 1.0
TAPE and REEL OPTION
FSCINT Label sample
See Fig 2.0 for various
ON SEMICONDUCTOR CORPORATION LOT:
HTB:B Reeling Styles CBVK741B019
QTY:
10000
NSID:
PN2222N
SPEC: FSCINT Label D/C1:
D9842
SPEC REV:
B2
QA REV: 5 Reels per (FSCINT) Intermediate Box Customized F63TNR Label sample Label LOT: CBVK741B019 QTY: 2000 F63TNR Label FSID: PN222N SPEC: Customized D/C1: D9842 QTY1: SPEC REV: D/C2: QTY2: CPN: Label N/F: F (F63TNR)3 375mm x 267mm x 375mm Intermediate Box
TO-92 TNR/AMMO PACKING INFROMATION AMMO PACK OPTION See Fig 3.0 for 2 Ammo Packing Style Quantity EOL code Pack Options
Reel A 2,000 D26Z E 2,000 D27Z Ammo M 2,000 D74Z P 2,000 D75Z FSCINT Unit weight = 0.22 gm Reel weight with components = 1.04 kg Label Ammo weight with components = 1.02 kg Max quantity per intermediate box = 10,000 units 5 Ammo boxes per 327mm x 158mm x 135mm Intermediate Box Immediate Box Customized Label F63TNR Customized Label Label 333mm x 231mm x 183mm Intermediate Box
(TO-92) BULK PACKING INFORMATION BULK OPTION EOL LEADCLIP See Bulk Packing DESCRIPTION QUANTITY CODE DIMENSION Information table J18Z
TO-18 OPTION STD NO LEAD CLIP
2.0 K / BOX
Anti-static
J05Z
TO-5 OPTION STD NO LEAD CLIP
1.5 K / BOX
Bubble Sheets FSCINT Label
NO EOL
TO-92 STANDARD NO LEADCLIP
2.0 K / BOX CODE
STRAIGHT FOR: PKG 92, 94 (NON PROELECTRON SERIES), 96
L34Z
TO-92 STANDARD NO LEADCLIP
2.0 K / BOX
STRAIGHT FOR: PKG 94 (PROELECTRON SERIES 2000 units per 114mm x 102mm x 51mm BCXXX, BFXXX, BSRXXX), EO70 box for Immediate Box 97, 98 std option 5 EO70 boxes per intermediate Box 530mm x 130mm x 83mm Customized Intermediate box Label FSCINT Label 10,000 units maximum per intermediate box for std option www.onsemi.com 4
