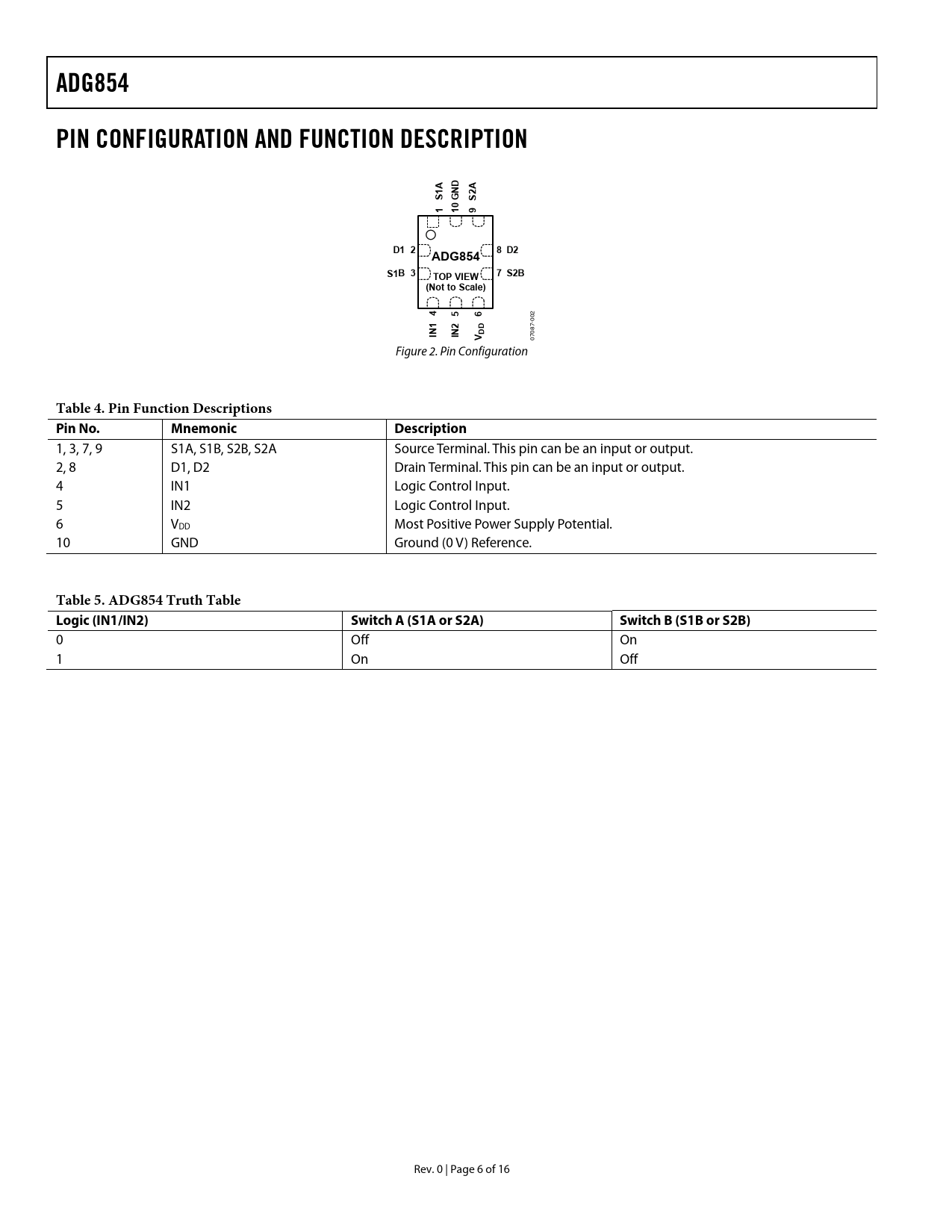

ADG854PIN CONFIGURATION AND FUNCTION DESCRIPTIONDA1NA2SGS0119D1 28 D2ADG854S1B 37 S2BTOP VIEW(Not to Scale)456 2 00 12D 7- NNIID 08 V 07 Figure 2. Pin Configuration Table 4. Pin Function Descriptions Pin No.MnemonicDescription 1, 3, 7, 9 S1A, S1B, S2B, S2A Source Terminal. This pin can be an input or output. 2, 8 D1, D2 Drain Terminal. This pin can be an input or output. 4 IN1 Logic Control Input. 5 IN2 Logic Control Input. 6 VDD Most Positive Power Supply Potential. 10 GND Ground (0 V) Reference. Table 5. ADG854 Truth Table Logic (IN1/IN2)Switch A (S1A or S2A)Switch B (S1B or S2B) 0 Off On 1 On Off Rev. 0 | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTION TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
