Datasheet ADG854 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 0.5 Ω CMOS, 1.8 V to 5.5 V, Dual SPDT/2:1 Mux, Mini LFCSP |
| Páginas / Página | 16 / 5 — ADG854. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION |
| Formato / tamaño de archivo | PDF / 303 Kb |
| Idioma del documento | Inglés |
ADG854. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 5 link to page 5

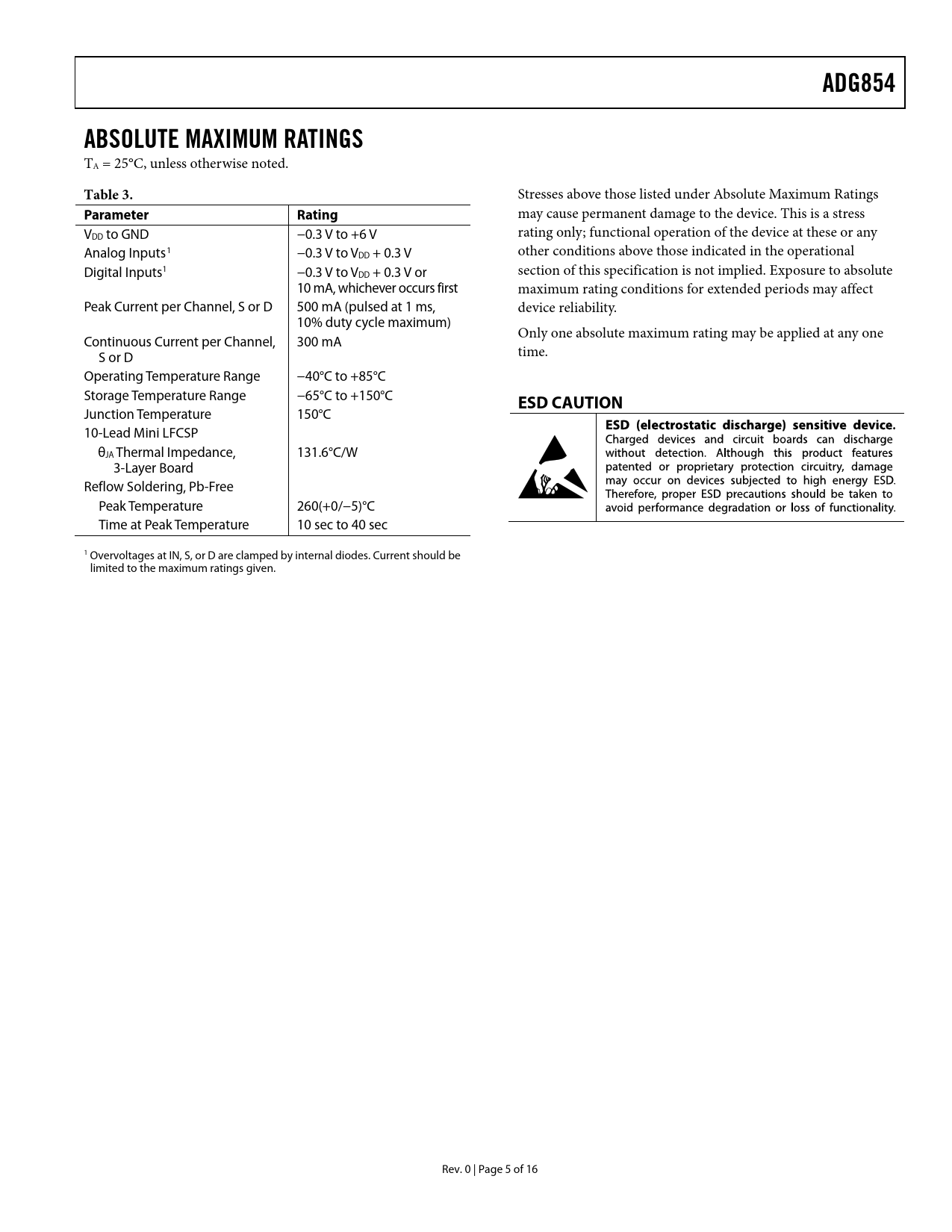

ADG854 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress V rating only; functional operation of the device at these or any DD to GND −0.3 V to +6 V Analog Inputs1 −0.3 V to V other conditions above those indicated in the operational DD + 0.3 V Digital Inputs1 −0.3 V to V section of this specification is not implied. Exposure to absolute DD + 0.3 V or 10 mA, whichever occurs first maximum rating conditions for extended periods may affect Peak Current per Channel, S or D 500 mA (pulsed at 1 ms, device reliability. 10% duty cycle maximum) Only one absolute maximum rating may be applied at any one Continuous Current per Channel, 300 mA S or D time. Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C
ESD CAUTION
Junction Temperature 150°C 10-Lead Mini LFCSP θJA Thermal Impedance, 131.6°C/W 3-Layer Board Reflow Soldering, Pb-Free Peak Temperature 260(+0/−5)°C Time at Peak Temperature 10 sec to 40 sec 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. 0 | Page 5 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTION TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
