ADG408/ADG409. Data Sheet. B Version. T Version. −40°C to. −55°C to. Parameter +25°C. +85°C. +25°C. +125°C. Unit. Test Conditions/Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 12 link to page 12 link to page 12 link to page 12 link to page 5

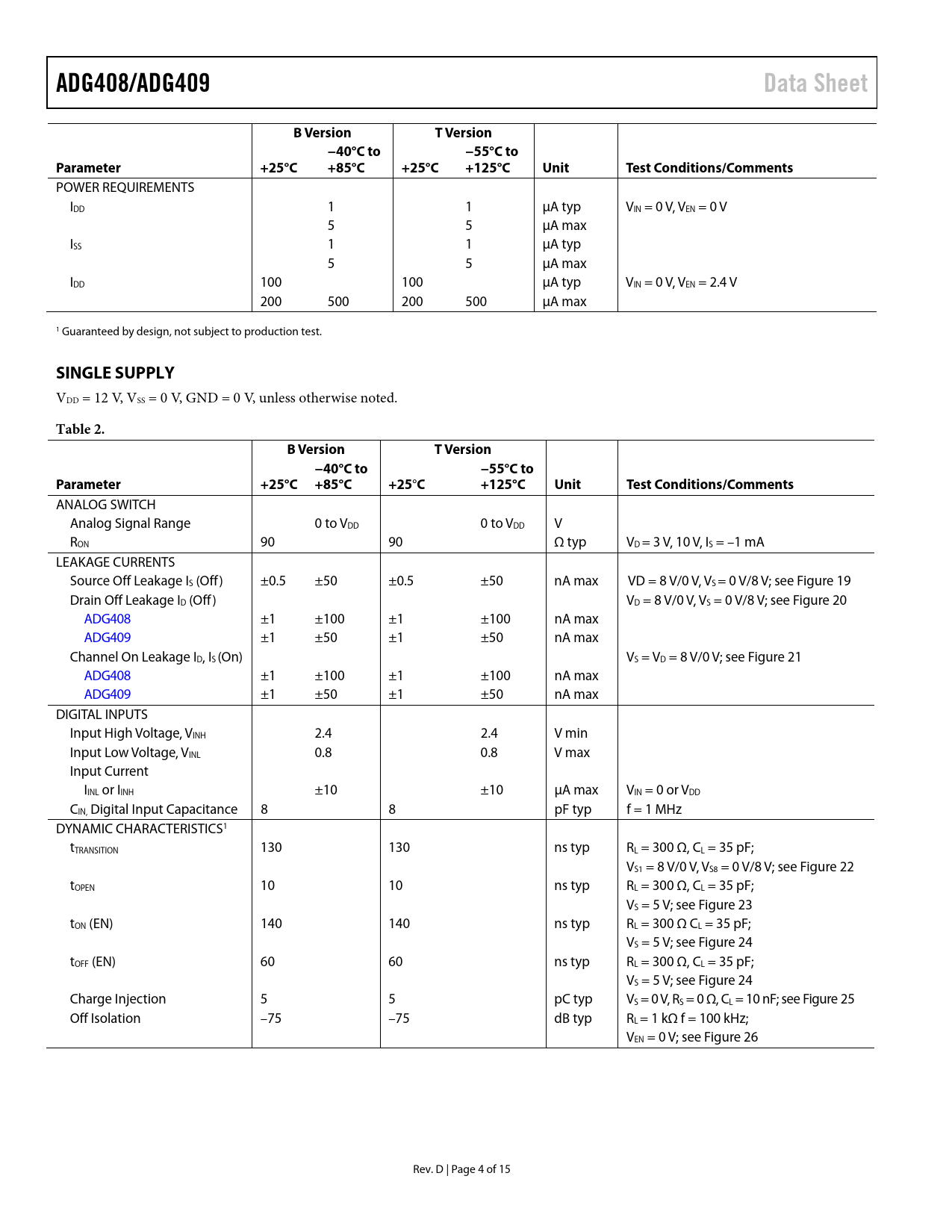

ADG408/ADG409 Data Sheet B Version T Version −40°C to −55°C to Parameter +25°C +85°C +25°C +125°C Unit Test Conditions/Comments
POWER REQUIREMENTS IDD 1 1 μA typ VIN = 0 V, VEN = 0 V 5 5 μA max ISS 1 1 μA typ 5 5 μA max IDD 100 100 μA typ VIN = 0 V, VEN = 2.4 V 200 500 200 500 μA max 1 Guaranteed by design, not subject to production test.
SINGLE SUPPLY
VDD = 12 V, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. B Version T Version −40°C to −55°C to Parameter +25°C +85°C +25
°
C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD 0 to VDD V RON 90 90 Ω typ VD = 3 V, 10 V, IS = –1 mA LEAKAGE CURRENTS Source Off Leakage IS (Off ) ±0.5 ±50 ±0.5 ±50 nA max VD = 8 V/0 V, VS = 0 V/8 V; see Figure 19 Drain Off Leakage ID (Off ) VD = 8 V/0 V, VS = 0 V/8 V; see Figure 20 ADG408 ±1 ±100 ±1 ±100 nA max ADG409 ±1 ±50 ±1 ±50 nA max Channel On Leakage ID, IS (On) VS = VD = 8 V/0 V; see Figure 21 ADG408 ±1 ±100 ±1 ±100 nA max ADG409 ±1 ±50 ±1 ±50 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 2.4 V min Input Low Voltage, VINL 0.8 0.8 V max Input Current IINL or IINH ±10 ±10 μA max VIN = 0 or VDD CIN, Digital Input Capacitance 8 8 pF typ f = 1 MHz DYNAMIC CHARACTERISTICS1 tTRANSITION 130 130 ns typ RL = 300 Ω, CL = 35 pF; VS1 = 8 V/0 V, VS8 = 0 V/8 V; see Figure 22 tOPEN 10 10 ns typ RL = 300 Ω, CL = 35 pF; VS = 5 V; see Figure 23 tON (EN) 140 140 ns typ RL = 300 Ω CL = 35 pF; VS = 5 V; see Figure 24 tOFF (EN) 60 60 ns typ RL = 300 Ω, CL = 35 pF; VS = 5 V; see Figure 24 Charge Injection 5 5 pC typ VS = 0 V, RS = 0 Ω, CL = 10 nF; see Figure 25 Off Isolation –75 –75 dB typ RL = 1 kΩ f = 100 kHz; VEN = 0 V; see Figure 26 Rev. D | Page 4 of 15 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
