Datasheet ADG408, ADG409 (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | Datasheet LC2MOS 4-/8-Channel High Performance Analog Multiplexers |
| Páginas / Página | 15 / 3 — Data Sheet. ADG408/ADG409. SPECIFICATIONS DUAL SUPPLY. Table 1. B … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 259 Kb |
| Idioma del documento | Inglés |
Data Sheet. ADG408/ADG409. SPECIFICATIONS DUAL SUPPLY. Table 1. B Version. T Version. −40°C to. −55°C to. Parameter +25°C. +85°C. +25°C
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 4

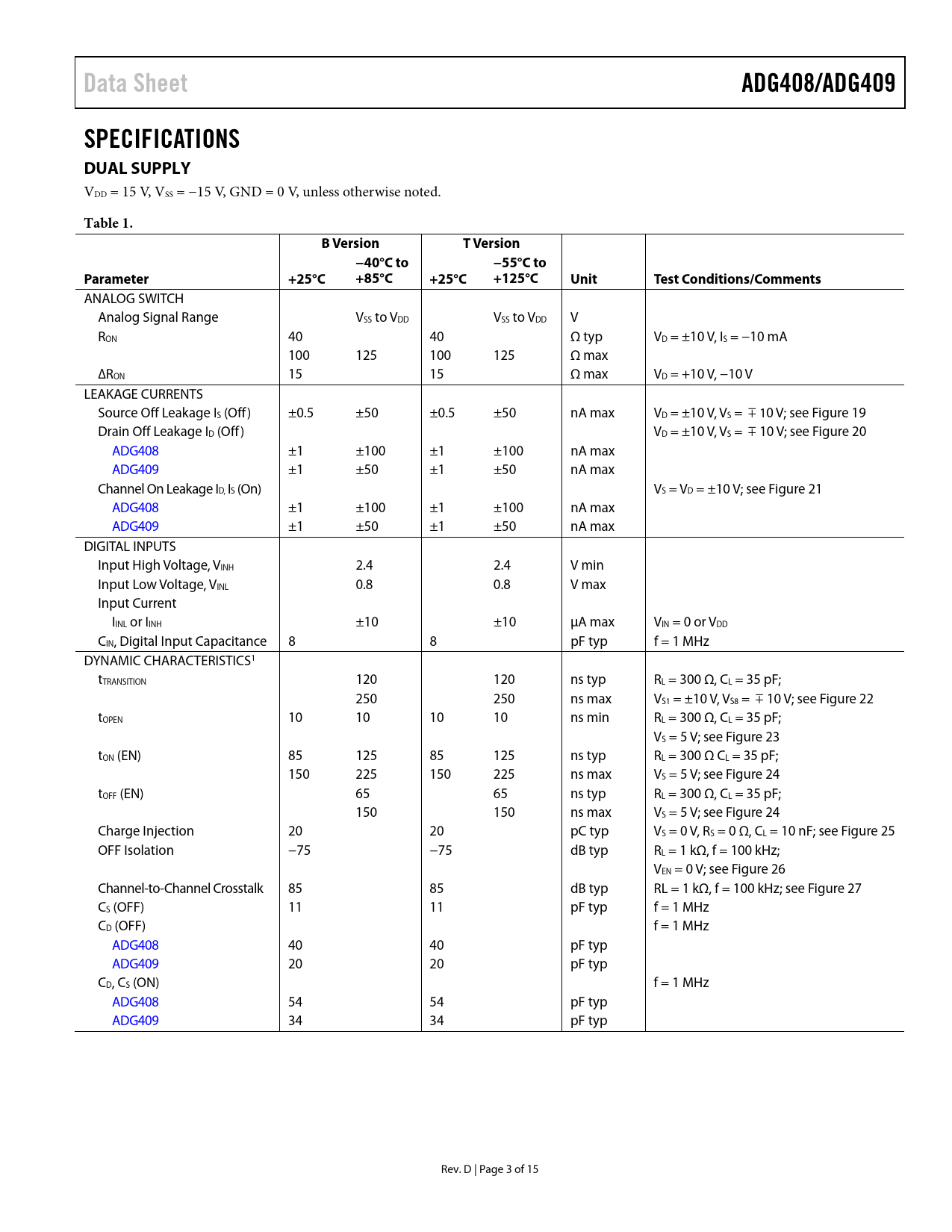

Data Sheet ADG408/ADG409 SPECIFICATIONS DUAL SUPPLY
VDD = 15 V, VSS = −15 V, GND = 0 V, unless otherwise noted.
Table 1. B Version T Version −40°C to −55°C to Parameter +25°C +85°C +25°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD VSS to VDD V RON 40 40 Ω typ VD = ±10 V, IS = −10 mA 100 125 100 125 Ω max ∆RON 15 15 Ω max VD = +10 V, −10 V LEAKAGE CURRENTS Source Off Leakage IS (Off ) ±0.5 ±50 ±0.5 ±50 nA max VD = ±10 V, VS = 10 V; see Figure 19 Drain Off Leakage ID (Off ) VD = ±10 V, VS = 10 V; see Figure 20 ADG408 ±1 ±100 ±1 ±100 nA max ADG409 ±1 ±50 ±1 ±50 nA max Channel On Leakage ID, IS (On) VS = VD = ±10 V; see Figure 21 ADG408 ±1 ±100 ±1 ±100 nA max ADG409 ±1 ±50 ±1 ±50 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 2.4 V min Input Low Voltage, VINL 0.8 0.8 V max Input Current IINL or IINH ±10 ±10 μA max VIN = 0 or VDD CIN, Digital Input Capacitance 8 8 pF typ f = 1 MHz DYNAMIC CHARACTERISTICS1 tTRANSITION 120 120 ns typ RL = 300 Ω, CL = 35 pF; 250 250 ns max VS1 = ±10 V, VS8 = 10 V; see Figure 22 tOPEN 10 10 10 10 ns min RL = 300 Ω, CL = 35 pF; VS = 5 V; see Figure 23 tON (EN) 85 125 85 125 ns typ RL = 300 Ω CL = 35 pF; 150 225 150 225 ns max VS = 5 V; see Figure 24 tOFF (EN) 65 65 ns typ RL = 300 Ω, CL = 35 pF; 150 150 ns max VS = 5 V; see Figure 24 Charge Injection 20 20 pC typ VS = 0 V, RS = 0 Ω, CL = 10 nF; see Figure 25 OFF Isolation −75 −75 dB typ RL = 1 kΩ, f = 100 kHz; VEN = 0 V; see Figure 26 Channel-to-Channel Crosstalk 85 85 dB typ RL = 1 kΩ, f = 100 kHz; see Figure 27 CS (OFF) 11 11 pF typ f = 1 MHz CD (OFF) f = 1 MHz ADG408 40 40 pF typ ADG409 20 20 pF typ CD, CS (ON) f = 1 MHz ADG408 54 54 pF typ ADG409 34 34 pF typ Rev. D | Page 3 of 15 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADG408/ADG409 SPECIFICATIONS DUAL SUPPLY
VDD = 15 V, VSS = −15 V, GND = 0 V, unless otherwise noted.
Table 1. B Version T Version −40°C to −55°C to Parameter +25°C +85°C +25°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD VSS to VDD V RON 40 40 Ω typ VD = ±10 V, IS = −10 mA 100 125 100 125 Ω max ∆RON 15 15 Ω max VD = +10 V, −10 V LEAKAGE CURRENTS Source Off Leakage IS (Off ) ±0.5 ±50 ±0.5 ±50 nA max VD = ±10 V, VS = 10 V; see Figure 19 Drain Off Leakage ID (Off ) VD = ±10 V, VS = 10 V; see Figure 20 ADG408 ±1 ±100 ±1 ±100 nA max ADG409 ±1 ±50 ±1 ±50 nA max Channel On Leakage ID, IS (On) VS = VD = ±10 V; see Figure 21 ADG408 ±1 ±100 ±1 ±100 nA max ADG409 ±1 ±50 ±1 ±50 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 2.4 V min Input Low Voltage, VINL 0.8 0.8 V max Input Current IINL or IINH ±10 ±10 μA max VIN = 0 or VDD CIN, Digital Input Capacitance 8 8 pF typ f = 1 MHz DYNAMIC CHARACTERISTICS1 tTRANSITION 120 120 ns typ RL = 300 Ω, CL = 35 pF; 250 250 ns max VS1 = ±10 V, VS8 = 10 V; see Figure 22 tOPEN 10 10 10 10 ns min RL = 300 Ω, CL = 35 pF; VS = 5 V; see Figure 23 tON (EN) 85 125 85 125 ns typ RL = 300 Ω CL = 35 pF; 150 225 150 225 ns max VS = 5 V; see Figure 24 tOFF (EN) 65 65 ns typ RL = 300 Ω, CL = 35 pF; 150 150 ns max VS = 5 V; see Figure 24 Charge Injection 20 20 pC typ VS = 0 V, RS = 0 Ω, CL = 10 nF; see Figure 25 OFF Isolation −75 −75 dB typ RL = 1 kΩ, f = 100 kHz; VEN = 0 V; see Figure 26 Channel-to-Channel Crosstalk 85 85 dB typ RL = 1 kΩ, f = 100 kHz; see Figure 27 CS (OFF) 11 11 pF typ f = 1 MHz CD (OFF) f = 1 MHz ADG408 40 40 pF typ ADG409 20 20 pF typ CD, CS (ON) f = 1 MHz ADG408 54 54 pF typ ADG409 34 34 pF typ Rev. D | Page 3 of 15 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
