Datasheet ADG406, ADG407, ADG426 (Analog Devices) - 9
| Fabricante | Analog Devices |
| Descripción | LC2MOS 8-/16-Channel High Performance Analog Multiplexers |
| Páginas / Página | 20 / 9 — ADG406/ADG407/ADG426. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. VDD … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 394 Kb |
| Idioma del documento | Inglés |
ADG406/ADG407/ADG426. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. VDD 1. 28 D. NC 2. 27 VSS. S16. 28 27 26. 26 S8. S16 4. 25 S7. S15 5. PIN 1
Línea de modelo para esta hoja de datos
Versión de texto del documento

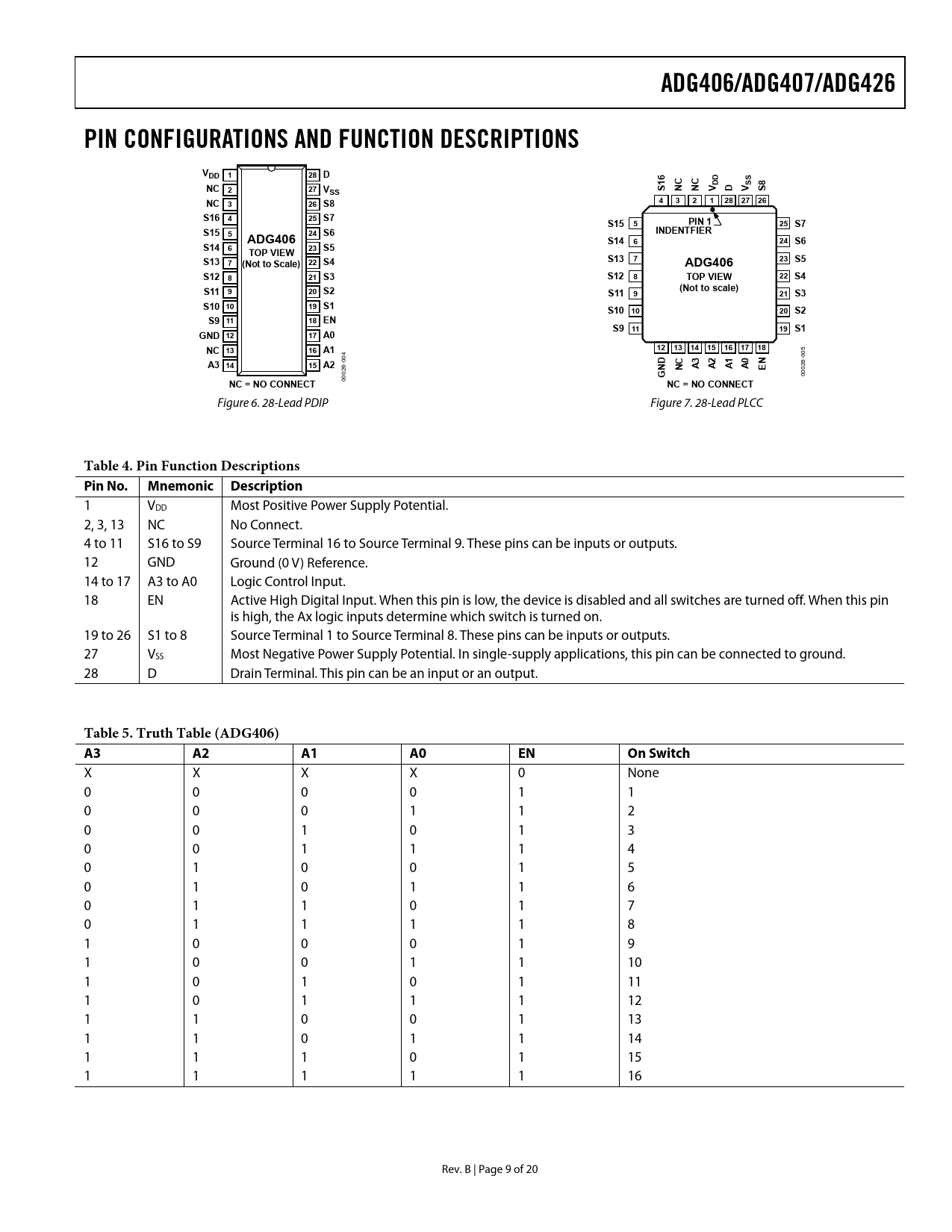

ADG406/ADG407/ADG426 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS VDD 1 28 D DD SS NC 2 27 VSS S16 NC NC V D V S8 NC 4 3 2 1 28 27 26 3 26 S8 S16 4 25 S7 S15 5 PIN 1 25 S7 S15 5 24 S6 INDENTFIER ADG406 S14 6 24 S6 S14 6 23 S5 TOP VIEW S13 S13 7 23 S5 7 22 S4 (Not to Scale) ADG406 S12 8 21 S3 S12 8 TOP VIEW 22 S4 S11 9 20 S2 (Not to scale) S11 9 21 S3 S10 10 19 S1 S10 10 20 S2 S9 11 18 EN S9 11 19 S1 GND 12 17 A0 NC 13 16 A1 12 13 14 15 16 17 18
5 4 00
A3 D 14 15 A2
00 6- 6-
NC A3 A2 A1 A0 EN
02 02
GN
00
NC = NO CONNECT
00
NC = NO CONNECT
Figure 6. 28-Lead PDIP Figure 7. 28-Lead PLCC
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 VDD Most Positive Power Supply Potential. 2, 3, 13 NC No Connect. 4 to 11 S16 to S9 Source Terminal 16 to Source Terminal 9. These pins can be inputs or outputs. 12 GND Ground (0 V) Reference. 14 to 17 A3 to A0 Logic Control Input. 18 EN Active High Digital Input. When this pin is low, the device is disabled and all switches are turned off. When this pin is high, the Ax logic inputs determine which switch is turned on. 19 to 26 S1 to 8 Source Terminal 1 to Source Terminal 8. These pins can be inputs or outputs. 27 VSS Most Negative Power Supply Potential. In single-supply applications, this pin can be connected to ground. 28 D Drain Terminal. This pin can be an input or an output.
Table 5. Truth Table (ADG406) A3 A2 A1 A0 EN On Switch
X X X X 0 None 0 0 0 0 1 1 0 0 0 1 1 2 0 0 1 0 1 3 0 0 1 1 1 4 0 1 0 0 1 5 0 1 0 1 1 6 0 1 1 0 1 7 0 1 1 1 1 8 1 0 0 0 1 9 1 0 0 1 1 10 1 0 1 0 1 11 1 0 1 1 1 12 1 1 0 0 1 13 1 1 0 1 1 14 1 1 1 0 1 15 1 1 1 1 1 16 Rev. B | Page 9 of 20 Document Outline FEATURES APPLICATIONS PRODUCT HIGHLIGHTS FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ADG426 TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
