Datasheet ADG438F, ADG439F (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | High Performance, 4-/8-Channel, Fault-Protected Analog Multiplexers |
| Páginas / Página | 16 / 5 — ADG438F/ADG439F. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD … |
| Revisión | E |
| Formato / tamaño de archivo | PDF / 325 Kb |
| Idioma del documento | Inglés |
ADG438F/ADG439F. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento

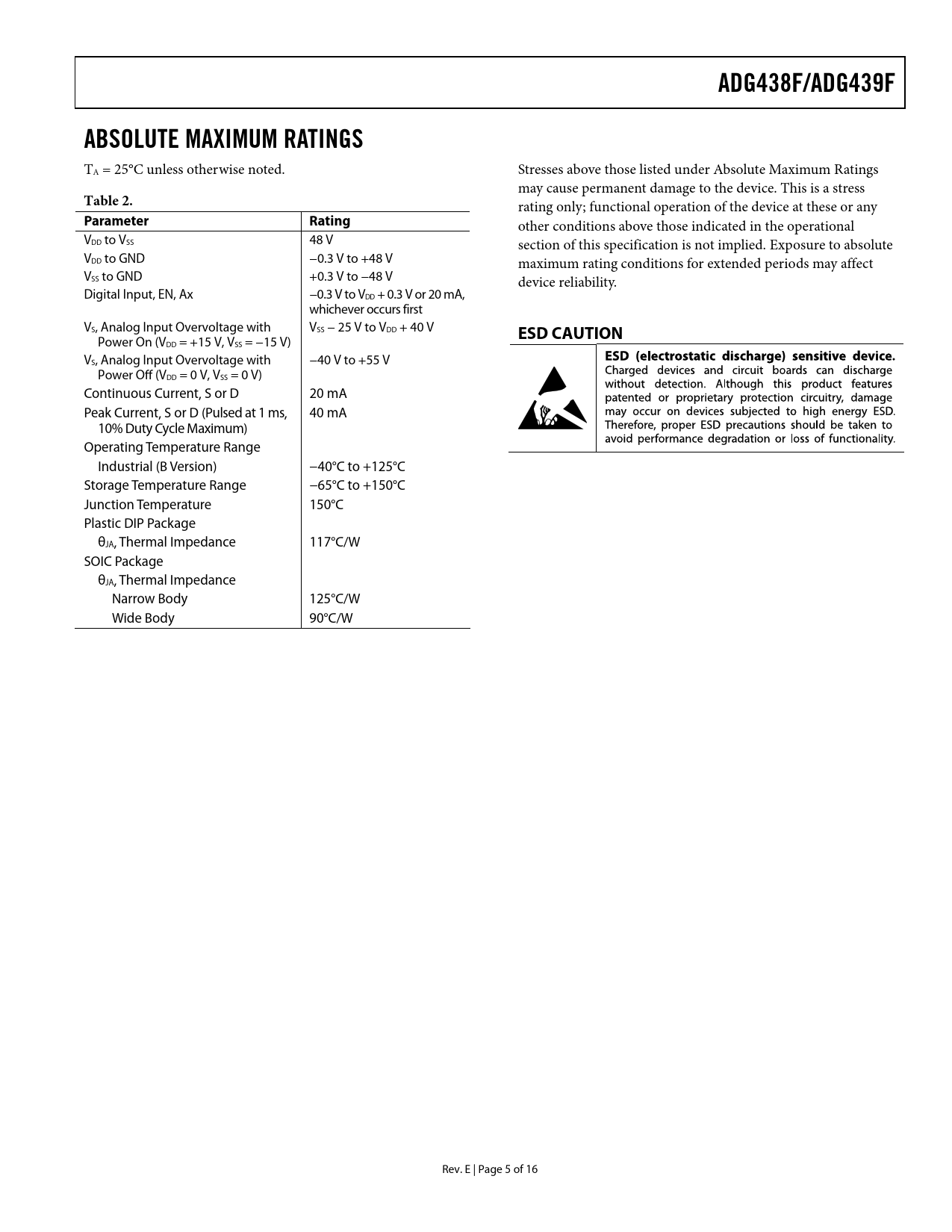

ADG438F/ADG439F ABSOLUTE MAXIMUM RATINGS
TA = 25°C unless otherwise noted. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Table 2.
rating only; functional operation of the device at these or any
Parameter Rating
other conditions above those indicated in the operational VDD to VSS 48 V section of this specification is not implied. Exposure to absolute VDD to GND −0.3 V to +48 V maximum rating conditions for extended periods may affect VSS to GND +0.3 V to −48 V device reliability. Digital Input, EN, Ax −0.3 V to VDD + 0.3 V or 20 mA, whichever occurs first VS, Analog Input Overvoltage with VSS − 25 V to VDD + 40 V
ESD CAUTION
Power On (VDD = +15 V, VSS = −15 V) VS, Analog Input Overvoltage with −40 V to +55 V Power Off (VDD = 0 V, VSS = 0 V) Continuous Current, S or D 20 mA Peak Current, S or D (Pulsed at 1 ms, 40 mA 10% Duty Cycle Maximum) Operating Temperature Range Industrial (B Version) −40°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Plastic DIP Package θJA, Thermal Impedance 117°C/W SOIC Package θJA, Thermal Impedance Narrow Body 125°C/W Wide Body 90°C/W Rev. E | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION OUTLINE DIMENSIONS ORDERING GUIDE
