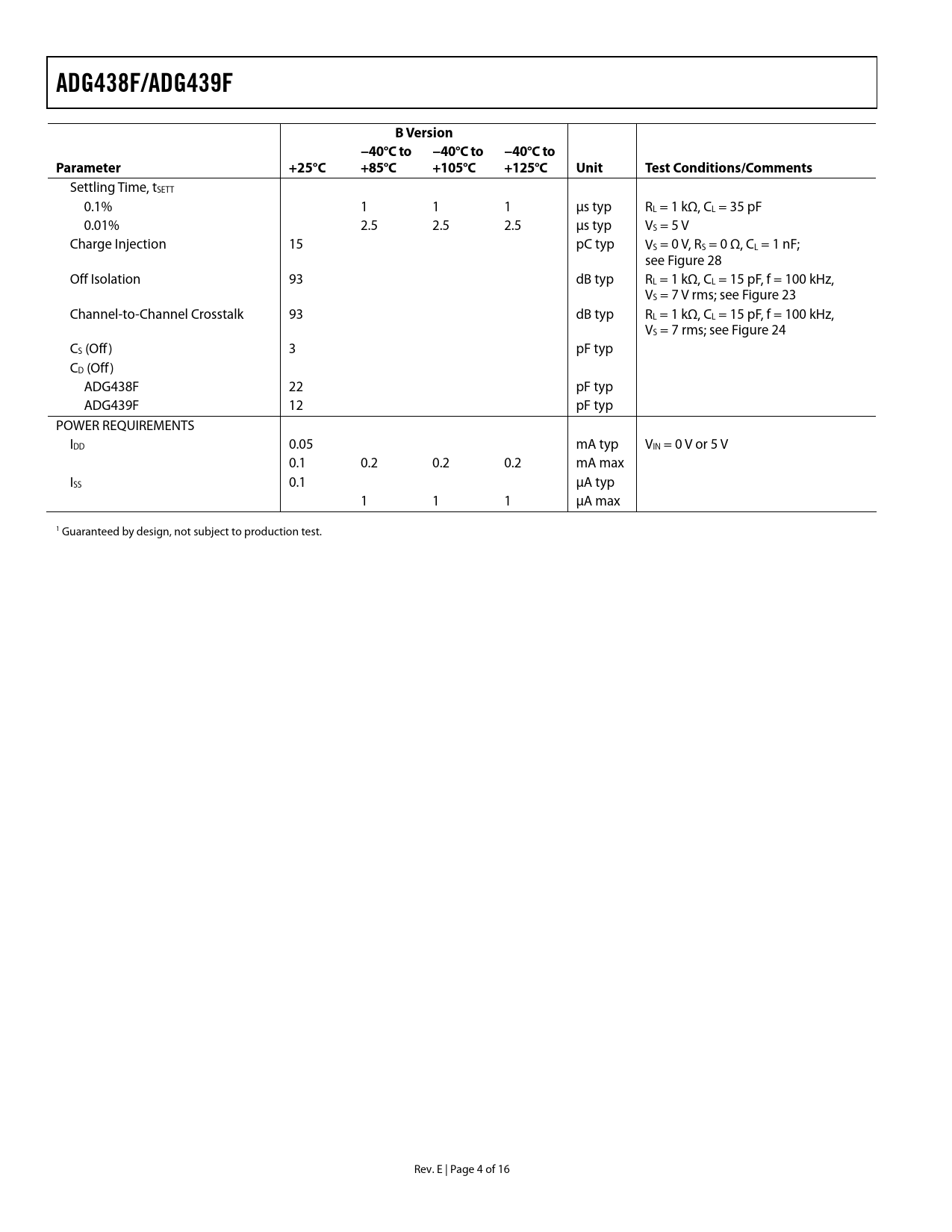

Datasheet ADG438F, ADG439F (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | High Performance, 4-/8-Channel, Fault-Protected Analog Multiplexers |
| Páginas / Página | 16 / 4 — ADG438F/ADG439F. Version. −40°C to. Parameter +25°C. +85°C. +105°C. … |
| Revisión | E |
| Formato / tamaño de archivo | PDF / 325 Kb |
| Idioma del documento | Inglés |
ADG438F/ADG439F. Version. −40°C to. Parameter +25°C. +85°C. +105°C. +125°C. Unit Test. Conditions/Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 11 link to page 9 link to page 9
ADG438F/ADG439F B Version −40°C to −40°C to −40°C to Parameter +25°C +85°C +105°C +125°C Unit Test Conditions/Comments
Settling Time, tSETT 0.1% 1 1 1 μs typ RL = 1 kΩ, CL = 35 pF 0.01% 2.5 2.5 2.5 μs typ VS = 5 V Charge Injection 15 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 28 Off Isolation 93 dB typ RL = 1 kΩ, CL = 15 pF, f = 100 kHz, VS = 7 V rms; see Figure 23 Channel-to-Channel Crosstalk 93 dB typ RL = 1 kΩ, CL = 15 pF, f = 100 kHz, VS = 7 rms; see Figure 24 CS (Off ) 3 pF typ CD (Off ) ADG438F 22 pF typ ADG439F 12 pF typ POWER REQUIREMENTS IDD 0.05 mA typ VIN = 0 V or 5 V 0.1 0.2 0.2 0.2 mA max ISS 0.1 μA typ 1 1 1 μA max 1 Guaranteed by design, not subject to production test. Rev. E | Page 4 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION OUTLINE DIMENSIONS ORDERING GUIDE
ADG438F/ADG439F B Version −40°C to −40°C to −40°C to Parameter +25°C +85°C +105°C +125°C Unit Test Conditions/Comments
Settling Time, tSETT 0.1% 1 1 1 μs typ RL = 1 kΩ, CL = 35 pF 0.01% 2.5 2.5 2.5 μs typ VS = 5 V Charge Injection 15 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 28 Off Isolation 93 dB typ RL = 1 kΩ, CL = 15 pF, f = 100 kHz, VS = 7 V rms; see Figure 23 Channel-to-Channel Crosstalk 93 dB typ RL = 1 kΩ, CL = 15 pF, f = 100 kHz, VS = 7 rms; see Figure 24 CS (Off ) 3 pF typ CD (Off ) ADG438F 22 pF typ ADG439F 12 pF typ POWER REQUIREMENTS IDD 0.05 mA typ VIN = 0 V or 5 V 0.1 0.2 0.2 0.2 mA max ISS 0.1 μA typ 1 1 1 μA max 1 Guaranteed by design, not subject to production test. Rev. E | Page 4 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION OUTLINE DIMENSIONS ORDERING GUIDE
