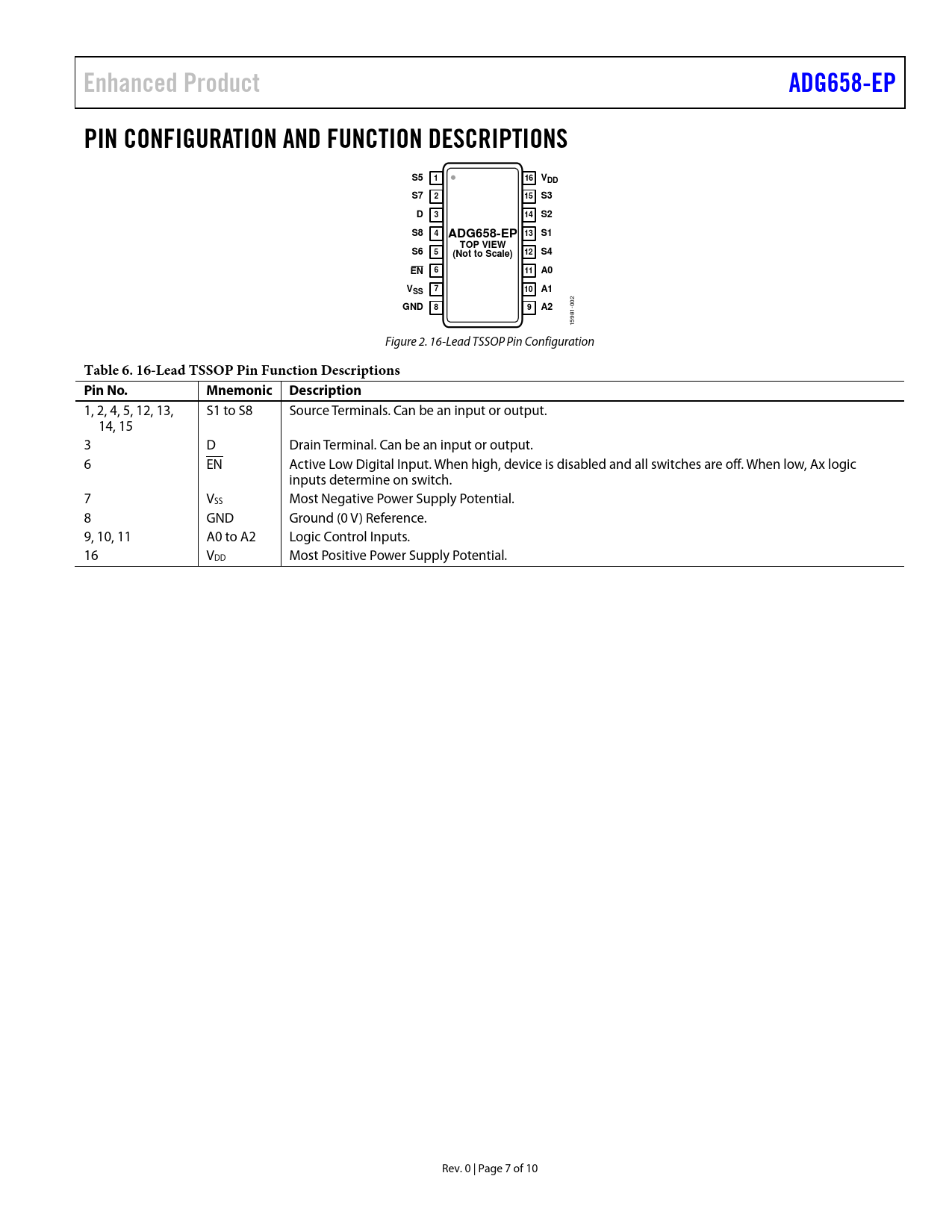

Enhanced Product. ADG658-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VDD. TOP VIEW. (Not to Scale). GND
Línea de modelo para esta hoja de datos
Versión de texto del documento
Enhanced Product ADG658-EP PIN CONFIGURATION AND FUNCTION DESCRIPTIONS S5 1 16 VDD S7 2 15 S3 D 3 14 S2 S8 4 13 ADG658-EP S1 TOP VIEW S6 5 12 S4 (Not to Scale) EN 6 11 A0 V 7 10 A1 SS GND 8 9 A2
002 15981- Figure 2. 16-Lead TSSOP Pin Configuration
Table 6. 16-Lead TSSOP Pin Function Descriptions Pin No. Mnemonic Description
1, 2, 4, 5, 12, 13, S1 to S8 Source Terminals. Can be an input or output. 14, 15 3 D Drain Terminal. Can be an input or output. 6 EN Active Low Digital Input. When high, device is disabled and all switches are off. When low, Ax logic inputs determine on switch. 7 VSS Most Negative Power Supply Potential. 8 GND Ground (0 V) Reference. 9, 10, 11 A0 to A2 Logic Control Inputs. 16 VDD Most Positive Power Supply Potential. Rev. 0 | Page 7 of 10 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY 5 V SINGLE SUPPLY 2.7 V TO 3.6 V SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
