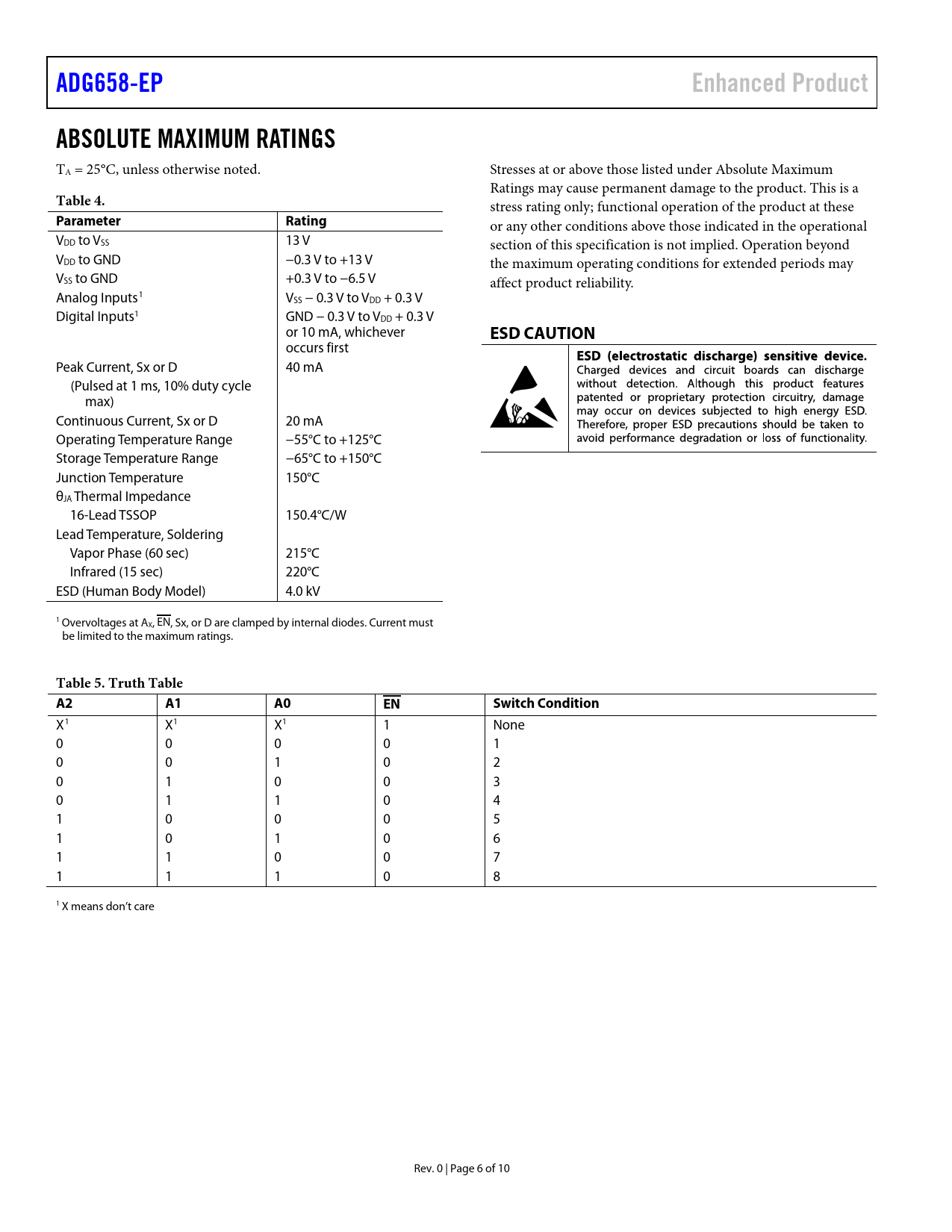

ADG658-EP. Enhanced Product. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter. Rating. ESD CAUTION. Table 5. Truth Table A2
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADG658-EP Enhanced Product ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Table 4.
stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational VDD to VSS 13 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +13 V the maximum operating conditions for extended periods may VSS to GND +0.3 V to −6.5 V affect product reliability. Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V Digital Inputs1 GND − 0.3 V to VDD + 0.3 V or 10 mA, whichever
ESD CAUTION
occurs first Peak Current, Sx or D 40 mA (Pulsed at 1 ms, 10% duty cycle max) Continuous Current, Sx or D 20 mA Operating Temperature Range −55°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C θJA Thermal Impedance 16-Lead TSSOP 150.4°C/W Lead Temperature, Soldering Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C ESD (Human Body Model) 4.0 kV 1 Overvoltages at AX, EN, Sx, or D are clamped by internal diodes. Current must be limited to the maximum ratings.
Table 5. Truth Table A2 A1 A0 EN Switch Condition
X1 X1 X1 1 None 0 0 0 0 1 0 0 1 0 2 0 1 0 0 3 0 1 1 0 4 1 0 0 0 5 1 0 1 0 6 1 1 0 0 7 1 1 1 0 8 1 X means don’t care Rev. 0 | Page 6 of 10 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY 5 V SINGLE SUPPLY 2.7 V TO 3.6 V SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
