Datasheet ADG658, ADG659 (Analog Devices) - 9
| Fabricante | Analog Devices |
| Descripción | +3 V/+5 V/±5 V CMOS 4-and 8-Channel Analog Multiplexers |
| Páginas / Página | 20 / 9 — Data Sheet. ADG658/ADG659. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter. … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 397 Kb |
| Idioma del documento | Inglés |

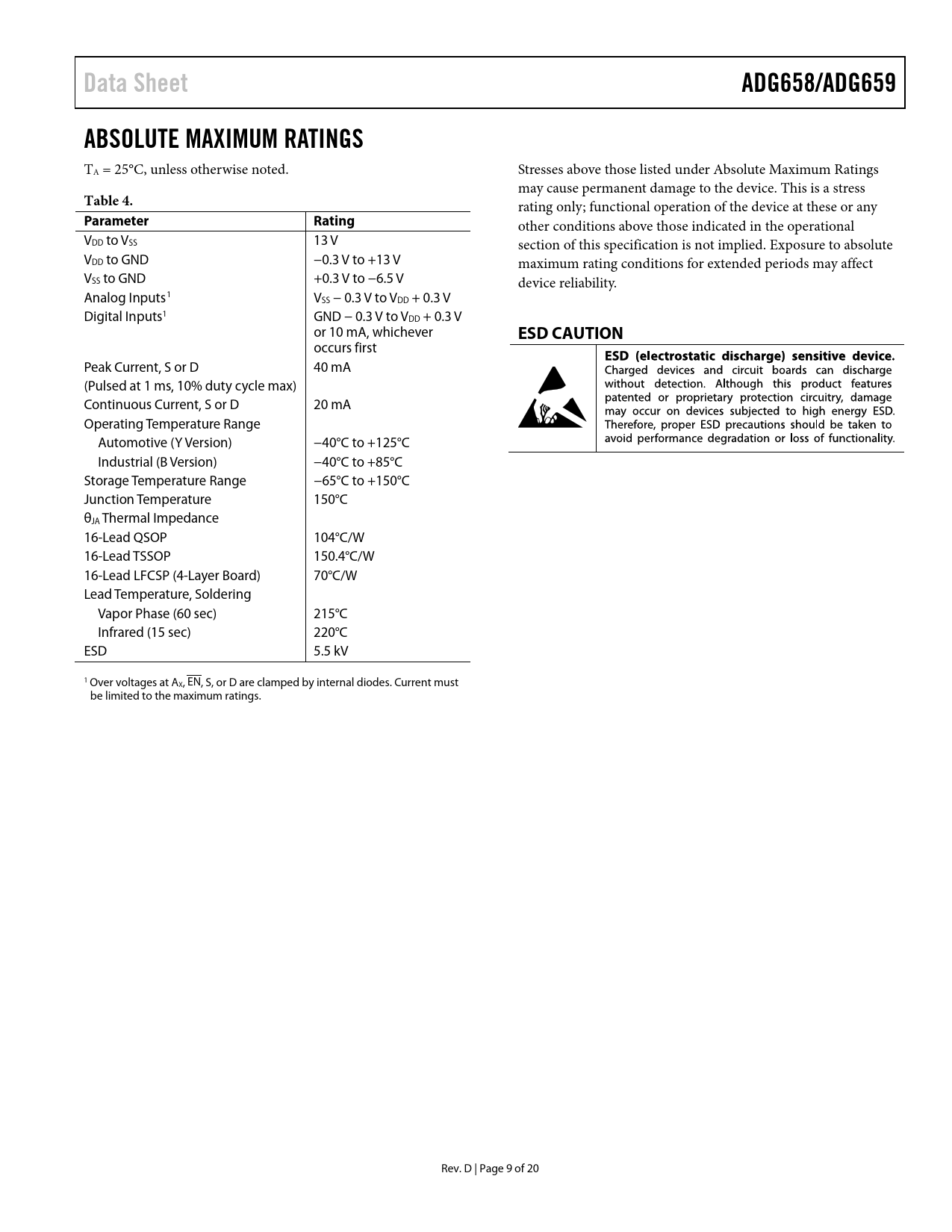

Data Sheet. ADG658/ADG659. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 9
Data Sheet ADG658/ADG659 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Table 4.
rating only; functional operation of the device at these or any
Parameter Rating
other conditions above those indicated in the operational VDD to VSS 13 V section of this specification is not implied. Exposure to absolute VDD to GND −0.3 V to +13 V maximum rating conditions for extended periods may affect VSS to GND +0.3 V to −6.5 V device reliability. Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V Digital Inputs1 GND − 0.3 V to VDD + 0.3 V or 10 mA, whichever
