Datasheet ADG658, ADG659 (Analog Devices)

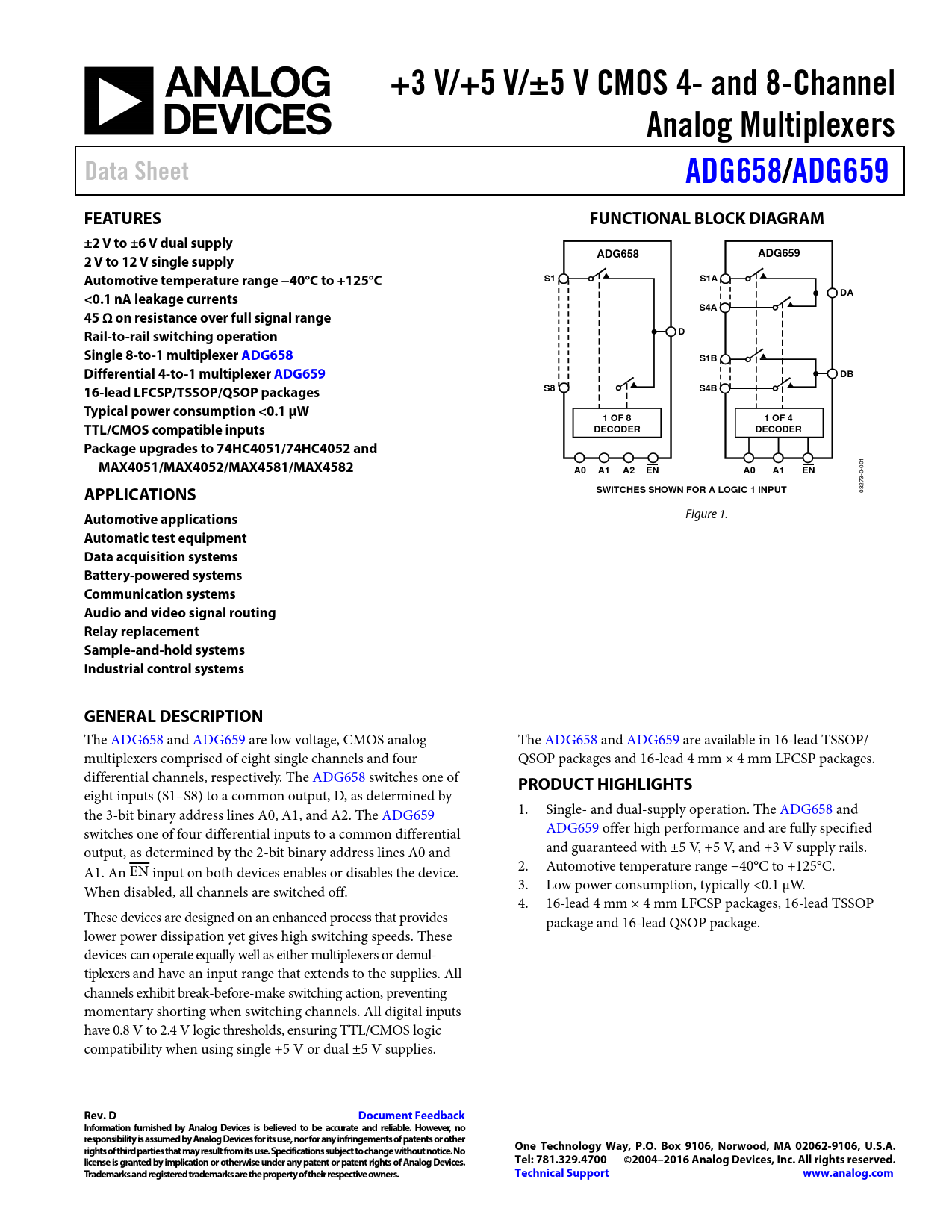

+3 V/+5 V/±5 V CMOS 4- and 8-Channel Analog Multiplexers Data Sheet ADG658/ ADG659 FEATURES FUNCTIONAL BLOCK DIAGRAM ±2 V to ±6 V dual supply ADG658 ADG659 2 V to 12 V single supply Automotive temperature range −40°C to +125°C S1 S1A DA <0.1 nA leakage currents S4A 45 Ω on resistance over full signal range Rail-to-rail switching operation D Single 8-to-1 multiplexer ADG658 S1B Differential 4-to-1 multiplexer ADG659 DB 16-lead LFCSP/TSSOP/QSOP packages S8 S4B Typical power consumption <0.1 μW 1 OF 8 1 OF 4 TTL/CMOS compatible inputs DECODER DECODER Package upgrades to 74HC4051/74HC4052 and MAX4051/MAX4052/MAX4581/MAX4582 A0 A1 A2 EN A0 A1 EN APPLICATIONS SWITCHES SHOWN FOR A LOGIC 1 INPUT
03273-0-001
Automotive applications
Figure 1.
Automatic test equipment Data acquisition systems Battery-powered systems Communication systems Audio and video signal routing Relay replacement Sample-and-hold systems Industrial control systems GENERAL DESCRIPTION
The ADG658 and ADG659 are low voltage, CMOS analog The ADG658 and ADG659 are available in 16-lead TSSOP/ multiplexers comprised of eight single channels and four QSOP packages and 16-lead 4 mm × 4 mm LFCSP packages. differential channels, respectively. The ADG658 switches one of
PRODUCT HIGHLIGHTS
eight inputs (S1–S8) to a common output, D, as determined by the 3-bit binary address lines A0, A1, and A2. The ADG659 1. Single- and dual-supply operation. The ADG658 and switches one of four differential inputs to a common differential ADG659 offer high performance and are fully specified output, as determined by the 2-bit binary address lines A0 and and guaranteed with ±5 V, +5 V, and +3 V supply rails. A1. An EN input on both devices enables or disables the device. 2. Automotive temperature range −40°C to +125°C. When disabled, all channels are switched off. 3. Low power consumption, typically <0.1 μW. 4. 16-lead 4 mm × 4 mm LFCSP packages, 16-lead TSSOP These devices are designed on an enhanced process that provides package and 16-lead QSOP package. lower power dissipation yet gives high switching speeds. These devices can operate equally well as either multiplexers or demul- tiplexers and have an input range that extends to the supplies. All channels exhibit break-before-make switching action, preventing momentary shorting when switching channels. All digital inputs have 0.8 V to 2.4 V logic thresholds, ensuring TTL/CMOS logic compatibility when using single +5 V or dual ±5 V supplies.
Rev. D Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2004–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY 5 V SINGLE SUPPLY 2.7 V TO 3.6 V SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
