Datasheet ADG1204 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | Low Capacitance, Low Charge Injection, ±15 V/+12 V, 4:1 iCMOS Multiplexer |
| Páginas / Página | 16 / 8 — ADG1204. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. 9 GND. … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 462 Kb |
| Idioma del documento | Inglés |

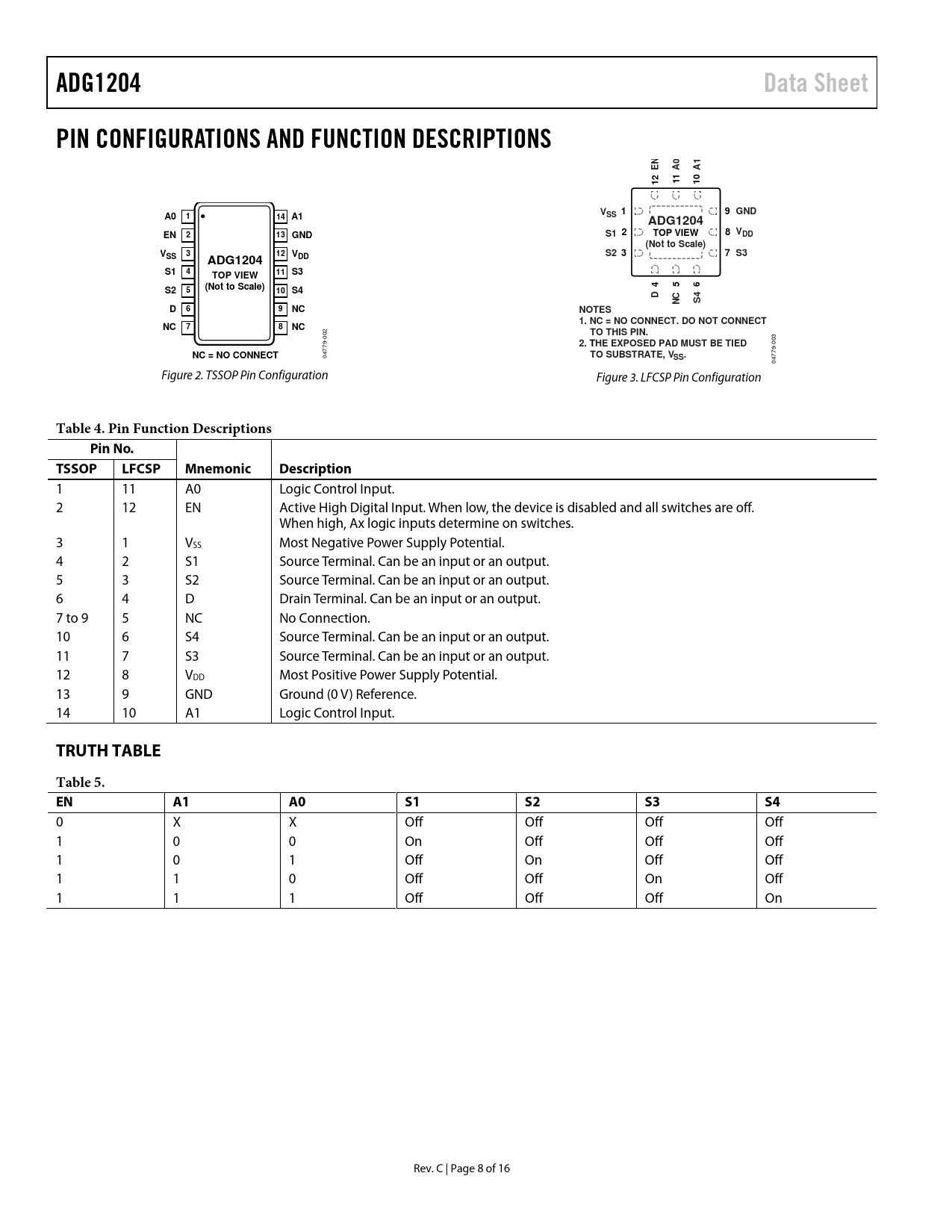

ADG1204. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. 9 GND. 14 A1. 13 GND. S1 2. TOP VIEW. 8 VDD. (Not to Scale). 12 VDD. S2 3
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADG1204 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS EN A0 A1 1 12 1 10 1 9 GND A0 V 1 14 A1 SS ADG1204 EN 2 13 GND S1 2 TOP VIEW 8 VDD (Not to Scale) V 3 SS 12 VDD S2 3 7 S3 ADG1204 S1 4 TOP VIEW 11 S3 (Not to Scale) 4 5 6 S2 5 10 S4 D NC S4 D 6 9 NC NOTES 1. NC = NO CONNECT. DO NOT CONNECT NC 7 8 NC TO THIS PIN.
002
2. THE EXPOSED PAD MUST BE TIED
003
NC = NO CONNECT
04779-
TO SUBSTRATE, VSS.
04779- Figure 2. TSSOP Pin Configuration Figure 3. LFCSP Pin Configuration
Table 4. Pin Function Descriptions Pin No. TSSOP LFCSP Mnemonic Description
1 11 A0 Logic Control Input. 2 12 EN Active High Digital Input. When low, the device is disabled and all switches are off. When high, Ax logic inputs determine on switches. 3 1 VSS Most Negative Power Supply Potential. 4 2 S1 Source Terminal. Can be an input or an output. 5 3 S2 Source Terminal. Can be an input or an output. 6 4 D Drain Terminal. Can be an input or an output. 7 to 9 5 NC No Connection. 10 6 S4 Source Terminal. Can be an input or an output. 11 7 S3 Source Terminal. Can be an input or an output. 12 8 VDD Most Positive Power Supply Potential. 13 9 GND Ground (0 V) Reference. 14 10 A1 Logic Control Input.
TRUTH TABLE Table 5. EN A1 A0 S1 S2 S3 S4
0 X X Off Off Off Off 1 0 0 On Off Off Off 1 0 1 Off On Off Off 1 1 0 Off Off On Off 1 1 1 Off Off Off On Rev. C | Page 8 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
