Datasheet ADG1204 (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | Low Capacitance, Low Charge Injection, ±15 V/+12 V, 4:1 iCMOS Multiplexer |
| Páginas / Página | 16 / 7 — Data Sheet. ADG1204. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 462 Kb |
| Idioma del documento | Inglés |

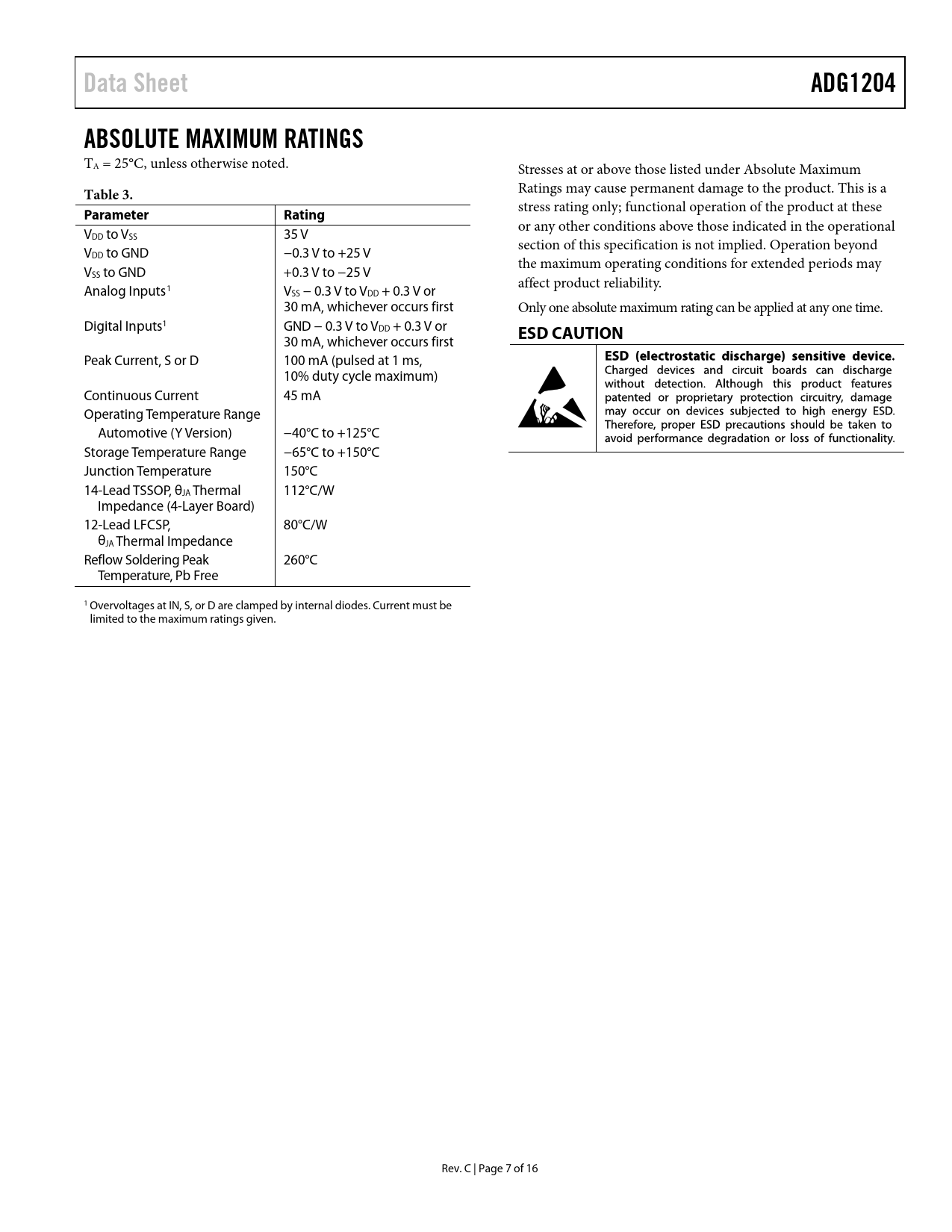

Data Sheet. ADG1204. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet ADG1204 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 3.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational VDD to VSS 35 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +25 V the maximum operating conditions for extended periods may VSS to GND +0.3 V to −25 V affect product reliability. Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first Only one absolute maximum rating can be applied at any one time. Digital Inputs1 GND − 0.3 V to VDD + 0.3 V or
ESD CAUTION
30 mA, whichever occurs first Peak Current, S or D 100 mA (pulsed at 1 ms, 10% duty cycle maximum) Continuous Current 45 mA Operating Temperature Range Automotive (Y Version) −40°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C 14-Lead TSSOP, θJA Thermal 112°C/W Impedance (4-Layer Board) 12-Lead LFCSP, 80°C/W θJA Thermal Impedance Reflow Soldering Peak 260°C Temperature, Pb Free 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current must be limited to the maximum ratings given. Rev. C | Page 7 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
