Datasheet ADG1419 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 2.1 Ω On Resistance, ±15 V/+12 V/±5 V, iCMOS SPDT Switch |
| Páginas / Página | 16 / 6 — ADG1419. Data Sheet. Parameter. 25°C. −40°C to +85°C. −40°C to +125°C. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 442 Kb |
| Idioma del documento | Inglés |
ADG1419. Data Sheet. Parameter. 25°C. −40°C to +85°C. −40°C to +125°C. Unit. Test Conditions/Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 12 link to page 12 link to page 12 link to page 12 link to page 13 link to page 13 link to page 13 link to page 13 link to page 13 link to page 13

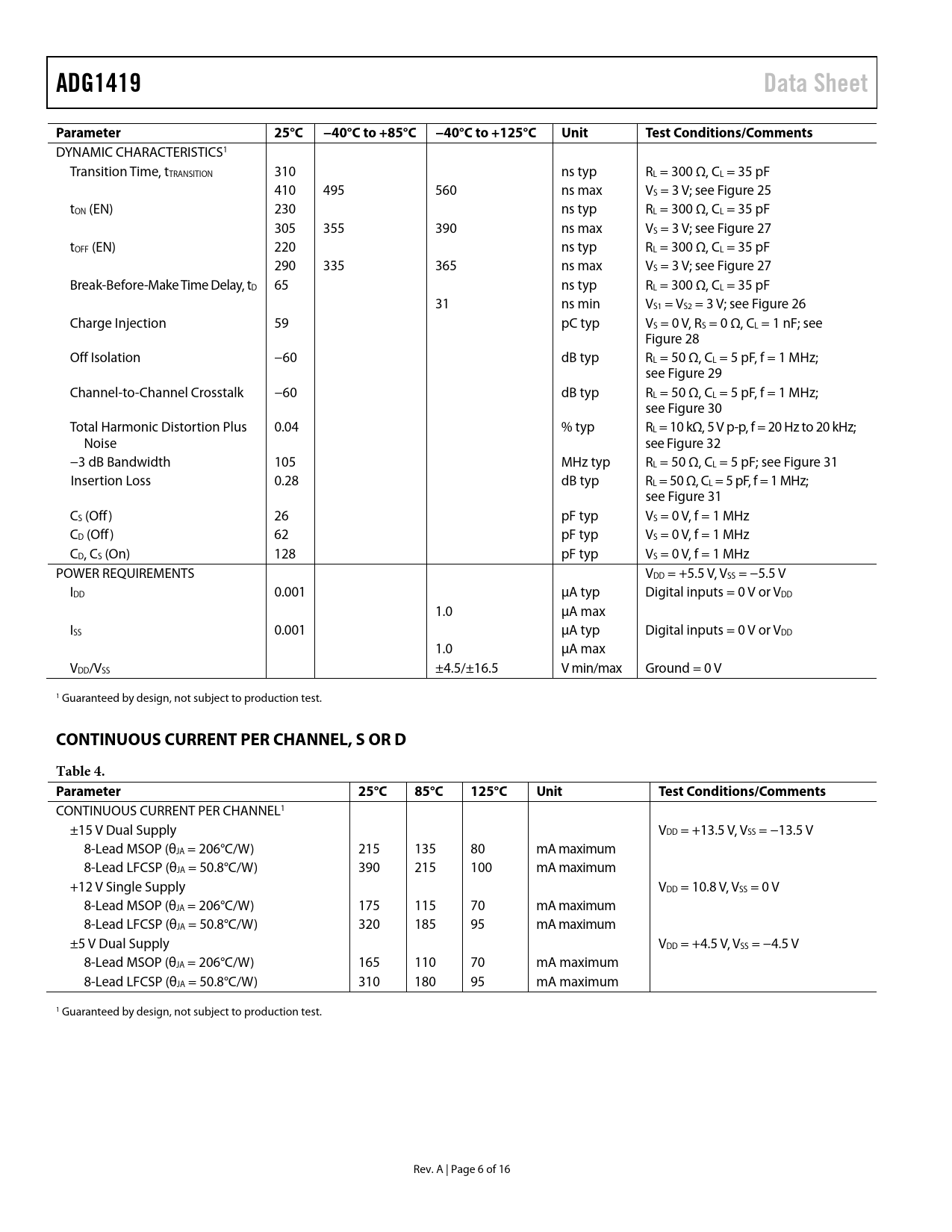

ADG1419 Data Sheet Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 310 ns typ RL = 300 Ω, CL = 35 pF 410 495 560 ns max VS = 3 V; see Figure 25 tON (EN) 230 ns typ RL = 300 Ω, CL = 35 pF 305 355 390 ns max VS = 3 V; see Figure 27 tOFF (EN) 220 ns typ RL = 300 Ω, CL = 35 pF 290 335 365 ns max VS = 3 V; see Figure 27 Break-Before-Make Time Delay, tD 65 ns typ RL = 300 Ω, CL = 35 pF 31 ns min VS1 = VS2 = 3 V; see Figure 26 Charge Injection 59 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 28 Off Isolation −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 Channel-to-Channel Crosstalk −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 30 Total Harmonic Distortion Plus 0.04 % typ RL = 10 kΩ, 5 V p-p, f = 20 Hz to 20 kHz; Noise see Figure 32 −3 dB Bandwidth 105 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 31 Insertion Loss 0.28 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 31 CS (Off ) 26 pF typ VS = 0 V, f = 1 MHz CD (Off ) 62 pF typ VS = 0 V, f = 1 MHz CD, CS (On) 128 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +5.5 V, VSS = −5.5 V IDD 0.001 μA typ Digital inputs = 0 V or VDD 1.0 μA max ISS 0.001 μA typ Digital inputs = 0 V or VDD 1.0 μA max VDD/VSS ±4.5/±16.5 V min/max Ground = 0 V 1 Guaranteed by design, not subject to production test.
CONTINUOUS CURRENT PER CHANNEL, S OR D Table 4. Parameter 25°C 85°C 125°C Unit Test Conditions/Comments
CONTINUOUS CURRENT PER CHANNEL1 ±15 V Dual Supply VDD = +13.5 V, VSS = −13.5 V 8-Lead MSOP (θJA = 206°C/W) 215 135 80 mA maximum 8-Lead LFCSP (θJA = 50.8°C/W) 390 215 100 mA maximum +12 V Single Supply VDD = 10.8 V, VSS = 0 V 8-Lead MSOP (θJA = 206°C/W) 175 115 70 mA maximum 8-Lead LFCSP (θJA = 50.8°C/W) 320 185 95 mA maximum ±5 V Dual Supply VDD = +4.5 V, VSS = −4.5 V 8-Lead MSOP (θJA = 206°C/W) 165 110 70 mA maximum 8-Lead LFCSP (θJA = 50.8°C/W) 310 180 95 mA maximum 1 Guaranteed by design, not subject to production test. Rev. A | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY +12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
ADG1419 Data Sheet Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 310 ns typ RL = 300 Ω, CL = 35 pF 410 495 560 ns max VS = 3 V; see Figure 25 tON (EN) 230 ns typ RL = 300 Ω, CL = 35 pF 305 355 390 ns max VS = 3 V; see Figure 27 tOFF (EN) 220 ns typ RL = 300 Ω, CL = 35 pF 290 335 365 ns max VS = 3 V; see Figure 27 Break-Before-Make Time Delay, tD 65 ns typ RL = 300 Ω, CL = 35 pF 31 ns min VS1 = VS2 = 3 V; see Figure 26 Charge Injection 59 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 28 Off Isolation −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 Channel-to-Channel Crosstalk −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 30 Total Harmonic Distortion Plus 0.04 % typ RL = 10 kΩ, 5 V p-p, f = 20 Hz to 20 kHz; Noise see Figure 32 −3 dB Bandwidth 105 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 31 Insertion Loss 0.28 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 31 CS (Off ) 26 pF typ VS = 0 V, f = 1 MHz CD (Off ) 62 pF typ VS = 0 V, f = 1 MHz CD, CS (On) 128 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +5.5 V, VSS = −5.5 V IDD 0.001 μA typ Digital inputs = 0 V or VDD 1.0 μA max ISS 0.001 μA typ Digital inputs = 0 V or VDD 1.0 μA max VDD/VSS ±4.5/±16.5 V min/max Ground = 0 V 1 Guaranteed by design, not subject to production test.
CONTINUOUS CURRENT PER CHANNEL, S OR D Table 4. Parameter 25°C 85°C 125°C Unit Test Conditions/Comments
CONTINUOUS CURRENT PER CHANNEL1 ±15 V Dual Supply VDD = +13.5 V, VSS = −13.5 V 8-Lead MSOP (θJA = 206°C/W) 215 135 80 mA maximum 8-Lead LFCSP (θJA = 50.8°C/W) 390 215 100 mA maximum +12 V Single Supply VDD = 10.8 V, VSS = 0 V 8-Lead MSOP (θJA = 206°C/W) 175 115 70 mA maximum 8-Lead LFCSP (θJA = 50.8°C/W) 320 185 95 mA maximum ±5 V Dual Supply VDD = +4.5 V, VSS = −4.5 V 8-Lead MSOP (θJA = 206°C/W) 165 110 70 mA maximum 8-Lead LFCSP (θJA = 50.8°C/W) 310 180 95 mA maximum 1 Guaranteed by design, not subject to production test. Rev. A | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY +12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
