Datasheet ADG1419 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 2.1 Ω On Resistance, ±15 V/+12 V/±5 V, iCMOS SPDT Switch |
| Páginas / Página | 16 / 5 — Data Sheet. ADG1419. Parameter. 25°C. −40°C to +85°C. −40°C to +125°C. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 442 Kb |
| Idioma del documento | Inglés |

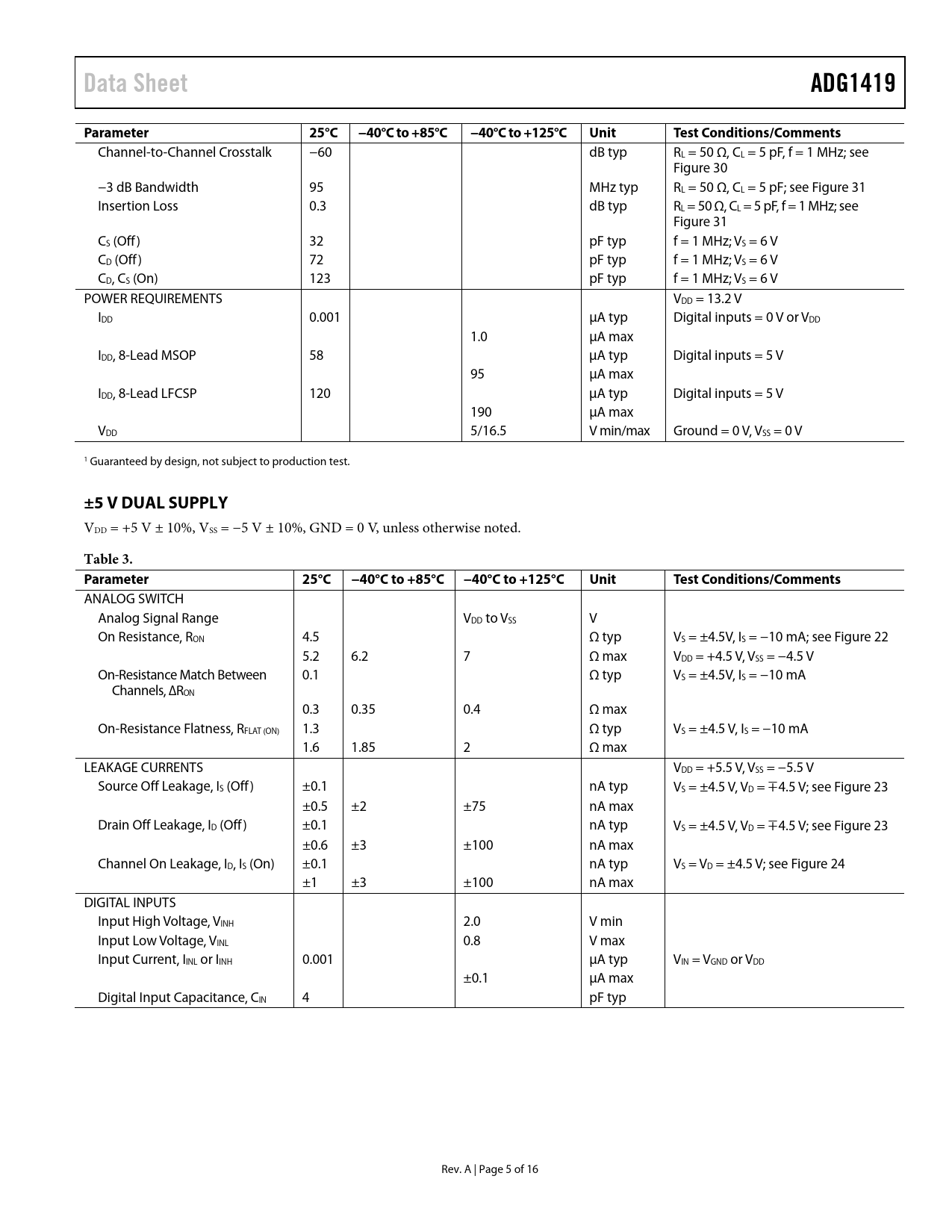

Data Sheet. ADG1419. Parameter. 25°C. −40°C to +85°C. −40°C to +125°C. Unit. Test Conditions/Comments. ±5 V DUAL SUPPLY
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 13 link to page 13 link to page 13 link to page 12 link to page 12 link to page 12 link to page 12
Data Sheet ADG1419 Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
Channel-to-Channel Crosstalk −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 30 −3 dB Bandwidth 95 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 31 Insertion Loss 0.3 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 31 CS (Off ) 32 pF typ f = 1 MHz; VS = 6 V CD (Off ) 72 pF typ f = 1 MHz; VS = 6 V CD, CS (On) 123 pF typ f = 1 MHz; VS = 6 V POWER REQUIREMENTS VDD = 13.2 V IDD 0.001 μA typ Digital inputs = 0 V or VDD 1.0 μA max IDD, 8-Lead MSOP 58 μA typ Digital inputs = 5 V 95 μA max IDD, 8-Lead LFCSP 120 μA typ Digital inputs = 5 V 190 μA max VDD 5/16.5 V min/max Ground = 0 V, VSS = 0 V 1 Guaranteed by design, not subject to production test.
±5 V DUAL SUPPLY
VDD = +5 V ± 10%, VSS = −5 V ± 10%, GND = 0 V, unless otherwise noted.
Table 3. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance, RON 4.5 Ω typ VS = ±4.5V, IS = −10 mA; see Figure 22 5.2 6.2 7 Ω max VDD = +4.5 V, VSS = −4.5 V On-Resistance Match Between 0.1 Ω typ VS = ±4.5V, IS = −10 mA Channels, ∆RON 0.3 0.35 0.4 Ω max On-Resistance Flatness, RFLAT (ON) 1.3 Ω typ VS = ±4.5 V, IS = −10 mA 1.6 1.85 2 Ω max LEAKAGE CURRENTS VDD = +5.5 V, VSS = −5.5 V Source Off Leakage, IS (Off ) ±0.1 nA typ VS = ±4.5 V, VD = ∓4.5 V; see Figure 23 ±0.5 ±2 ±75 nA max Drain Off Leakage, ID (Off ) ±0.1 nA typ VS = ±4.5 V, VD = ∓4.5 V; see Figure 23 ±0.6 ±3 ±100 nA max Channel On Leakage, ID, IS (On) ±0.1 nA typ VS = VD = ±4.5 V; see Figure 24 ±1 ±3 ±100 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.001 μA typ VIN = VGND or VDD ±0.1 μA max Digital Input Capacitance, CIN 4 pF typ Rev. A | Page 5 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY +12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
