Datasheet ADG5421F (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | ±60 V Fault Protection and Detection, 11 Ω RON, Dual SPST Switch |
| Páginas / Página | 31 / 5 — Data Sheet. ADG5421F. Parameter. +25°C. −40°C to +85°C −40°C to +125°C … |
| Formato / tamaño de archivo | PDF / 594 Kb |
| Idioma del documento | Inglés |

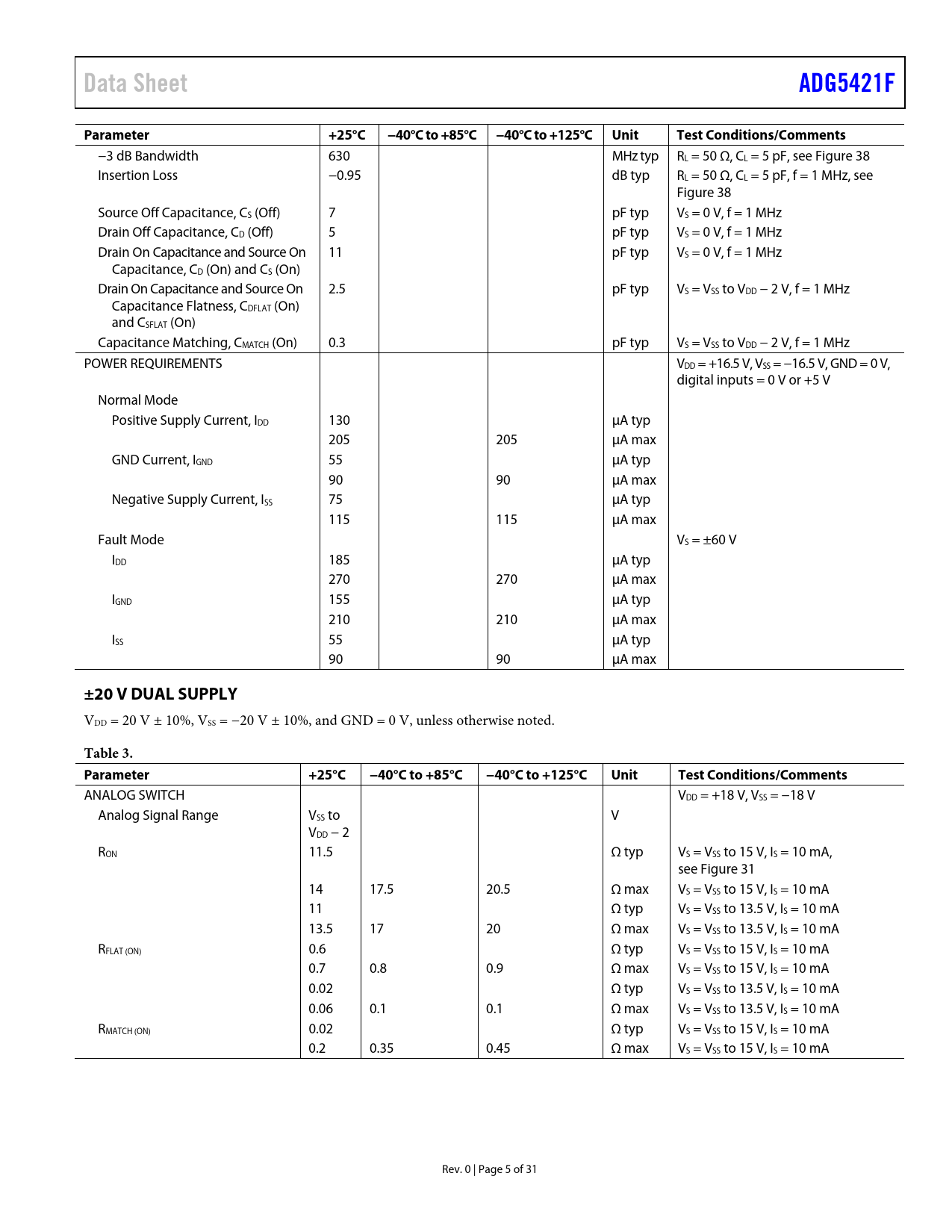

Data Sheet. ADG5421F. Parameter. +25°C. −40°C to +85°C −40°C to +125°C Unit. Test Conditions/Comments. ±20 V DUAL SUPPLY
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 22 link to page 22 link to page 21
Data Sheet ADG5421F Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
−3 dB Bandwidth 630 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 38 Insertion Loss −0.95 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 38 Source Off Capacitance, CS (Off) 7 pF typ VS = 0 V, f = 1 MHz Drain Off Capacitance, CD (Off) 5 pF typ VS = 0 V, f = 1 MHz Drain On Capacitance and Source On 11 pF typ VS = 0 V, f = 1 MHz Capacitance, CD (On) and CS (On) Drain On Capacitance and Source On 2.5 pF typ VS = VSS to VDD − 2 V, f = 1 MHz Capacitance Flatness, CDFLAT (On) and CSFLAT (On) Capacitance Matching, CMATCH (On) 0.3 pF typ VS = VSS to VDD − 2 V, f = 1 MHz POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V, GND = 0 V, digital inputs = 0 V or +5 V Normal Mode Positive Supply Current, IDD 130 µA typ 205 205 µA max GND Current, IGND 55 µA typ 90 90 µA max Negative Supply Current, ISS 75 µA typ 115 115 µA max Fault Mode VS = ±60 V IDD 185 µA typ 270 270 µA max IGND 155 µA typ 210 210 µA max ISS 55 µA typ 90 90 µA max
±20 V DUAL SUPPLY
VDD = 20 V ± 10%, VSS = −20 V ± 10%, and GND = 0 V, unless otherwise noted.
Table 3. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
