Datasheet 1N5221B -1N5252B (ON Semiconductor) - 5
| Fabricante | ON Semiconductor |
| Descripción | Zener Diodes |
| Páginas / Página | 6 / 5 — PACKAGE DIMENSIONS. AXIAL LEAD. DOCUMENT NUMBER: 98AON13443G. … |
| Revisión | 4 |
| Formato / tamaño de archivo | PDF / 143 Kb |
| Idioma del documento | Inglés |
PACKAGE DIMENSIONS. AXIAL LEAD. DOCUMENT NUMBER: 98AON13443G. DESCRIPTION:. PAGE 1 OF 1
Línea de modelo para esta hoja de datos
- 1N5221B 1N5222B 1N5223B 1N5225B 1N5226B 1N5226BTR 1N5227B 1N5227BTR 1N5228B 1N5228BTR 1N5229B 1N5229BTR 1N5230B 1N5230BTR 1N5231B 1N5231BTR 1N5231C 1N5231CTR 1N5232B 1N5232BTR 1N5233B 1N5233BTR 1N5234B 1N5234BTR 1N5234C 1N5234CTR 1N5235B 1N5235BTR 1N5236B 1N5236BTR 1N5237B 1N5237BTR 1N5238B 1N5239B 1N5239BTR 1N5240B 1N5240BTR 1N5241B 1N5241BTR 1N5242B 1N5242BTR 1N5243B 1N5243BTR 1N5244B 1N5244BTR 1N5245B 1N5245BTR 1N5246B 1N5246BTR 1N5247B 1N5247BTR 1N5248B 1N5248BTR 1N5249B 1N5249BTR 1N5250B 1N5250BTR 1N5251B 1N5251BTR 1N5252B 1N5252BTR 1N5253B 1N5254B 1N5254BTR 1N5255B 1N5256B 1N5256BTR 1N5257B 1N5259B 1N5260B 1N5261B 1N5262B 1N5263B
Versión de texto del documento
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS AXIAL LEAD

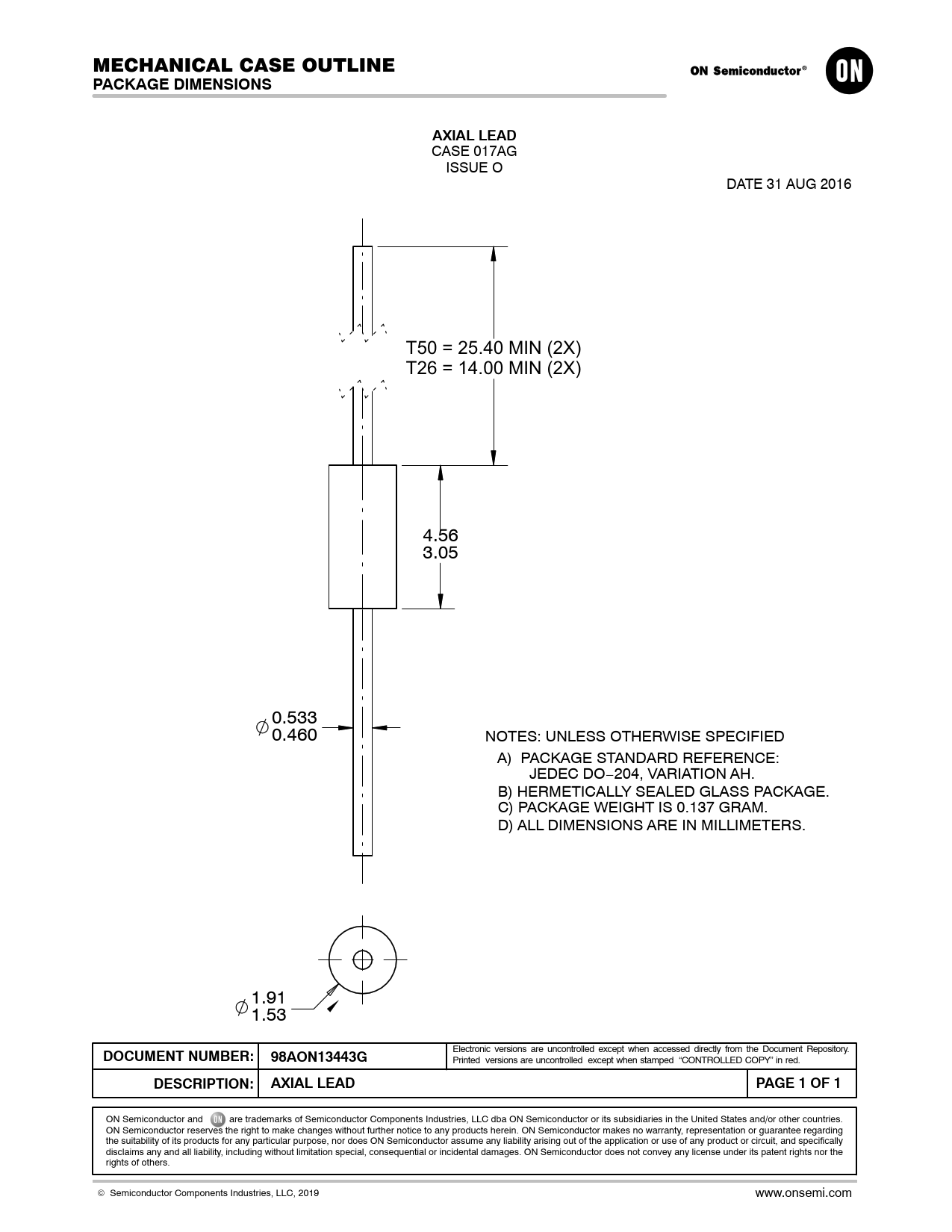

CASE 017AG ISSUE O DATE 31 AUG 2016 T50 = 25.40 MIN (2X) T26 = 14.00 MIN (2X) 4.56 3.05 0.533 0.460 NOTES: UNLESS OTHERWISE SPECIFIED A) PACKAGE STANDARD REFERENCE: JEDEC DO−204, VARIATION AH. B) HERMETICALLY SEALED GLASS PACKAGE. C) PACKAGE WEIGHT IS 0.137 GRAM. D) ALL DIMENSIONS ARE IN MILLIMETERS. 1.91 1.53
