Datasheet 1N5221B -1N5252B (ON Semiconductor) - 2
| Fabricante | ON Semiconductor |
| Descripción | Zener Diodes |
| Páginas / Página | 6 / 2 — 1N5221B − 1N5252B. ELECTRICAL CHARACTERISTICS. VZ (V) @ IZ. Device. Min. … |
| Revisión | 4 |
| Formato / tamaño de archivo | PDF / 143 Kb |
| Idioma del documento | Inglés |
1N5221B − 1N5252B. ELECTRICAL CHARACTERISTICS. VZ (V) @ IZ. Device. Min. Typ. Max. ZZ (W) @ IZ (mA). ZZK (W) @ IZK (mA). IR (mA) @ VR (V)
Línea de modelo para esta hoja de datos
- 1N5221B 1N5222B 1N5223B 1N5225B 1N5226B 1N5226BTR 1N5227B 1N5227BTR 1N5228B 1N5228BTR 1N5229B 1N5229BTR 1N5230B 1N5230BTR 1N5231B 1N5231BTR 1N5231C 1N5231CTR 1N5232B 1N5232BTR 1N5233B 1N5233BTR 1N5234B 1N5234BTR 1N5234C 1N5234CTR 1N5235B 1N5235BTR 1N5236B 1N5236BTR 1N5237B 1N5237BTR 1N5238B 1N5239B 1N5239BTR 1N5240B 1N5240BTR 1N5241B 1N5241BTR 1N5242B 1N5242BTR 1N5243B 1N5243BTR 1N5244B 1N5244BTR 1N5245B 1N5245BTR 1N5246B 1N5246BTR 1N5247B 1N5247BTR 1N5248B 1N5248BTR 1N5249B 1N5249BTR 1N5250B 1N5250BTR 1N5251B 1N5251BTR 1N5252B 1N5252BTR 1N5253B 1N5254B 1N5254BTR 1N5255B 1N5256B 1N5256BTR 1N5257B 1N5259B 1N5260B 1N5261B 1N5262B 1N5263B
Versión de texto del documento
link to page 2

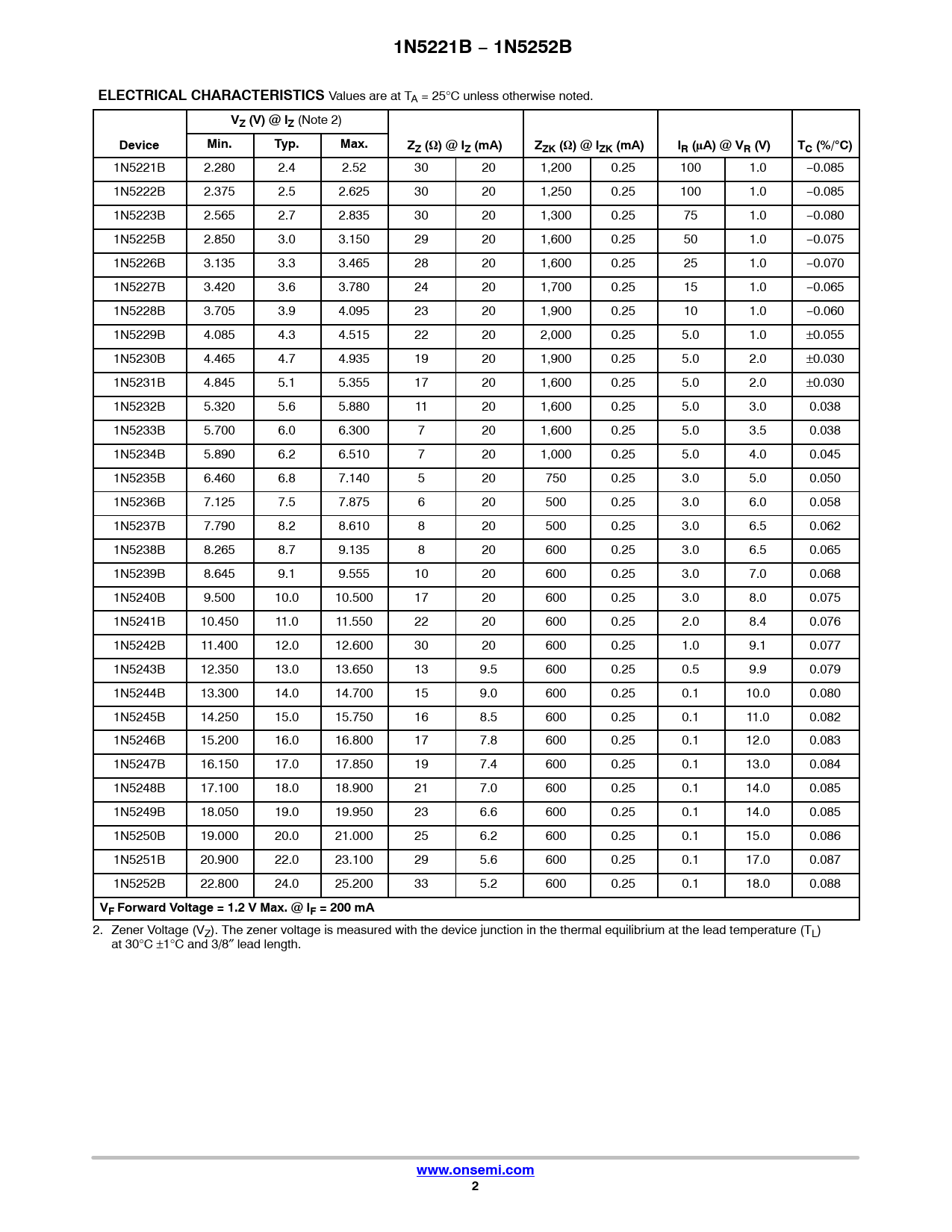

1N5221B − 1N5252B ELECTRICAL CHARACTERISTICS
Values are at TA = 25°C unless otherwise noted.
VZ (V) @ IZ
(Note 2)
Device Min. Typ. Max. ZZ (W) @ IZ (mA) ZZK (W) @ IZK (mA) IR (mA) @ VR (V) TC (%/
5
C)
1N5221B 2.280 2.4 2.52 30 20 1,200 0.25 100 1.0 −0.085 1N5222B 2.375 2.5 2.625 30 20 1,250 0.25 100 1.0 −0.085 1N5223B 2.565 2.7 2.835 30 20 1,300 0.25 75 1.0 −0.080 1N5225B 2.850 3.0 3.150 29 20 1,600 0.25 50 1.0 −0.075 1N5226B 3.135 3.3 3.465 28 20 1,600 0.25 25 1.0 −0.070 1N5227B 3.420 3.6 3.780 24 20 1,700 0.25 15 1.0 −0.065 1N5228B 3.705 3.9 4.095 23 20 1,900 0.25 10 1.0 −0.060 1N5229B 4.085 4.3 4.515 22 20 2,000 0.25 5.0 1.0 ±0.055 1N5230B 4.465 4.7 4.935 19 20 1,900 0.25 5.0 2.0 ±0.030 1N5231B 4.845 5.1 5.355 17 20 1,600 0.25 5.0 2.0 ±0.030 1N5232B 5.320 5.6 5.880 11 20 1,600 0.25 5.0 3.0 0.038 1N5233B 5.700 6.0 6.300 7 20 1,600 0.25 5.0 3.5 0.038 1N5234B 5.890 6.2 6.510 7 20 1,000 0.25 5.0 4.0 0.045 1N5235B 6.460 6.8 7.140 5 20 750 0.25 3.0 5.0 0.050 1N5236B 7.125 7.5 7.875 6 20 500 0.25 3.0 6.0 0.058 1N5237B 7.790 8.2 8.610 8 20 500 0.25 3.0 6.5 0.062 1N5238B 8.265 8.7 9.135 8 20 600 0.25 3.0 6.5 0.065 1N5239B 8.645 9.1 9.555 10 20 600 0.25 3.0 7.0 0.068 1N5240B 9.500 10.0 10.500 17 20 600 0.25 3.0 8.0 0.075 1N5241B 10.450 11.0 11.550 22 20 600 0.25 2.0 8.4 0.076 1N5242B 11.400 12.0 12.600 30 20 600 0.25 1.0 9.1 0.077 1N5243B 12.350 13.0 13.650 13 9.5 600 0.25 0.5 9.9 0.079 1N5244B 13.300 14.0 14.700 15 9.0 600 0.25 0.1 10.0 0.080 1N5245B 14.250 15.0 15.750 16 8.5 600 0.25 0.1 11.0 0.082 1N5246B 15.200 16.0 16.800 17 7.8 600 0.25 0.1 12.0 0.083 1N5247B 16.150 17.0 17.850 19 7.4 600 0.25 0.1 13.0 0.084 1N5248B 17.100 18.0 18.900 21 7.0 600 0.25 0.1 14.0 0.085 1N5249B 18.050 19.0 19.950 23 6.6 600 0.25 0.1 14.0 0.085 1N5250B 19.000 20.0 21.000 25 6.2 600 0.25 0.1 15.0 0.086 1N5251B 20.900 22.0 23.100 29 5.6 600 0.25 0.1 17.0 0.087 1N5252B 22.800 24.0 25.200 33 5.2 600 0.25 0.1 18.0 0.088
VF Forward Voltage = 1.2 V Max. @ IF = 200 mA
2. Zener Voltage (VZ). The zener voltage is measured with the device junction in the thermal equilibrium at the lead temperature (TL) at 30°C ±1°C and 3/8″ lead length.
www.onsemi.com 2
