BUZ 171. Electrical Characteristics,. Parameter. Symbol. Values. Unit. min. typ. max. Reverse Diode
Línea de modelo para esta hoja de datos
Versión de texto del documento

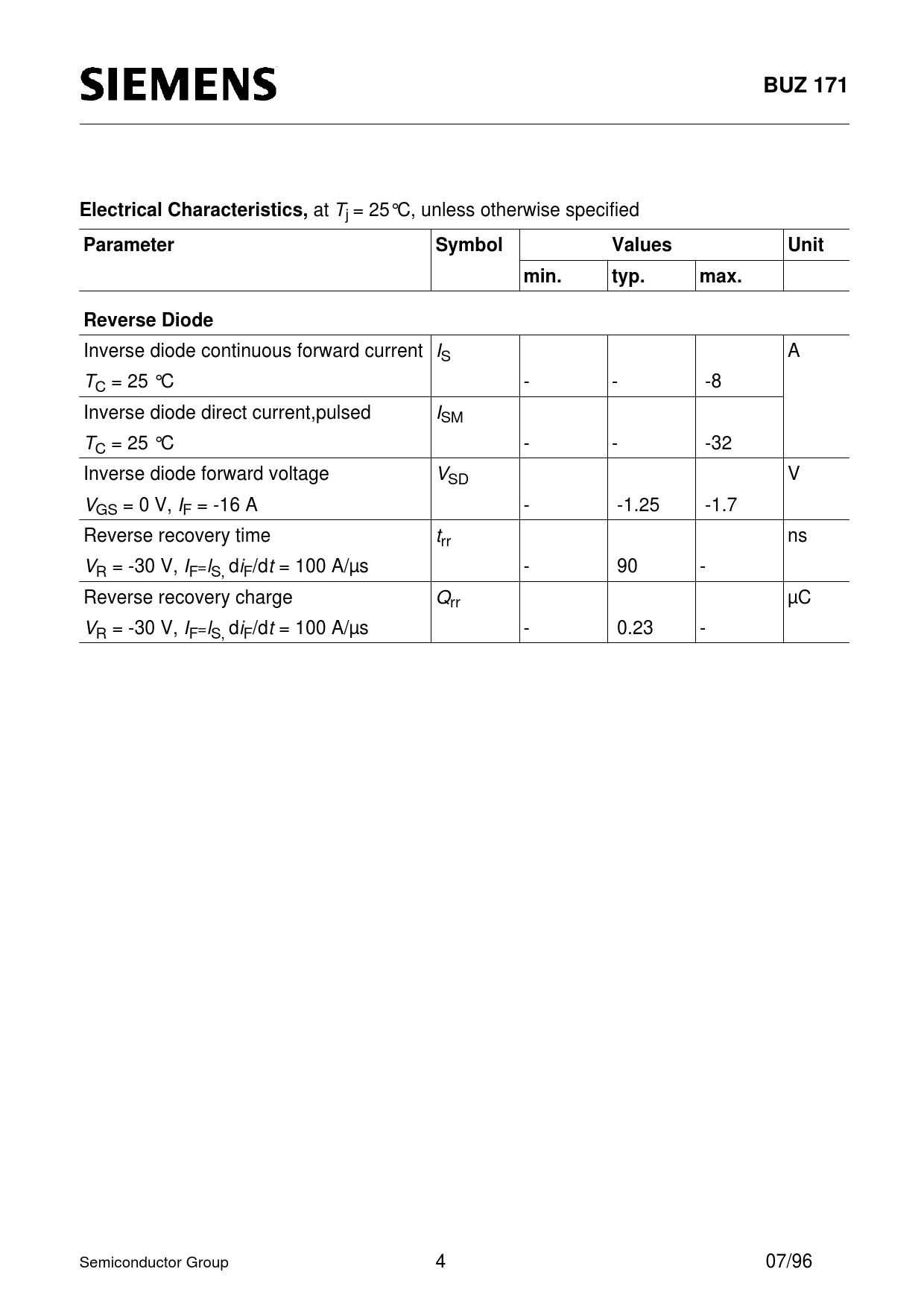

BUZ 171 Electrical Characteristics,
at Tj = 25°C, unless otherwise specified
Parameter Symbol Values Unit min. typ. max. Reverse Diode
Inverse diode continuous forward current IS A TC = 25 °C - - -8 Inverse diode direct current,pulsed ISM TC = 25 °C - - -32 Inverse diode forward voltage VSD V VGS = 0 V, IF = -16 A - -1.25 -1.7 Reverse recovery time trr ns VR = -30 V, IF=lS, diF/dt = 100 A/µs - 90 - Reverse recovery charge Qrr µC VR = -30 V, IF=lS, diF/dt = 100 A/µs - 0.23 - Semiconductor Group 4 07/96
at Tj = 25°C, unless otherwise specified
Parameter Symbol Values Unit min. typ. max. Reverse Diode
Inverse diode continuous forward current IS A TC = 25 °C - - -8 Inverse diode direct current,pulsed ISM TC = 25 °C - - -32 Inverse diode forward voltage VSD V VGS = 0 V, IF = -16 A - -1.25 -1.7 Reverse recovery time trr ns VR = -30 V, IF=lS, diF/dt = 100 A/µs - 90 - Reverse recovery charge Qrr µC VR = -30 V, IF=lS, diF/dt = 100 A/µs - 0.23 - Semiconductor Group 4 07/96
