Typical Operating Characteristics (continued). SUPPLY CURRENT vs. INPUT VOLTAGE. 0.1Hz TO 10Hz OUTPUT NOISE. (VOUT = 5V)
Línea de modelo para esta hoja de datos
Versión de texto del documento
MAX6033 High-Precision, Low-Dropout SOT23 Series Voltage Reference

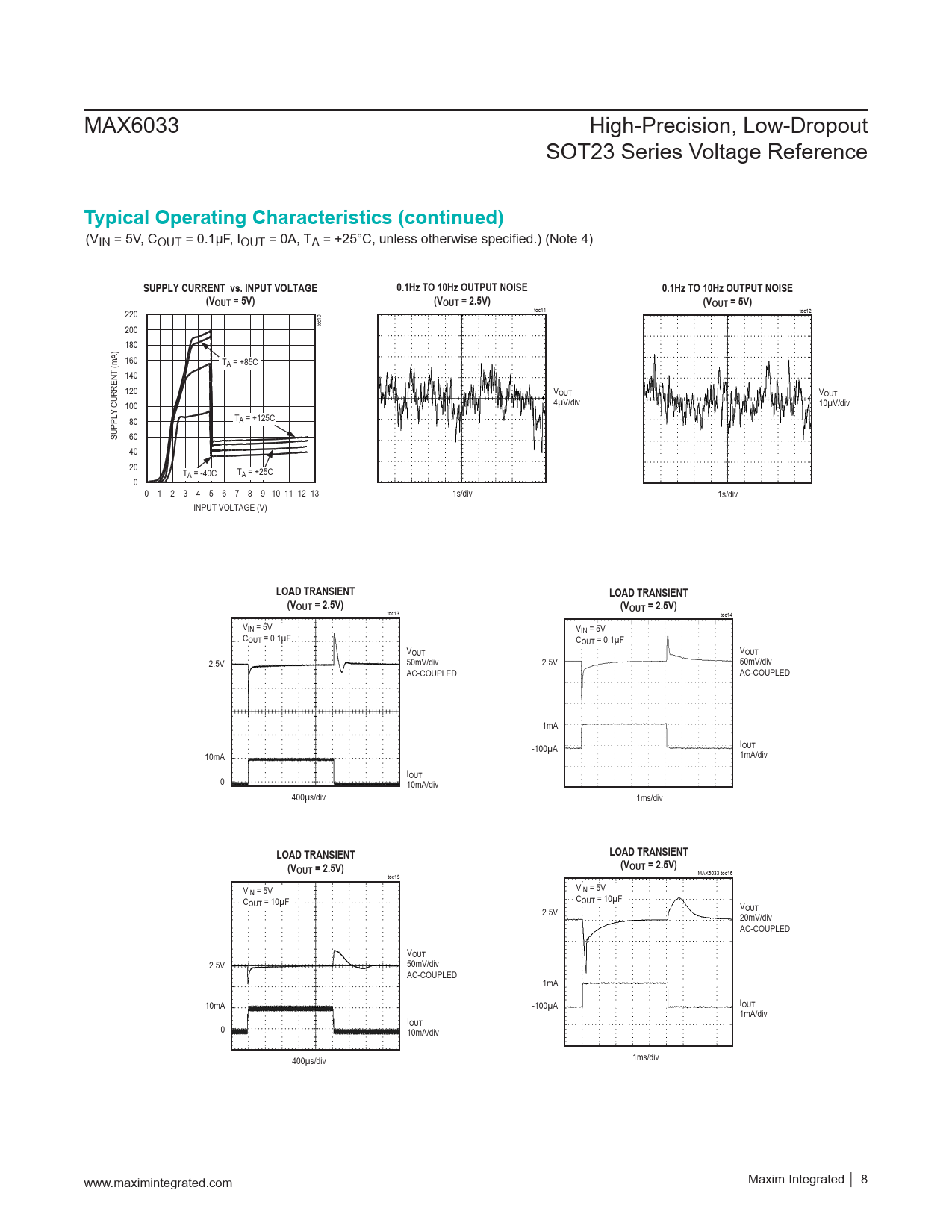

Typical Operating Characteristics (continued)
(VIN = 5V, COUT = 0.1µF, IOUT = 0A, TA = +25°C, unless otherwise specified.) (Note 4)
SUPPLY CURRENT vs. INPUT VOLTAGE 0.1Hz TO 10Hz OUTPUT NOISE 0.1Hz TO 10Hz OUTPUT NOISE (VOUT = 5V) (VOUT = 2.5V) (VOUT = 5V)
toc11 toc12 220 toc10 200 180 160 TA = +85C 140 120 VOUT VOUT 4µV/div 10µV/div 100 80 TA = +125C SUPPLY CURRENT (mA) 60 40 20 T T A = -40C A = +25C 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 1s/div 1s/div INPUT VOLTAGE (V)
LOAD TRANSIENT LOAD TRANSIENT (VOUT = 2.5V) (VOUT = 2.5V)
toc13 toc14 VIN = 5V VIN = 5V COUT = 0.1µF COUT = 0.1µF VOUT VOUT 2.5V 50mV/div 2.5V 50mV/div AC-COUPLED AC-COUPLED 1mA -100µA IOUT 1mA/div 10mA I 0 OUT 10mA/div 400µs/div 1ms/div
LOAD TRANSIENT LOAD TRANSIENT (V (V OUT = 2.5V) OUT = 2.5V)
MAX6033 toc16 toc15 V V IN = 5V IN = 5V C C OUT = 10µF OUT = 10µF 2.5V VOUT 20mV/div AC-COUPLED VOUT 2.5V 50mV/div AC-COUPLED 1mA 10mA -100µA IOUT 1mA/div I 0 OUT 10mA/div 1ms/div 400µs/div www.maximintegrated.com Maxim Integrated │ 8 Document Outline _GoBack
