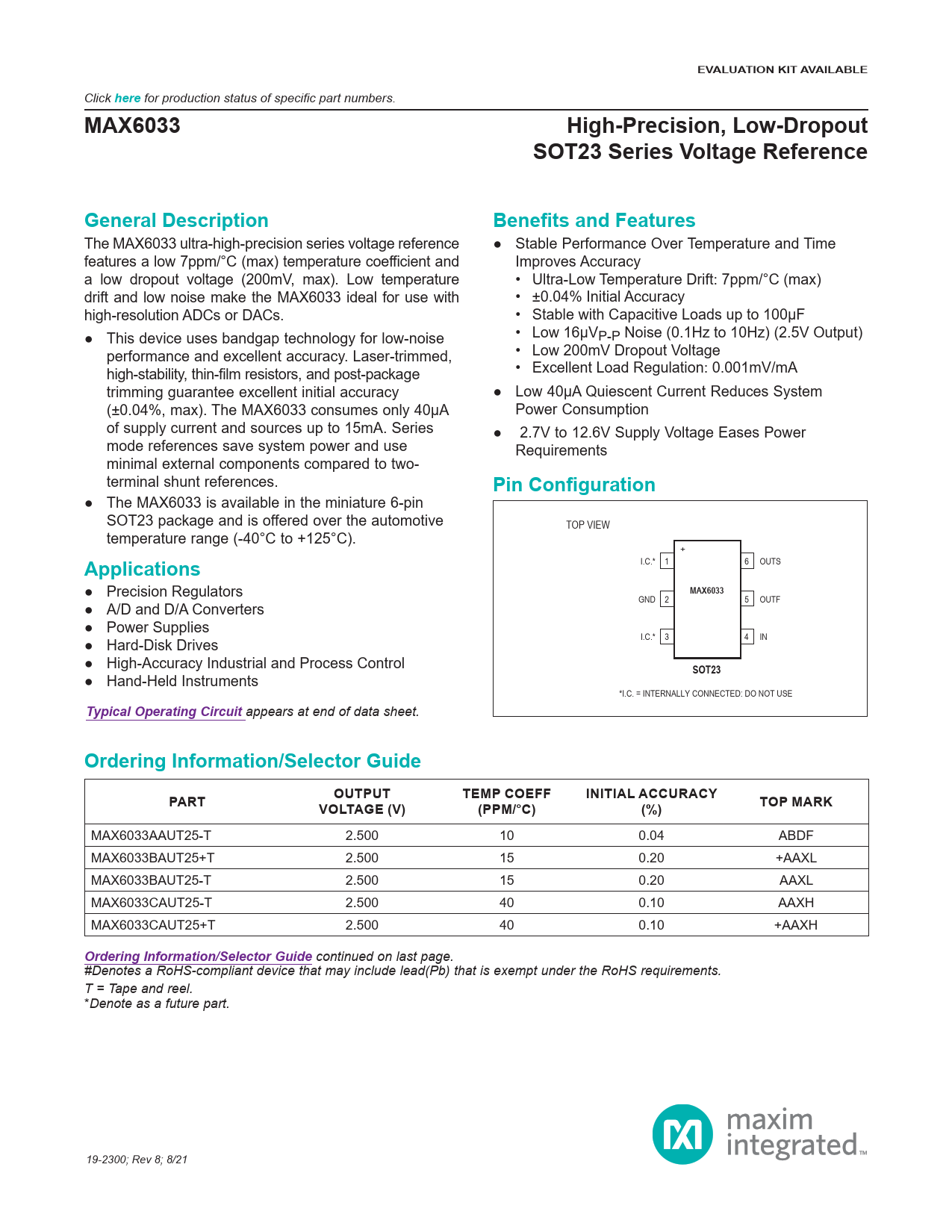

EVALUATION KIT AVAILABLE. here. MAX6033. High-Precision, Low-Dropout. SOT23 Series Voltage Reference. General Description
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 12 link to page 11
EVALUATION KIT AVAILABLE
Click
here
for production status of specific part numbers.
MAX6033 High-Precision, Low-Dropout SOT23 Series Voltage Reference General Description Benefits and Features
The MAX6033 ultra-high-precision series voltage reference ● Stable Performance Over Temperature and Time features a low 7ppm/°C (max) temperature coefficient and Improves Accuracy a low dropout voltage (200mV, max). Low temperature • Ultra-Low Temperature Drift: 7ppm/°C (max) drift and low noise make the MAX6033 ideal for use with • ±0.04% Initial Accuracy high-resolution ADCs or DACs. • Stable with Capacitive Loads up to 100µF ● This device uses bandgap technology for low-noise • Low 16μVP-P Noise (0.1Hz to 10Hz) (2.5V Output) performance and excellent accuracy. Laser-trimmed, • Low 200mV Dropout Voltage high-stability, thin-film resistors, and post-package • Excellent Load Regulation: 0.001mV/mA trimming guarantee excellent initial accuracy ● Low 40μA Quiescent Current Reduces System (±0.04%, max). The MAX6033 consumes only 40µA Power Consumption of supply current and sources up to 15mA. Series ● 2.7V to 12.6V Supply Voltage Eases Power mode references save system power and use Requirements minimal external components compared to two- terminal shunt references.
Pin Configuration
● The MAX6033 is available in the miniature 6-pin SOT23 package and is offered over the automotive TOP VIEW temperature range (-40°C to +125°C). +
Applications
I.C.* 1 6 OUTS ● Precision Regulators
MAX6033
GND 2 5 OUTF ● A/D and D/A Converters ● Power Supplies ● Hard-Disk Drives I.C.* 3 4 IN ● High-Accuracy Industrial and Process Control
SOT23
● Hand-Held Instruments *I.C. = INTERNALLY CONNECTED: DO NOT USE
Typical Operating Circuit
appears at end of data sheet.
Ordering Information/Selector Guide PART OUTPUT TEMP COEFF INITIAL ACCURACY VOLTAGE (V) (PPM/°C) (%) TOP MARK
MAX6033AAUT25-T 2.500 10 0.04 ABDF MAX6033BAUT25+T 2.500 15 0.20 +AAXL MAX6033BAUT25-T 2.500 15 0.20 AAXL MAX6033CAUT25-T 2.500 40 0.10 AAXH MAX6033CAUT25+T 2.500 40 0.10 +AAXH
Ordering Information/Selector Guide
continued on last page. #Denotes a RoHS-compliant device that may include lead(Pb) that is exempt under the RoHS requirements. T = Tape and reel. *Denote as a future part. 19-2300; Rev 8; 8/21 Document Outline _GoBack
