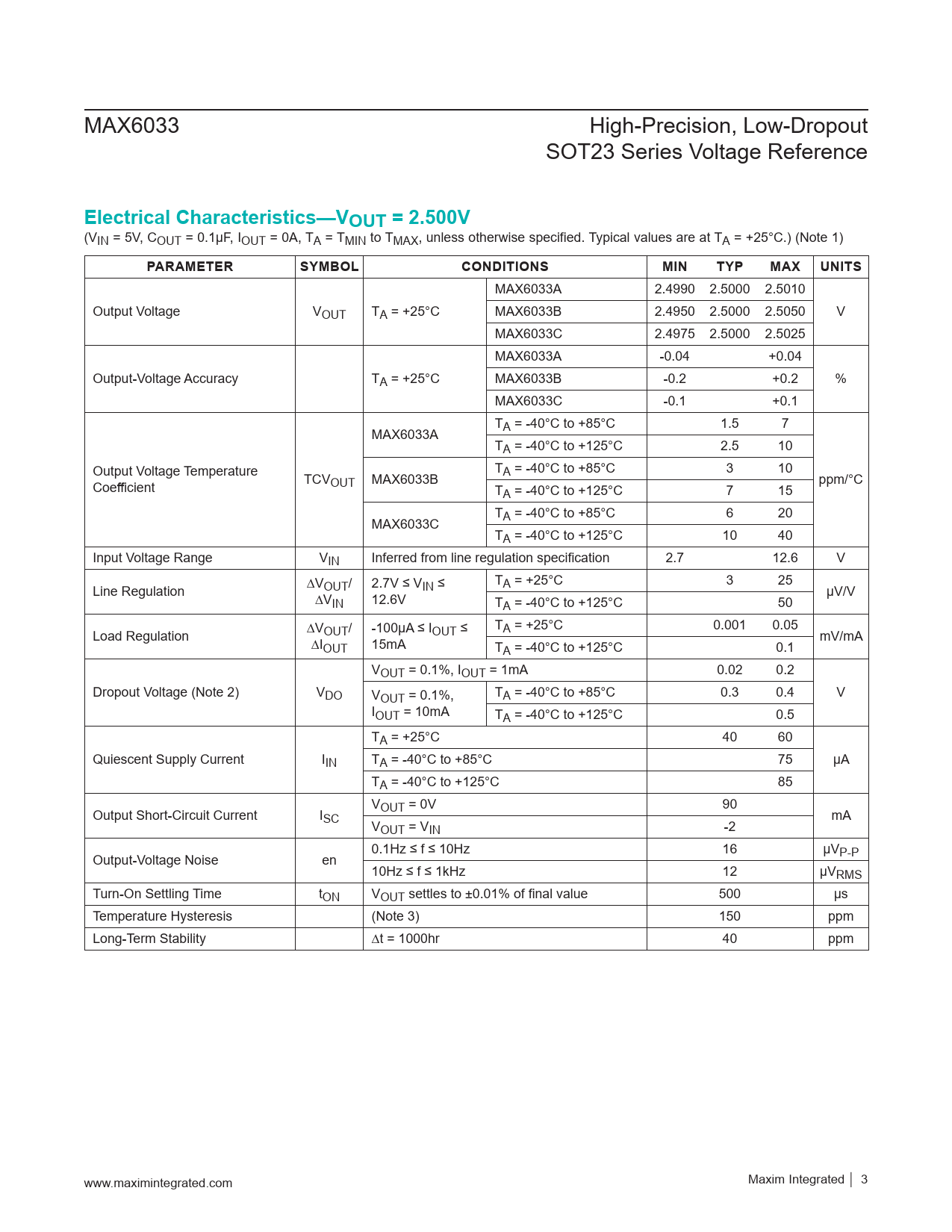

Datasheet MAX6033 (Maxim) - 3

MAX6033 High-Precision, Low-Dropout SOT23 Series Voltage Reference
Electrical Characteristics—VOUT = 2.500V
(VIN = 5V, COUT = 0.1µF, IOUT = 0A, TA = TMIN to TMAX, unless otherwise specified. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
MAX6033A 2.4990 2.5000 2.5010 Output Voltage VOUT TA = +25°C MAX6033B 2.4950 2.5000 2.5050 V MAX6033C 2.4975 2.5000 2.5025 MAX6033A -0.04 +0.04 Output-Voltage Accuracy TA = +25°C MAX6033B -0.2 +0.2 % MAX6033C -0.1 +0.1 T MAX6033A A = -40°C to +85°C 1.5 7 TA = -40°C to +125°C 2.5 10 Output Voltage Temperature TA = -40°C to +85°C 3 10 Coefficient TCVOUT MAX6033B ppm/°C TA = -40°C to +125°C 7 15 T MAX6033C A = -40°C to +85°C 6 20 TA = -40°C to +125°C 10 40 Input Voltage Range VIN Inferred from line regulation specification 2.7 12.6 V T Line Regulation ∆VOUT/ 2.7V ≤ VIN ≤ A = +25°C 3 25 ∆V µV/V IN 12.6V TA = -40°C to +125°C 50 T Load Regulation ∆VOUT/ -100µA ≤ IOUT ≤ A = +25°C 0.001 0.05 ∆I mV/mA OUT 15mA TA = -40°C to +125°C 0.1 VOUT = 0.1%, IOUT = 1mA 0.02 0.2 Dropout Voltage (Note 2) VDO V TA = -40°C to +85°C 0.3 0.4 V OUT = 0.1%, IOUT = 10mA TA = -40°C to +125°C 0.5 TA = +25°C 40 60 Quiescent Supply Current IIN TA = -40°C to +85°C 75 µA TA = -40°C to +125°C 85 V Output Short-Circuit Current I OUT = 0V 90 SC mA VOUT = VIN -2 0.1Hz ≤ f ≤ 10Hz 16 µV Output-Voltage Noise en P-P 10Hz ≤ f ≤ 1kHz 12 µVRMS Turn-On Settling Time tON VOUT settles to ±0.01% of final value 500 µs Temperature Hysteresis (Note 3) 150 ppm Long-Term Stability ∆t = 1000hr 40 ppm www.maximintegrated.com Maxim Integrated │ 3 Document Outline _GoBack
