Datasheet TCK126BG (Toshiba) - 4
| Fabricante | Toshiba |
| Descripción | 0.08 nA Ultra small IQ 1.0 A Load Switch IC in Ultra Small Package |
| Páginas / Página | 13 / 4 — TCK126BG. AC Characteristics (Ta = 25°C). VIN = 1.2 V. VIN = 3.3 V. AC … |
| Formato / tamaño de archivo | PDF / 996 Kb |
| Idioma del documento | Inglés |
TCK126BG. AC Characteristics (Ta = 25°C). VIN = 1.2 V. VIN = 3.3 V. AC Waveform. VCT. OUT. Figure 1 tr, tf, tON, tOFF Waveforms
Línea de modelo para esta hoja de datos
Versión de texto del documento

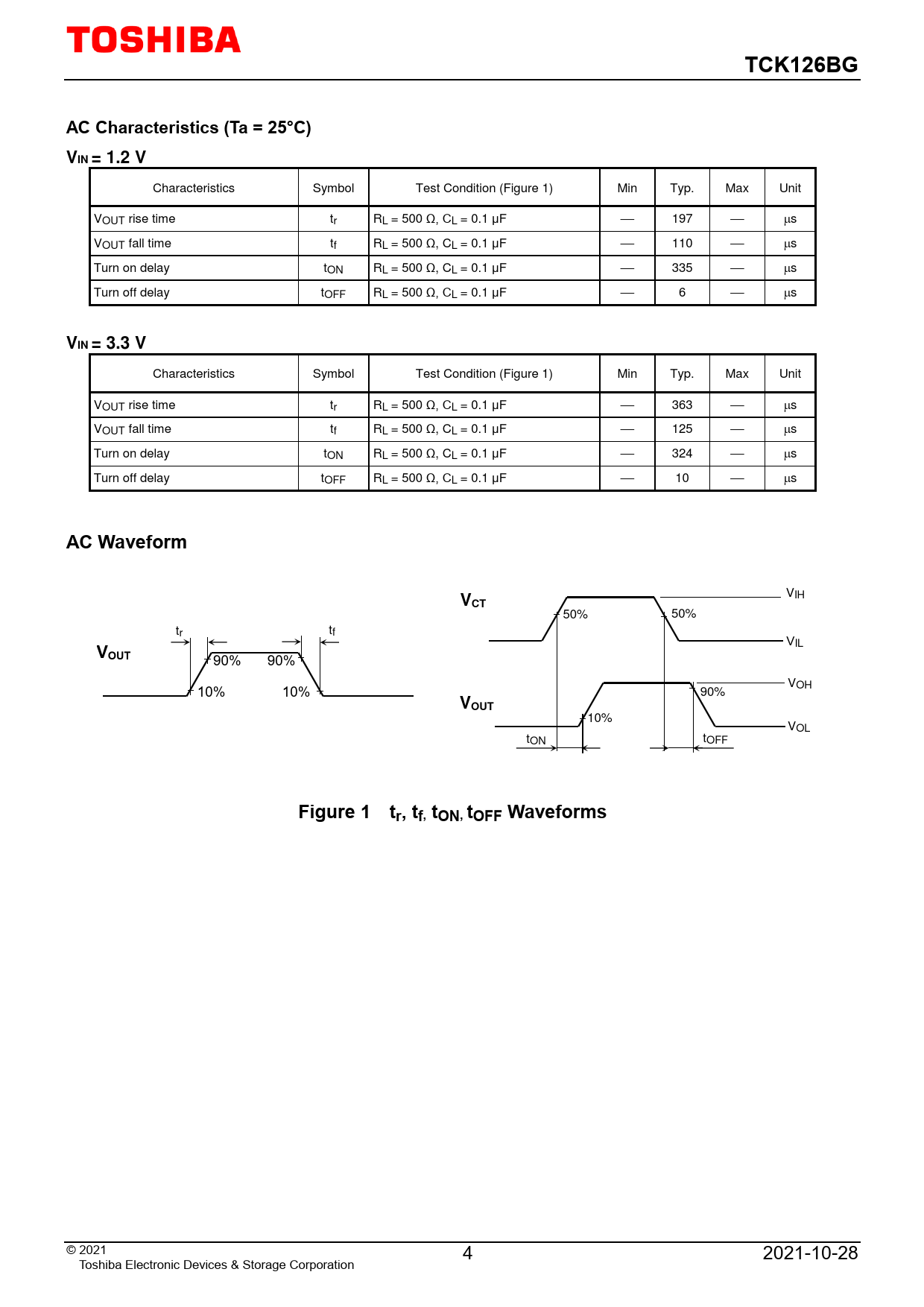

TCK126BG AC Characteristics (Ta = 25°C) VIN = 1.2 V
Characteristics Symbol Test Condition (Figure 1) Min Typ. Max Unit VOUT rise time tr RL = 500 Ω, CL = 0.1 μF 197 s VOUT fall time tf RL = 500 Ω, CL = 0.1 μF 110 s Turn on delay tON RL = 500 Ω, CL = 0.1 μF 335 s Turn off delay tOFF RL = 500 Ω, CL = 0.1 μF 6 s
VIN = 3.3 V
Characteristics Symbol Test Condition (Figure 1) Min Typ. Max Unit VOUT rise time tr RL = 500 Ω, CL = 0.1 μF 363 s VOUT fall time tf RL = 500 Ω, CL = 0.1 μF 125 s Turn on delay tON RL = 500 Ω, CL = 0.1 μF 324 s Turn off delay tOFF RL = 500 Ω, CL = 0.1 μF 10 s
AC Waveform
VIH
VCT
50% 50% tr tf VIL
V OUT
90% 90% VOH 10% 10% 90%
V OUT
10% V OL tON tOFF
Figure 1 tr, tf, tON, tOFF Waveforms
© 2021 4 2021-10-28 Toshiba Electronic Devices & Storage Corporation
Characteristics Symbol Test Condition (Figure 1) Min Typ. Max Unit VOUT rise time tr RL = 500 Ω, CL = 0.1 μF 197 s VOUT fall time tf RL = 500 Ω, CL = 0.1 μF 110 s Turn on delay tON RL = 500 Ω, CL = 0.1 μF 335 s Turn off delay tOFF RL = 500 Ω, CL = 0.1 μF 6 s
VIN = 3.3 V
Characteristics Symbol Test Condition (Figure 1) Min Typ. Max Unit VOUT rise time tr RL = 500 Ω, CL = 0.1 μF 363 s VOUT fall time tf RL = 500 Ω, CL = 0.1 μF 125 s Turn on delay tON RL = 500 Ω, CL = 0.1 μF 324 s Turn off delay tOFF RL = 500 Ω, CL = 0.1 μF 10 s
AC Waveform
VIH
VCT
50% 50% tr tf VIL
V OUT
90% 90% VOH 10% 10% 90%
V OUT
10% V OL tON tOFF
Figure 1 tr, tf, tON, tOFF Waveforms
© 2021 4 2021-10-28 Toshiba Electronic Devices & Storage Corporation
