Datasheet TCK126BG (Toshiba)
| Fabricante | Toshiba |
| Descripción | 0.08 nA Ultra small IQ 1.0 A Load Switch IC in Ultra Small Package |
| Páginas / Página | 13 / 1 — TCK126BG. 0.08 nA Ultra small IQ 1.0 A Load Switch IC in Ultra Small … |
| Formato / tamaño de archivo | PDF / 996 Kb |
| Idioma del documento | Inglés |
TCK126BG. 0.08 nA Ultra small IQ 1.0 A Load Switch IC in Ultra Small Package. Feature. Pin Assignment(Top view) Top marking
Línea de modelo para esta hoja de datos
Versión de texto del documento

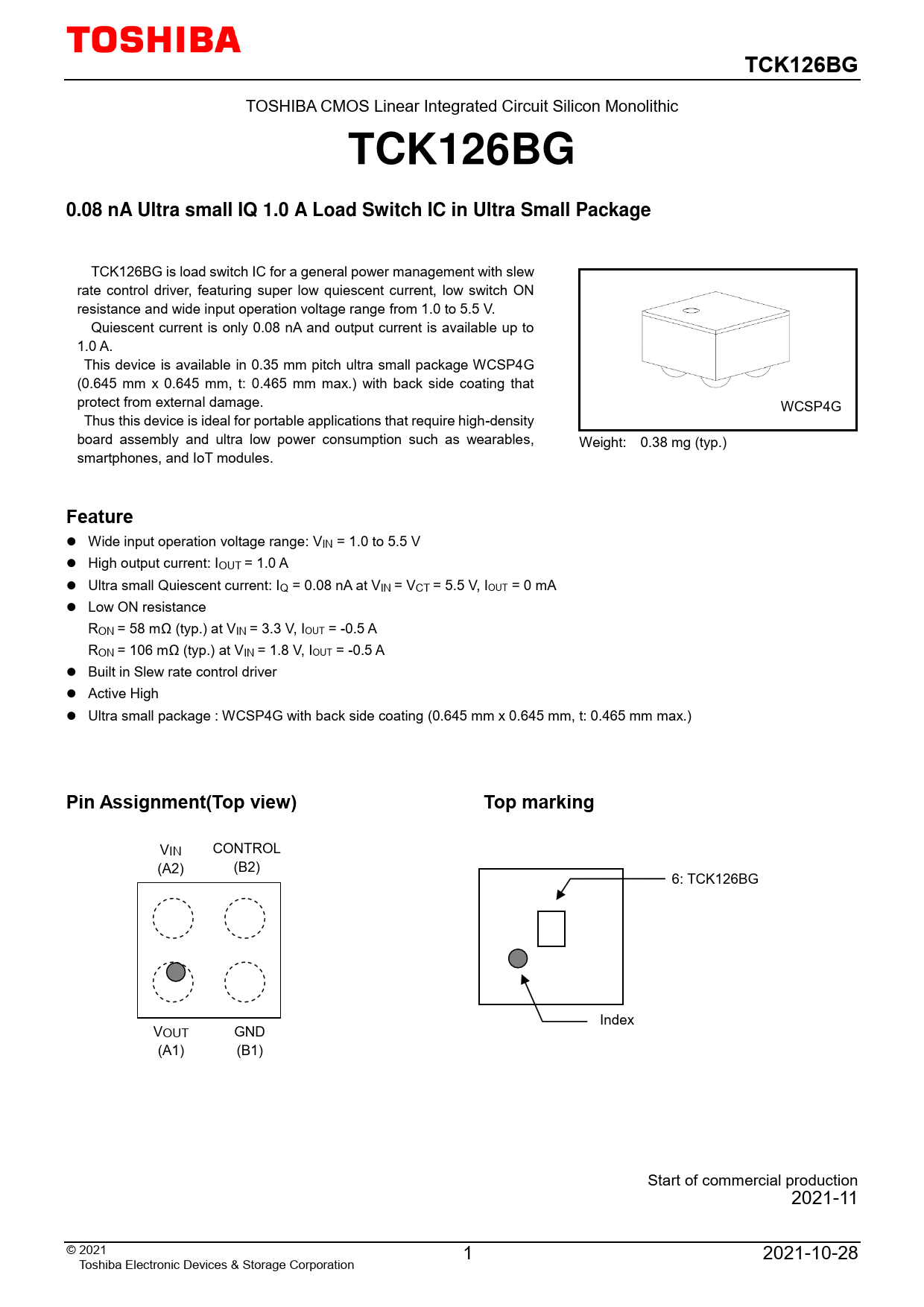

TCK126BG
TOSHIBA CMOS Linear Integrated Circuit Silicon Monolithic
TCK126BG 0.08 nA Ultra small IQ 1.0 A Load Switch IC in Ultra Small Package
TCK126BG is load switch IC for a general power management with slew rate control driver, featuring super low quiescent current, low switch ON resistance and wide input operation voltage range from 1.0 to 5.5 V. Quiescent current is only 0.08 nA and output current is available up to 1.0 A. This device is available in 0.35 mm pitch ultra smal package WCSP4G (0.645 mm x 0.645 mm, t: 0.465 mm max.) with back side coating that protect from external damage. WCSP4G Thus this device is ideal for portable applications that require high-density board assembly and ultra low power consumption such as wearables, Weight: 0.38 mg (typ.) smartphones, and IoT modules.
Feature
Wide input operation voltage range: VIN = 1.0 to 5.5 V High output current: IOUT = 1.0 A Ultra smal Quiescent current: IQ = 0.08 nA at VIN = VCT = 5.5 V, IOUT = 0 mA Low ON resistance RON = 58 mΩ (typ.) at VIN = 3.3 V, IOUT = -0.5 A RON = 106 mΩ (typ.) at VIN = 1.8 V, IOUT = -0.5 A Built in Slew rate control driver Active High Ultra smal package : WCSP4G with back side coating (0.645 mm x 0.645 mm, t: 0.465 mm max.)
Pin Assignment(Top view) Top marking
VIN CONTROL (A2) (B2) 6: TCK126BG Index VOUT GND (A1) (B1) Start of commercial production 2021-11 © 2021 1 2021-10-28 Toshiba Electronic Devices & Storage Corporation
TOSHIBA CMOS Linear Integrated Circuit Silicon Monolithic
TCK126BG 0.08 nA Ultra small IQ 1.0 A Load Switch IC in Ultra Small Package
TCK126BG is load switch IC for a general power management with slew rate control driver, featuring super low quiescent current, low switch ON resistance and wide input operation voltage range from 1.0 to 5.5 V. Quiescent current is only 0.08 nA and output current is available up to 1.0 A. This device is available in 0.35 mm pitch ultra smal package WCSP4G (0.645 mm x 0.645 mm, t: 0.465 mm max.) with back side coating that protect from external damage. WCSP4G Thus this device is ideal for portable applications that require high-density board assembly and ultra low power consumption such as wearables, Weight: 0.38 mg (typ.) smartphones, and IoT modules.
Feature
Wide input operation voltage range: VIN = 1.0 to 5.5 V High output current: IOUT = 1.0 A Ultra smal Quiescent current: IQ = 0.08 nA at VIN = VCT = 5.5 V, IOUT = 0 mA Low ON resistance RON = 58 mΩ (typ.) at VIN = 3.3 V, IOUT = -0.5 A RON = 106 mΩ (typ.) at VIN = 1.8 V, IOUT = -0.5 A Built in Slew rate control driver Active High Ultra smal package : WCSP4G with back side coating (0.645 mm x 0.645 mm, t: 0.465 mm max.)
Pin Assignment(Top view) Top marking
VIN CONTROL (A2) (B2) 6: TCK126BG Index VOUT GND (A1) (B1) Start of commercial production 2021-11 © 2021 1 2021-10-28 Toshiba Electronic Devices & Storage Corporation
