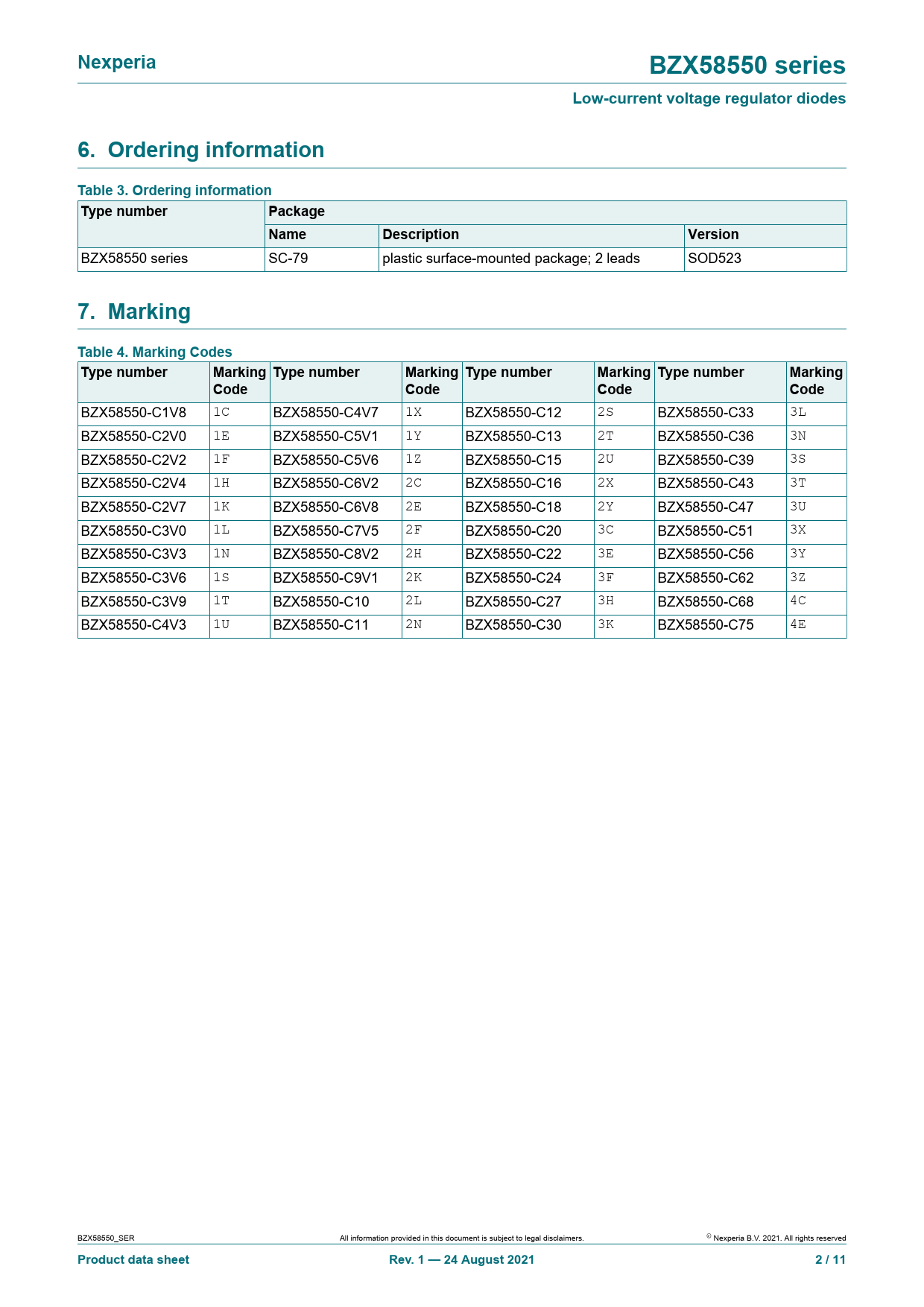

Nexperia BZX58550 series Low-current voltage regulator diodes 6. Ordering information Table 3. Ordering information Type number Package Name Description Version
BZX58550 series SC-79 plastic surface-mounted package; 2 leads SOD523
7. Marking Table 4. Marking Codes Type number Marking Type number Marking Type number Marking Type number Marking Code Code Code Code
BZX58550-C1V8 1C BZX58550-C4V7 1X BZX58550-C12 2S BZX58550-C33 3L BZX58550-C2V0 1E BZX58550-C5V1 1Y BZX58550-C13 2T BZX58550-C36 3N BZX58550-C2V2 1F BZX58550-C5V6 1Z BZX58550-C15 2U BZX58550-C39 3S BZX58550-C2V4 1H BZX58550-C6V2 2C BZX58550-C16 2X BZX58550-C43 3T BZX58550-C2V7 1K BZX58550-C6V8 2E BZX58550-C18 2Y BZX58550-C47 3U BZX58550-C3V0 1L BZX58550-C7V5 2F BZX58550-C20 3C BZX58550-C51 3X BZX58550-C3V3 1N BZX58550-C8V2 2H BZX58550-C22 3E BZX58550-C56 3Y BZX58550-C3V6 1S BZX58550-C9V1 2K BZX58550-C24 3F BZX58550-C62 3Z BZX58550-C3V9 1T BZX58550-C10 2L BZX58550-C27 3H BZX58550-C68 4C BZX58550-C4V3 1U BZX58550-C11 2N BZX58550-C30 3K BZX58550-C75 4E BZX58550_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 1 — 24 August 2021 2 / 11
