Datasheet BZX58550 (Nexperia) - 5
| Fabricante | Nexperia |
| Descripción | Low-current voltage regulator diodes |
| Páginas / Página | 11 / 5 — Nexperia. BZX58550 series. Low-current voltage regulator diodes |
| Revisión | 24082021 |
| Formato / tamaño de archivo | PDF / 237 Kb |
| Idioma del documento | Inglés |
Nexperia. BZX58550 series. Low-current voltage regulator diodes
Línea de modelo para esta hoja de datos
- BZX58550-C10X BZX58550-C11X BZX58550-C12X BZX58550-C13X BZX58550-C15X BZX58550-C16X BZX58550-C18X BZX58550-C1V8X BZX58550-C20X BZX58550-C22X BZX58550-C24X BZX58550-C27X BZX58550-C2V0X BZX58550-C2V2X BZX58550-C2V4X BZX58550-C2V7X BZX58550-C30X BZX58550-C33X BZX58550-C36X BZX58550-C39X BZX58550-C3V0X BZX58550-C3V3X BZX58550-C3V6X BZX58550-C3V9X BZX58550-C43X BZX58550-C47X BZX58550-C4V3X BZX58550-C4V7X BZX58550-C51X BZX58550-C56X BZX58550-C5V1X BZX58550-C5V6X BZX58550-C62X BZX58550-C68X BZX58550-C6V2X BZX58550-C6V8X BZX58550-C75X BZX58550-C7V5X BZX58550-C8V2X BZX58550-C9V1X
Versión de texto del documento
link to page 5

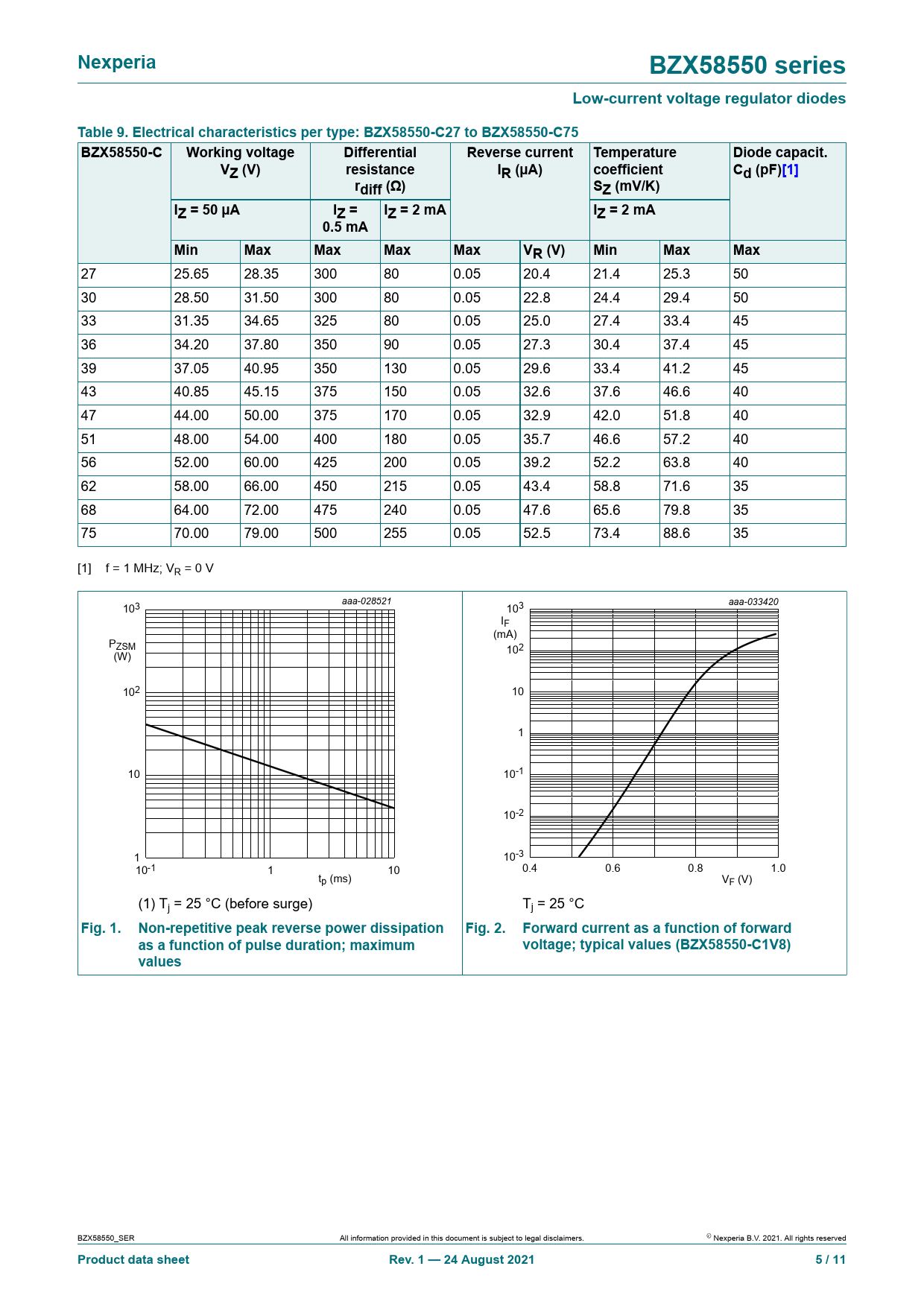

Nexperia BZX58550 series Low-current voltage regulator diodes Table 9. Electrical characteristics per type: BZX58550-C27 to BZX58550-C75 BZX58550-C Working voltage Differential Reverse current Temperature Diode capacit. VZ (V) resistance IR (µA) coefficient Cd (pF)[1] rdiff (Ω) SZ (mV/K) IZ = 50 µA IZ = IZ = 2 mA IZ = 2 mA 0.5 mA Min Max Max Max Max VR (V) Min Max Max
27 25.65 28.35 300 80 0.05 20.4 21.4 25.3 50 30 28.50 31.50 300 80 0.05 22.8 24.4 29.4 50 33 31.35 34.65 325 80 0.05 25.0 27.4 33.4 45 36 34.20 37.80 350 90 0.05 27.3 30.4 37.4 45 39 37.05 40.95 350 130 0.05 29.6 33.4 41.2 45 43 40.85 45.15 375 150 0.05 32.6 37.6 46.6 40 47 44.00 50.00 375 170 0.05 32.9 42.0 51.8 40 51 48.00 54.00 400 180 0.05 35.7 46.6 57.2 40 56 52.00 60.00 425 200 0.05 39.2 52.2 63.8 40 62 58.00 66.00 450 215 0.05 43.4 58.8 71.6 35 68 64.00 72.00 475 240 0.05 47.6 65.6 79.8 35 75 70.00 79.00 500 255 0.05 52.5 73.4 88.6 35 [1] f = 1 MHz; VR = 0 V aaa-028521 103 aaa-033420 103 IF (mA) PZSM (W) 102 102 10 1 10 10-1 10-2 1 10-3 10-1 1 10 0.4 0.6 0.8 1.0 tp (ms) VF (V) (1) Tj = 25 °C (before surge) Tj = 25 °C
Fig. 1. Non-repetitive peak reverse power dissipation Fig. 2. Forward current as a function of forward as a function of pulse duration; maximum voltage; typical values (BZX58550-C1V8) values
BZX58550_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 1 — 24 August 2021 5 / 11
Document Outline 1. General description 2. Features and benefits 3. Applications 4. Quick reference data 5. Pinning information 6. Ordering information 7. Marking 8. Limiting values 9. Thermal characteristics 10. Characteristics 11. Package outline 12. Soldering 13. Revision history 14. Legal information Contents
