Nexperia. PMEG3010EH/EJ/ET. 1 A very low VF MEGA Schottky barrier rectifiers. Thermal characteristics. Table 7. Symbol. Parameter
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4

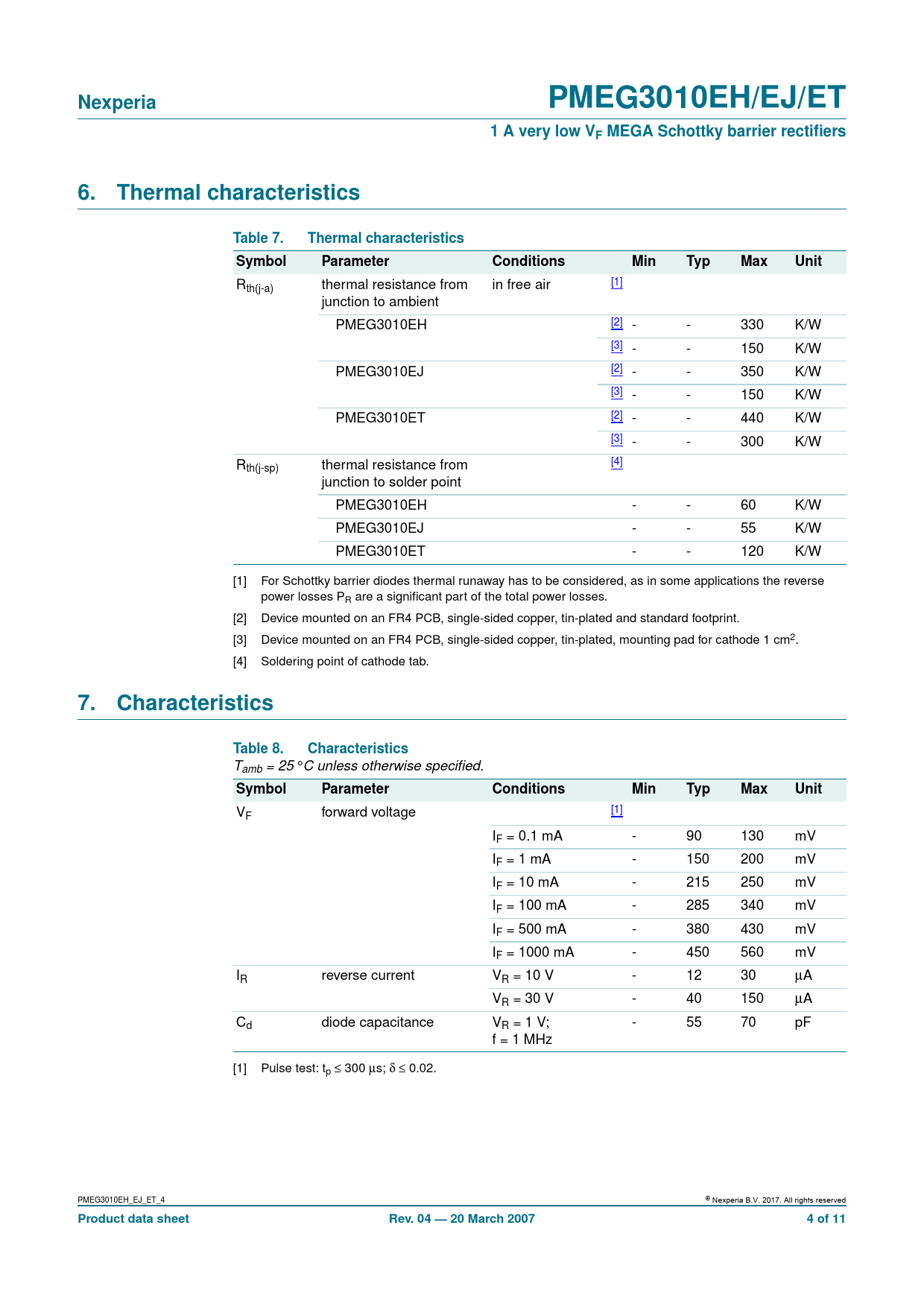

Nexperia PMEG3010EH/EJ/ET 1 A very low VF MEGA Schottky barrier rectifiers 6. Thermal characteristics Table 7. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance from in free air [1] junction to ambient PMEG3010EH [2] - - 330 K/W [3] - - 150 K/W PMEG3010EJ [2] - - 350 K/W [3] - - 150 K/W PMEG3010ET [2] - - 440 K/W [3] - - 300 K/W R [4] th(j-sp) thermal resistance from junction to solder point PMEG3010EH - - 60 K/W PMEG3010EJ - - 55 K/W PMEG3010ET - - 120 K/W [1] For Schottky barrier diodes thermal runaway has to be considered, as in some applications the reverse power losses PR are a significant part of the total power losses. [2] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. [3] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm2. [4] Soldering point of cathode tab.
7. Characteristics Table 8. Characteristics
Tamb = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
VF forward voltage [1] IF = 0.1 mA - 90 130 mV IF = 1 mA - 150 200 mV IF = 10 mA - 215 250 mV IF = 100 mA - 285 340 mV IF = 500 mA - 380 430 mV IF = 1000 mA - 450 560 mV IR reverse current VR = 10 V - 12 30 µA VR = 30 V - 40 150 µA Cd diode capacitance VR = 1 V; - 55 70 pF f = 1 MHz [1] Pulse test: tp ≤ 300 µs; δ ≤ 0.02. PMEG3010EH_EJ_ET_4 © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 04 — 20 March 2007 4 of 11
