Datasheet PMEG3010EH, PMEG3010EJ, PMEG3010ET (Nexperia) - 3
| Fabricante | Nexperia |
| Descripción | 1 A very low VF MEGA Schottky barrier rectifiers |
| Páginas / Página | 11 / 3 — Nexperia. PMEG3010EH/EJ/ET. 1 A very low VF MEGA Schottky barrier … |
| Revisión | 28082018 |
| Formato / tamaño de archivo | PDF / 670 Kb |
| Idioma del documento | Inglés |
Nexperia. PMEG3010EH/EJ/ET. 1 A very low VF MEGA Schottky barrier rectifiers. Limiting values. Table 6. Symbol. Parameter. Conditions
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 3

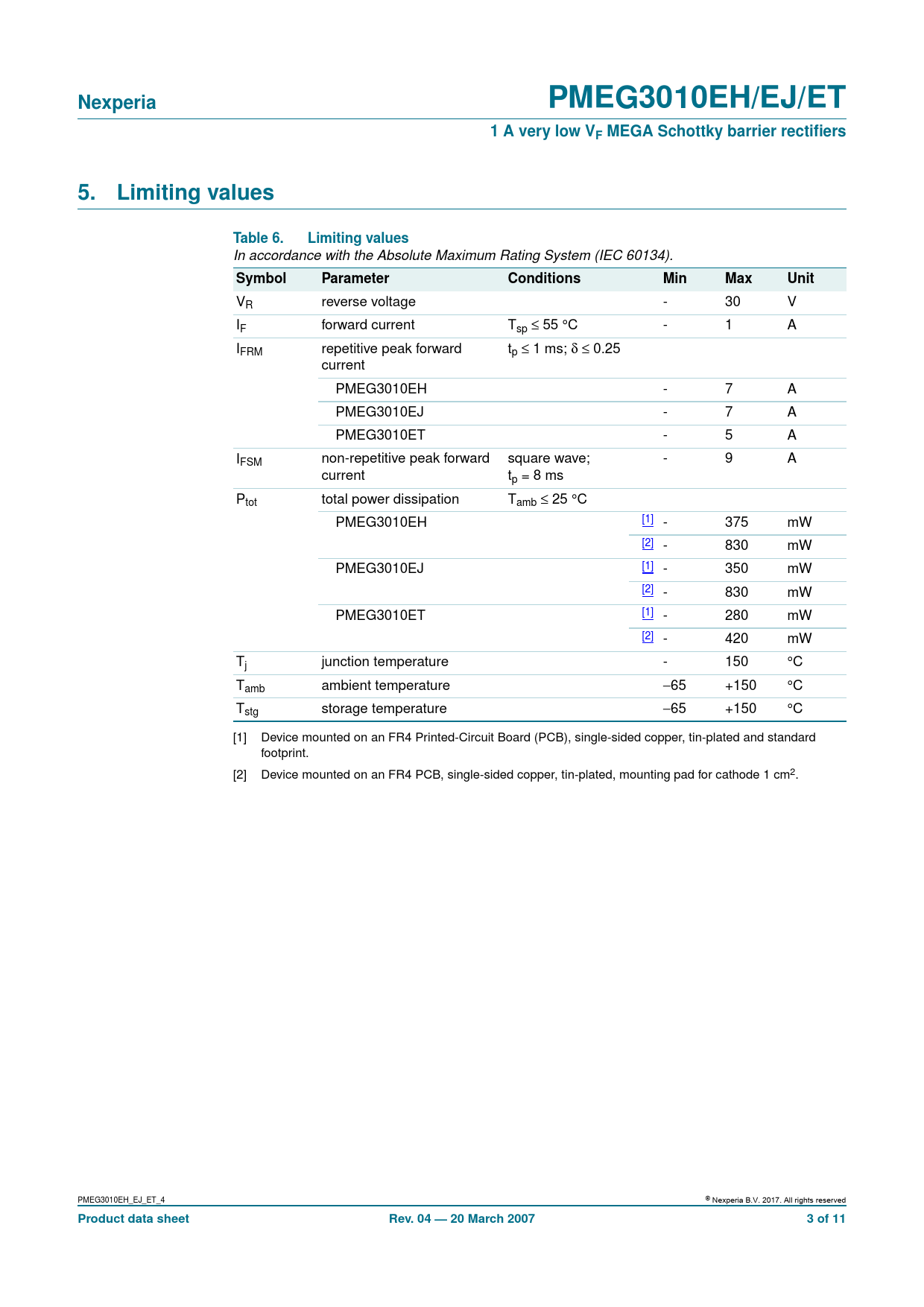

Nexperia PMEG3010EH/EJ/ET 1 A very low VF MEGA Schottky barrier rectifiers 5. Limiting values Table 6. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VR reverse voltage - 30 V I ≤ F forward current Tsp 55 °C - 1 A I ≤ FRM repetitive peak forward tp 1 ms; δ ≤ 0.25 current PMEG3010EH - 7 A PMEG3010EJ - 7 A PMEG3010ET - 5 A IFSM non-repetitive peak forward square wave; - 9 A current tp = 8 ms P ≤ tot total power dissipation Tamb 25 °C PMEG3010EH [1] - 375 mW [2] - 830 mW PMEG3010EJ [1] - 350 mW [2] - 830 mW PMEG3010ET [1] - 280 mW [2] - 420 mW Tj junction temperature - 150 °C Tamb ambient temperature −65 +150 °C Tstg storage temperature −65 +150 °C [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. [2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm2. PMEG3010EH_EJ_ET_4 © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 04 — 20 March 2007 3 of 11
