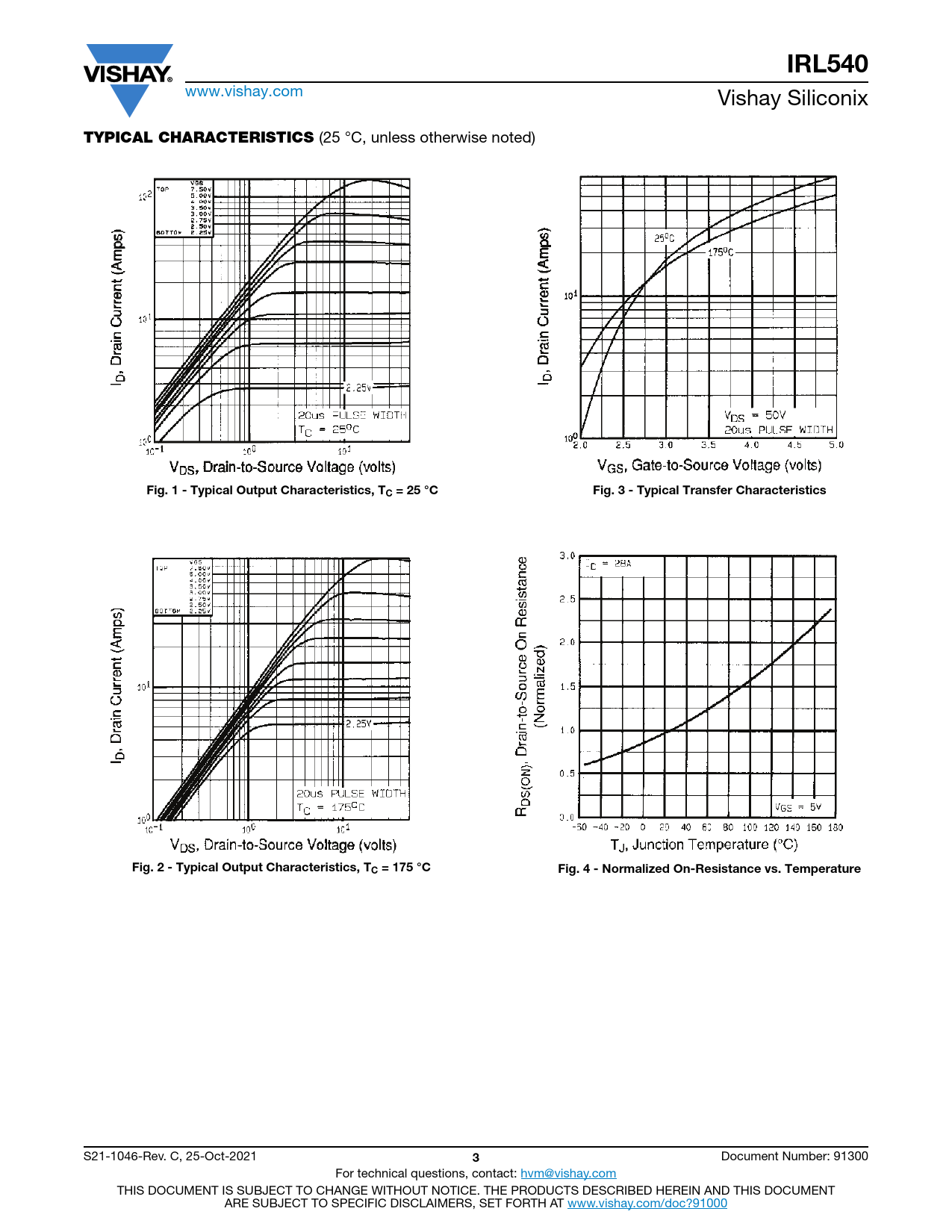

IRL540. TYPICAL CHARACTERISTICS. Fig. 1 - Typical Output Characteristics, TC = 25 °C
Línea de modelo para esta hoja de datos
Versión de texto del documento
IRL540
www.vishay.com Vishay Siliconix
TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted)
Fig. 1 - Typical Output Characteristics, TC = 25 °C Fig. 3 - Typical Transfer Characteristics Fig. 2 - Typical Output Characteristics, TC = 175 °C Fig. 4 - Normalized On-Resistance vs. Temperature
S21-1046-Rev. C, 25-Oct-2021
3
Document Number: 91300 For technical questions, contact: hvm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
