Datasheet IRL540 (Vishay) - 5
| Fabricante | Vishay |
| Descripción | Power MOSFET |
| Páginas / Página | 9 / 5 — IRL540. Fig. 10a - Switching Time Test Circuit. Fig. 9 - Maximum Safe … |
| Formato / tamaño de archivo | PDF / 259 Kb |
| Idioma del documento | Inglés |

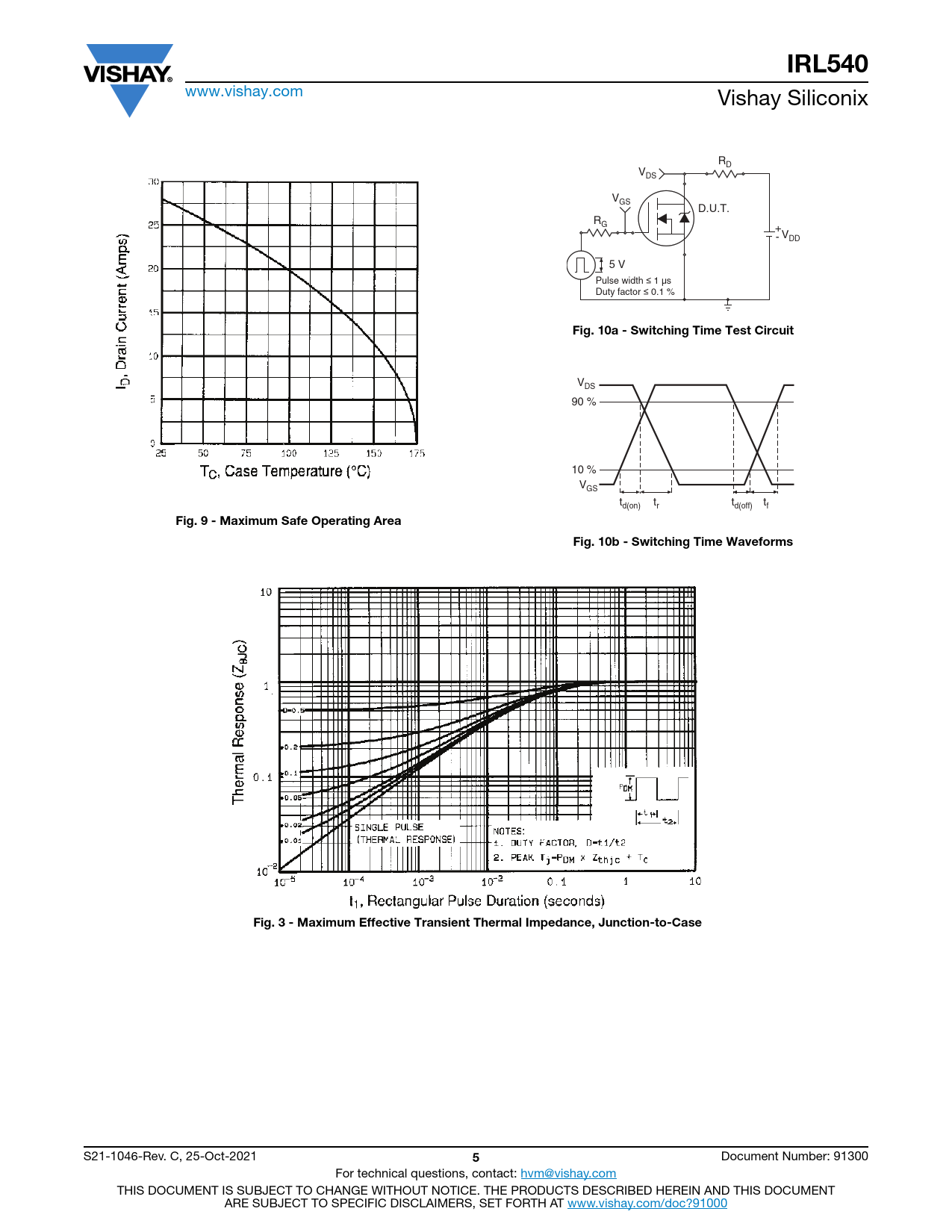

IRL540. Fig. 10a - Switching Time Test Circuit. Fig. 9 - Maximum Safe Operating Area. Fig. 10b - Switching Time Waveforms
Línea de modelo para esta hoja de datos
Versión de texto del documento
IRL540
www.vishay.com Vishay Siliconix RD VDS VGS D.U.T. RG + - VDD 5 V Pulse width ≤ 1 µs Duty factor ≤ 0.1 %
Fig. 10a - Switching Time Test Circuit
VDS 90 % 10 % VGS t t t t d(on) r d(off) f
Fig. 9 - Maximum Safe Operating Area Fig. 10b - Switching Time Waveforms Fig. 3 - Maximum Effective Transient Thermal Impedance, Junction-to-Case
