Philips Semiconductors Product Specification PowerMOS transistor BUK455-60A/B
MECHANICAL DATA

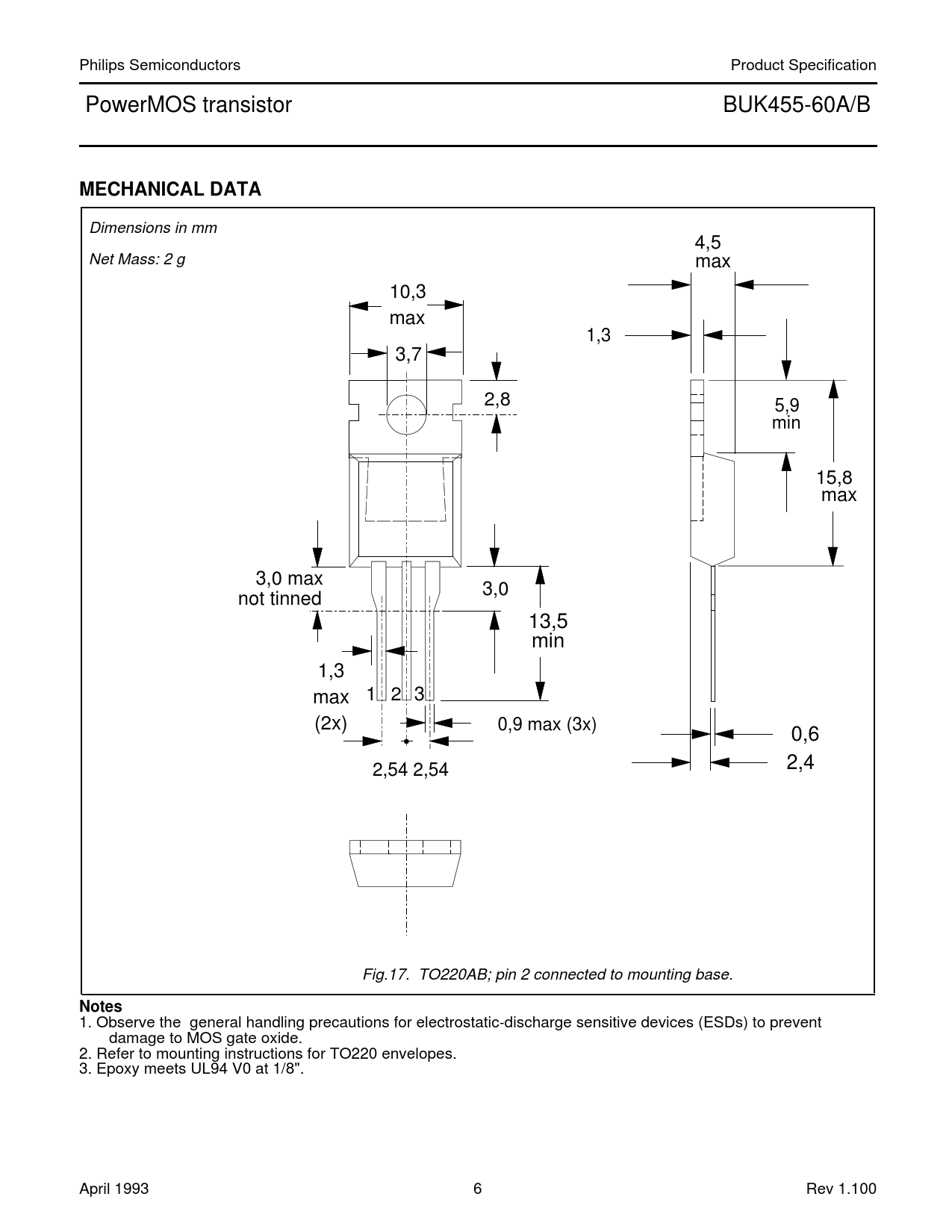

Dimensions in mm 4,5 Net Mass: 2 g max 10,3 max 1,3 3,7 2,8 5,9 min 15,8 max 3,0 max 3,0 not tinned 13,5 min 1,3 max 1 2 3 (2x) 0,9 max (3x) 0,6 2,4 2,54 2,54 Fig.17. TO220AB; pin 2 connected to mounting base.
Notes
1. Observe the general handling precautions for electrostatic-discharge sensitive devices (ESDs) to prevent damage to MOS gate oxide. 2. Refer to mounting instructions for TO220 envelopes. 3. Epoxy meets UL94 V0 at 1/8". April 1993 6 Rev 1.100 Document Outline GENERAL DESCRIPTION QUICK REFERENCE DATA PINNING - TO220AB PIN CONFIGURATION SYMBOL LIMITING VALUES THERMAL RESISTANCES STATIC CHARACTERISTICS DYNAMIC CHARACTERISTICS REVERSE DIODE LIMITING VALUES AND CHARACTERISTICS AVALANCHE LIMITING VALUE MECHANICAL DATA DEFINITIONS LIFE SUPPORT APPLICATIONS
