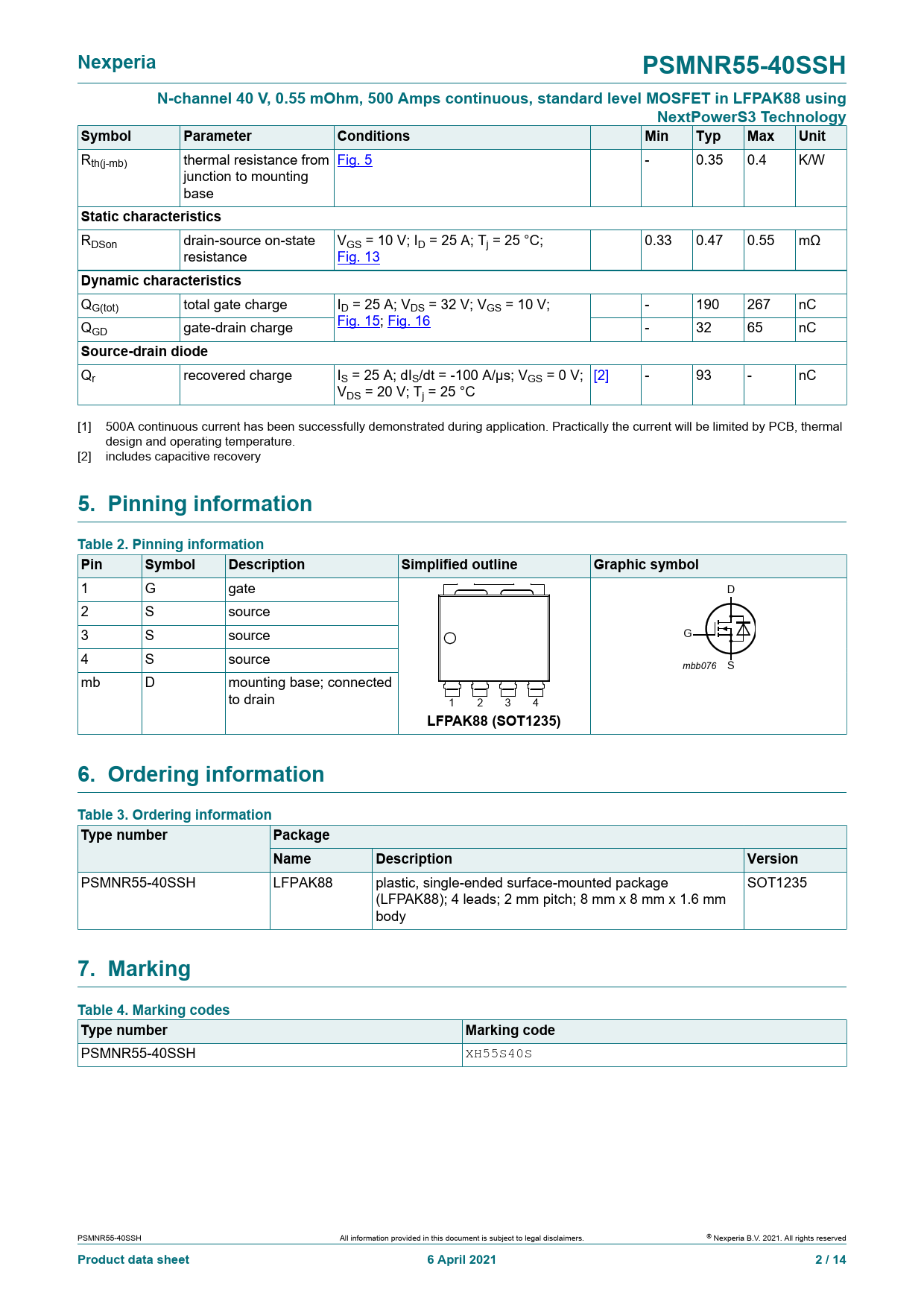

Nexperia PSMNR55-40SSH N-channel 40 V, 0.55 mOhm, 500 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology Symbol Parameter Conditions Min Typ Max Unit
Rth(j-mb) thermal resistance from Fig. 5 - 0.35 0.4 K/W junction to mounting base
Static characteristics
RDSon drain-source on-state VGS = 10 V; ID = 25 A; Tj = 25 °C; 0.33 0.47 0.55 mΩ resistance Fig. 13
Dynamic characteristics
QG(tot) total gate charge ID = 25 A; VDS = 32 V; VGS = 10 V; - 190 267 nC Q Fig. 15; Fig. 16 GD gate-drain charge - 32 65 nC
Source-drain diode
Qr recovered charge IS = 25 A; dIS/dt = -100 A/µs; VGS = 0 V; [2] - 93 - nC VDS = 20 V; Tj = 25 °C [1] 500A continuous current has been successfully demonstrated during application. Practically the current will be limited by PCB, thermal design and operating temperature. [2] includes capacitive recovery
5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 G gate D 2 S source 3 S source G 4 S source mbb076 S mb D mounting base; connected to drain 1 2 3 4
LFPAK88 (SOT1235) 6. Ordering information Table 3. Ordering information Type number Package Name Description Version
PSMNR55-40SSH LFPAK88 plastic, single-ended surface-mounted package SOT1235 (LFPAK88); 4 leads; 2 mm pitch; 8 mm x 8 mm x 1.6 mm body
7. Marking Table 4. Marking codes Type number Marking code
PSMNR55-40SSH XH55S40S PSMNR55-40SSH All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet 6 April 2021 2 / 14
