Datasheet ADG708, ADG709 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | CMOS, 1.8 V to 5.5 V/±2.5 V, 3 Ω Low Voltage 4-/8-Channel Multiplexers |
| Páginas / Página | 20 / 8 — ADG708/ADG709. Data Sheet. B Version. C Version. −40°C to −40°C to. Test … |
| Revisión | E |
| Formato / tamaño de archivo | PDF / 333 Kb |
| Idioma del documento | Inglés |

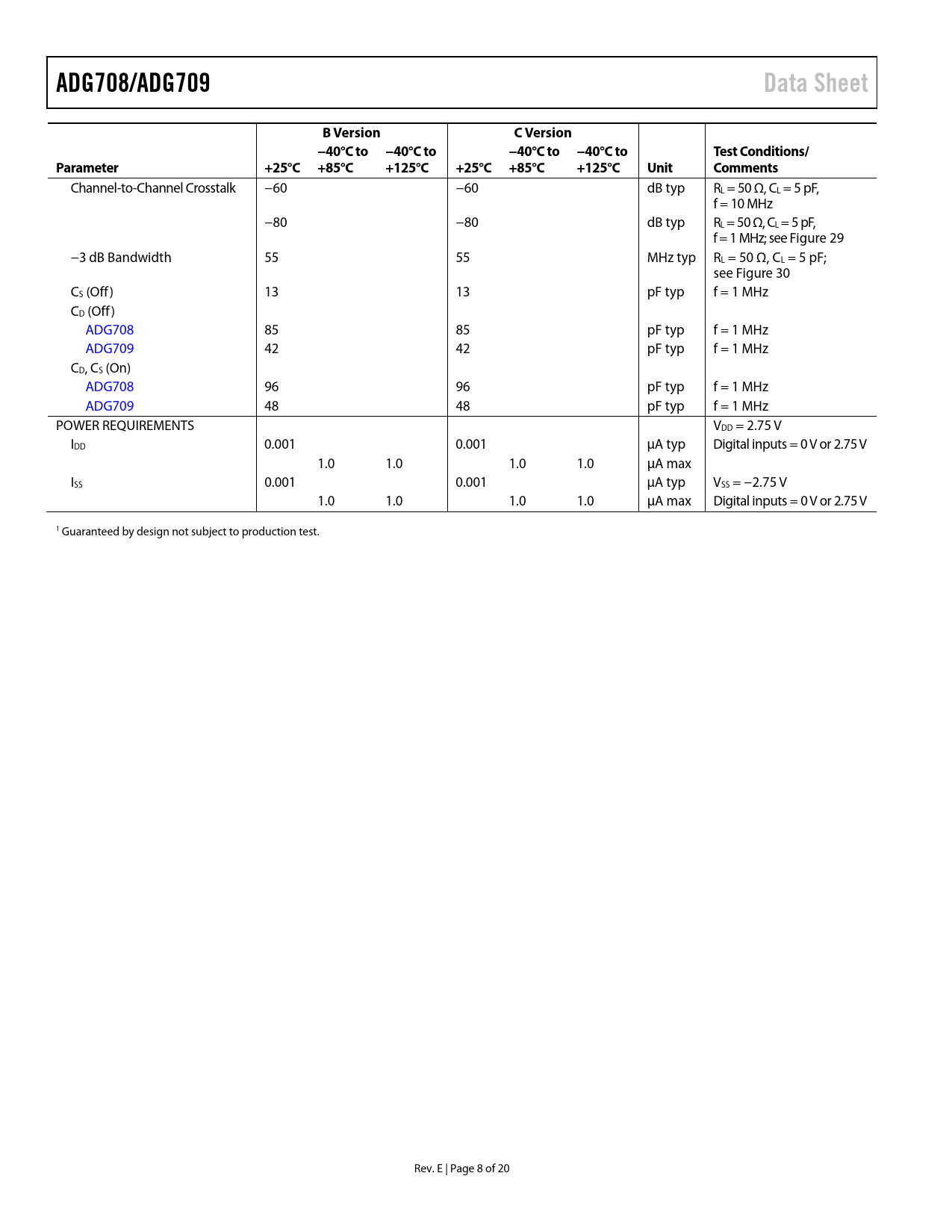

ADG708/ADG709. Data Sheet. B Version. C Version. −40°C to −40°C to. Test Conditions/. Parameter. +25°C +85°C. +125°C. Unit. Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 16 link to page 17
ADG708/ADG709 Data Sheet B Version C Version −40°C to −40°C to −40°C to −40°C to Test Conditions/ Parameter +25°C +85°C +125°C +25°C +85°C +125°C Unit Comments
Channel-to-Channel Crosstalk −60 −60 dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz −80 −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 −3 dB Bandwidth 55 55 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 30 CS (Off) 13 13 pF typ f = 1 MHz CD (Off) ADG708 85 85 pF typ f = 1 MHz ADG709 42 42 pF typ f = 1 MHz CD, CS (On) ADG708 96 96 pF typ f = 1 MHz ADG709 48 48 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 2.75 V IDD 0.001 0.001 μA typ Digital inputs = 0 V or 2.75 V 1.0 1.0 1.0 1.0 μA max ISS 0.001 0.001 μA typ VSS = −2.75 V 1.0 1.0 1.0 1.0 μA max Digital inputs = 0 V or 2.75 V 1 Guaranteed by design not subject to production test. Rev. E | Page 8 of 20 Document Outline Features Applications General Description Functional Block Diagrams Product Highlights Table of Contents Revision History Specifications Dual Supply Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Truth Tables Typical Performance Characteristics Test Circuits Terminology Applications Information Power Supply Sequencing Outline Dimensions Ordering Guide Automotive Products
