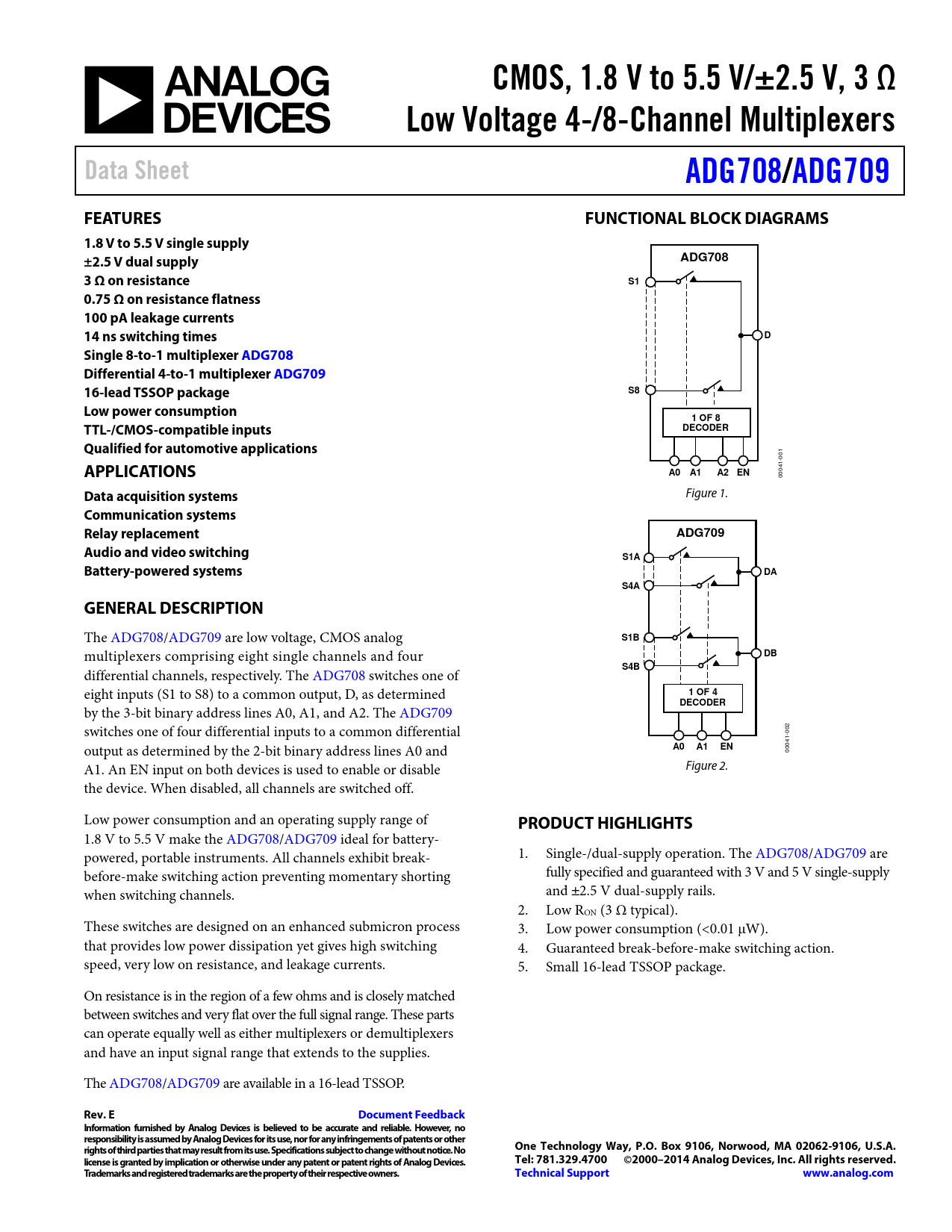

CMOS, 1.8 V to 5.5 V/±2.5 V, 3 Ω Low Voltage 4-/8-Channel Multiplexers Data Sheet ADG708/ ADG709 FEATURES FUNCTIONAL BLOCK DIAGRAMS 1.8 V to 5.5 V single supply ±2.5 V dual supply ADG708 3 Ω on resistance S1 0.75 Ω on resistance flatness 100 pA leakage currents 14 ns switching times D Single 8-to-1 multiplexer ADG708 Differential 4-to-1 multiplexer ADG709 16-lead TSSOP package S8 Low power consumption 1 OF 8 TTL-/CMOS-compatible inputs DECODER Qualified for automotive applications
001
APPLICATIONS A0 A1 A2 EN
00041-
Data acquisition systems
Figure 1.
Communication systems Relay replacement ADG709 Audio and video switching S1A Battery-powered systems DA S4A GENERAL DESCRIPTION
The ADG708/ADG709 are low voltage, CMOS analog
S1B
multiplexers comprising eight single channels and four
DB
differential channels, respectively. The ADG708 switches one of
S4B
eight inputs (S1 to S8) to a common output, D, as determined
1 OF 4 DECODER
by the 3-bit binary address lines A0, A1, and A2. The ADG709 switches one of four differential inputs to a common differential 002 output as determined by the 2-bit binary address lines A0 and
A0 A1 EN
00041- A1. An EN input on both devices is used to enable or disable Figure 2. the device. When disabled, all channels are switched off. Low power consumption and an operating supply range of
PRODUCT HIGHLIGHTS
1.8 V to 5.5 V make the ADG708/ADG709 ideal for battery- powered, portable instruments. All channels exhibit break- 1. Single-/dual-supply operation. The ADG708/ADG709 are before-make switching action preventing momentary shorting fully specified and guaranteed with 3 V and 5 V single-supply when switching channels. and ±2.5 V dual-supply rails. 2. Low RON (3 Ω typical). These switches are designed on an enhanced submicron process 3. Low power consumption (<0.01 μW). that provides low power dissipation yet gives high switching 4. Guaranteed break-before-make switching action. speed, very low on resistance, and leakage currents. 5. Small 16-lead TSSOP package. On resistance is in the region of a few ohms and is closely matched between switches and very flat over the full signal range. These parts can operate equal y wel as either multiplexers or demultiplexers and have an input signal range that extends to the supplies. The ADG708/ADG709 are available in a 16-lead TSSOP.
