Datasheet L6981 (STMicroelectronics) - 7
| Fabricante | STMicroelectronics |
| Descripción | 38 V, 1.5 A synchronous step-down converter with low quiescent current |
| Páginas / Página | 49 / 7 — L6981. Electrical characteristics. Symbol. Parameter. Test Conditions. … |
| Formato / tamaño de archivo | PDF / 3.5 Mb |
| Idioma del documento | Inglés |

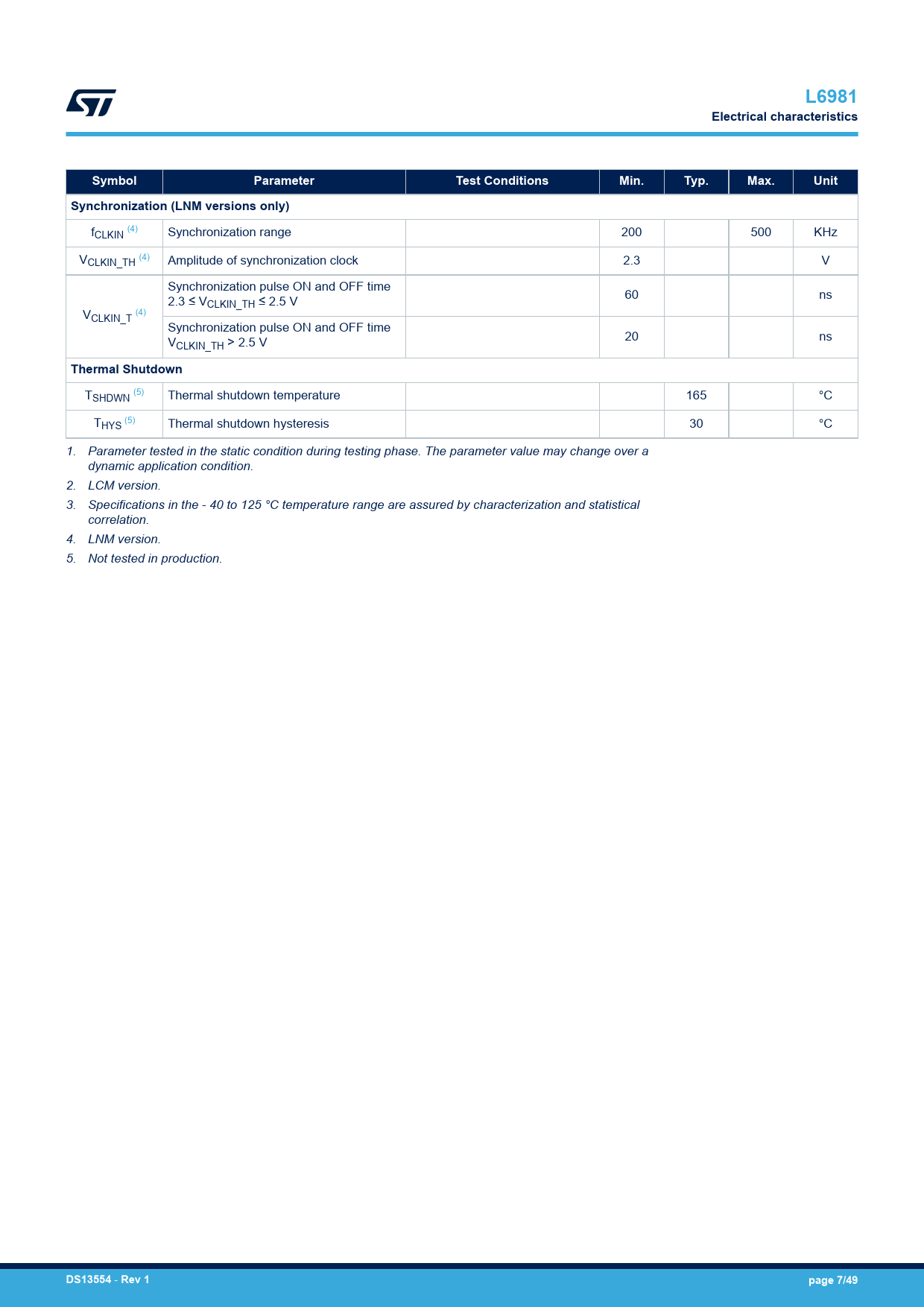

L6981. Electrical characteristics. Symbol. Parameter. Test Conditions. Min. Typ. Max. Unit. Synchronization (LNM versions only)
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 7 link to page 7 link to page 7 link to page 7 link to page 7
L6981 Electrical characteristics Symbol Parameter Test Conditions Min. Typ. Max. Unit Synchronization (LNM versions only)
fCLKIN (4) Synchronization range 200 500 KHz VCLKIN_TH (4) Amplitude of synchronization clock 2.3 V Synchronization pulse ON and OFF time 2.3 ≤ VCLKIN_TH ≤ 2.5 V 60 ns VCLKIN_T (4) Synchronization pulse ON and OFF time VCLKIN_TH > 2.5 V 20 ns
Thermal Shutdown
TSHDWN (5) Thermal shutdown temperature 165 °C T (5) HYS Thermal shutdown hysteresis 30 °C 1. Parameter tested in the static condition during testing phase. The parameter value may change over a dynamic application condition. 2. LCM version. 3. Specifications in the - 40 to 125 °C temperature range are assured by characterization and statistical correlation. 4. LNM version. 5. Not tested in production.
DS13554
-
Rev 1 page 7/49
